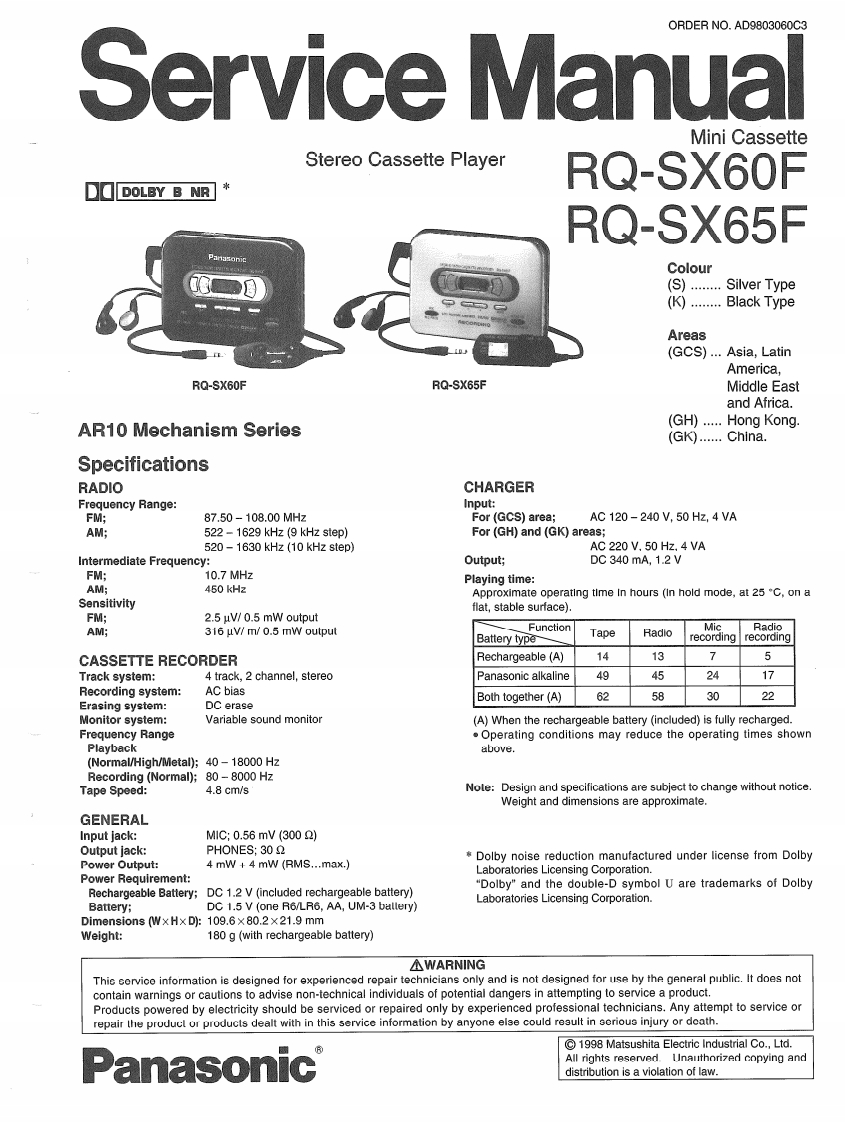

ORDER NO.AD9803060C3Service ManualMini CassetteStereo Cassette PlayerRQ-SX60FDOLBY B NRRQ-SX65FColour(S)…Silver Type(K)..Black TypeAreas(GCS)...Asia,LatinAmerica,RQ-SX60FRQ-SX65FMiddle Eastand Africa.AR10 Mechanism Series(GH)......Hong Kong.(GK).......China.SpecificationsRADIOCHARGERFrequency Range:Input:FM;87.50-108.00MHzFor (GCS)area;AC120-240V,50Hz,4VAAM;522-1629 kHz(9 kHz step)For(GH)and(GK)areas;520-1630 kHz(10 kHz step)AC 220 V,50 Hz,4 VAIntermediate Frequency:Output;DC 340 mA,1.2 VFM:10.7 MHzPlaying time:AM:450 kHzApproximate operating time in hours (In hold mode,at 25'C,on aSensitivityflat,stable surface).FM;2.5 uV/0.5 mW outputAM;316uV∥m/0.5 nW outputFunctionMicRadioBattery typeTapeRadiorecording recordingCASSETTE RECORDERRechargeable (A)14135Track system:4 track,2 channel,stereoPanasonic alkaline49452417Recording system:AC biasBoth together(A)62583022Erasing system:DC eraseMonitor system:Variable sound monitor(A)When the rechargeable battery (included)is fully recharged.Frequency RangeOperating conditions may reduce the operating times shownPlaybackabove.(Normal/High/Metal):40-18000 HzRecording (Normal);80-8000 HzTape Speed:4.8 cm/sNole:Design and specifications are subject to change without notice.Weight and dimensions are approximate.GENERALInput jack:M1C:0.56mV(3002)Output jack:PHONES:30Power Output:4 mW +4 mW (RMS...max.)*Dolby noise reduction manufactured under license from DolbyLaboratories Licensing Corporation.Power Requirement:Rechargeable Battery;DC 1.2 V(included rechargeable battery)"Dolby"and the double-D symbol U are trademarks of DolbyLaboratories Licensing Corporation.Battery;DC 1.5 V (one R6/LR6,AA,UM-3 baltery)Dimension8 WxHxD:109.6×80.2×21.9mmWeight:180 g(with rechargeable battery)△WARNINGThic eervice information ie designed for experienced repair technicians only and is not designed for use by the general public.It does notcontain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.Products powered by electricity should be serviced or repaired only by experienced professional technicians.Any attempt to service orrepair the pruduct or products dealt with in this service information by anyone else could reault in serious injury or death.1998 Matsushita Electric Industrial Co.,Ltd.PanasonicAll rights reserved.Unauthorized copying anddistribution is a violation of law.
