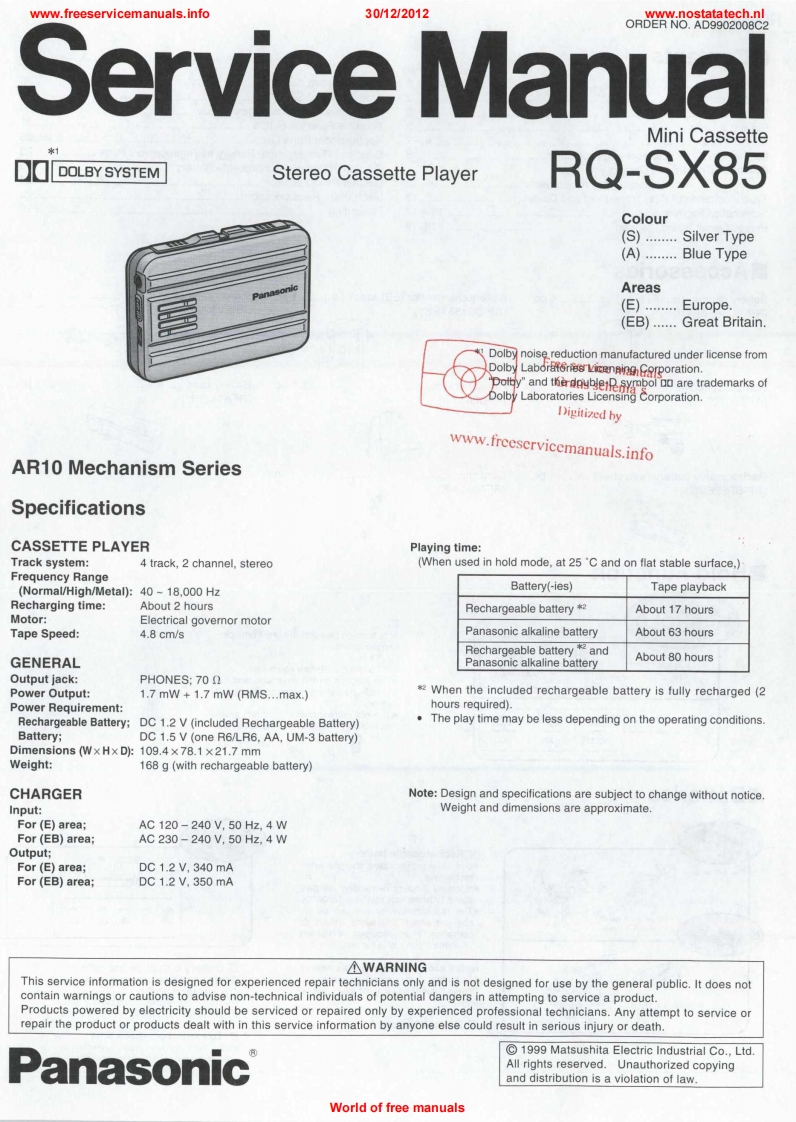

www.freeservicemanuals.info30/12/2012www.nostatatech.nlService ManualORDER NO,AD9902008C2Mini Cassette1DOLBY SYSTEMStereo Cassette PlayerRQ-SX85Colour(S).......Silver Type(A)........Blue TypeAreas(E)…Europe(EB)…Great Britain.Dolby noise reduction manufactured under license fromDolbLabor vicning Gorporation.Dotbyand thdybesymbol o are trademarks ofaboratories Licensing Corporation.Digitized bywww.frceservicemanuals.infoAR10 Mechanism SeriesSpecificationsCASSETTE PLAYERPlaying time:Track system:4 track,2 channel,stereo(When used in hold mode,at 25'C and on flat stable surface,)Frequency Range(Normal/High/Metal):40-18,000 HzBattery(-ies】Tape playbackRecharging time:About 2 hoursRechargeable battery*2About 17 hoursMotor:Electrical goveror motorTape Speed:4.8 cm/sPanasonic alkaline batteryAbout 63 hoursRechargeable battery andGENERALPanasonic alkaline batteryAbout 80 hoursOutput jack:PHONES:700Power Output:1.7 mW 1.7 mW (RMS...max.)*2When the included rechargeable battery is fully recharged(2Power Requirement:hours required).Rechargeable Battery;DC 1.2 V(included Rechargeable Battery)The play time may be less depending on the operating conditions.Battery;DC 1.5 V (one R6/LR6,AA,UM-3 battery)Dimensions(W×H×Dy109.4×78.1×21.7mmWeight:168 g(with rechargeable battery)CHARGERNote:Design and specifications are subject to change without notice.Input:Weight and dimensions are approximate.For(E)area;AC120-240V,50Hz,4WFor (EB)area:AC230-240V,50Hz,4WOutput;For(E)area;DC 1.2 V,340 mAFor(EB)area;DC 1.2 V,350 mAWARNINGThis service information is designed for experienced repair technicians only and is not designed for use by the general public.It does notcontain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.Products powered by electricity should be serviced or repaired only by experienced professional technicians.Any attempt to service orrepair the product or products dealt with in this service information by anyone else could result in serious injury or death.Panasonic1999 Matsushita Electric Industrial Co.,LtdAll rights reserved.Unauthorized copyingand distribution is a violation of law.World of free manuals
