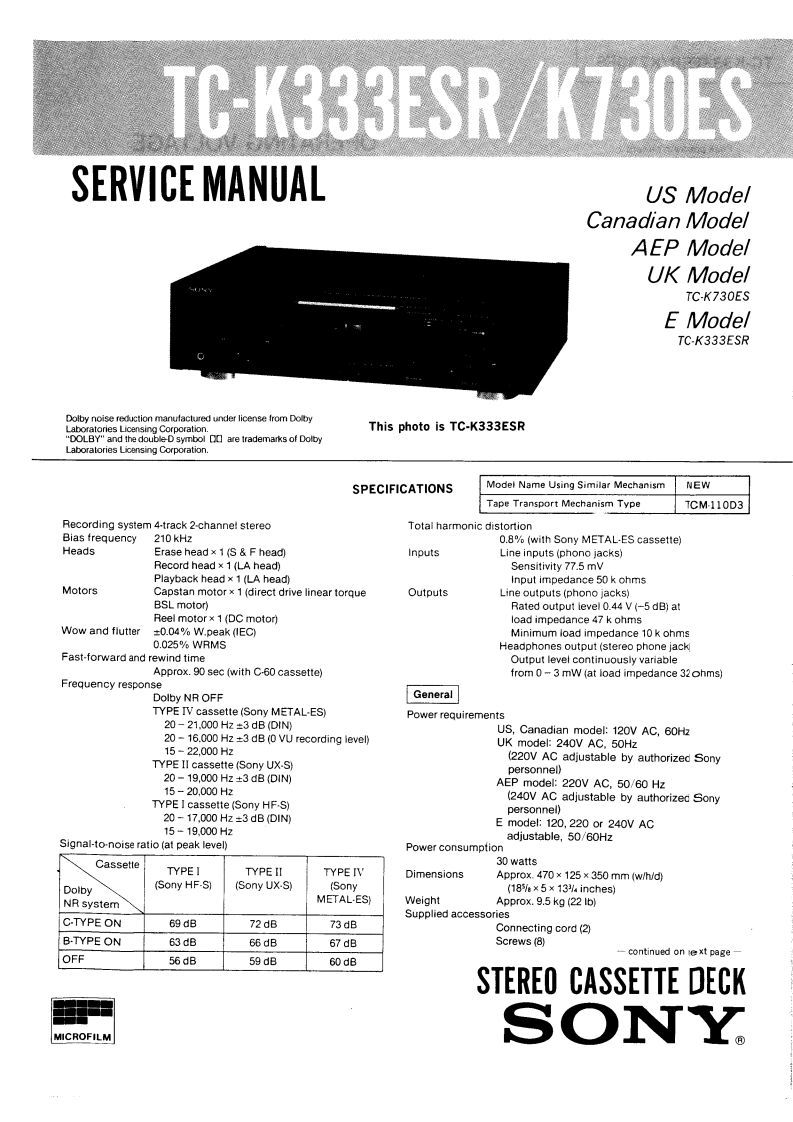

TC-K333ESR/K730ESSERVICE MANUALUS ModelCanadian ModelAEP ModelUK ModelTC-K730ESE ModelTC-K333ESRDolby noise reduction manulactured under license from DolbyLaboratories Licensing CorporationThis photo is TC-K333ESR'DOLBY"and the double-D symbol are trademarks of DolbyLaboratories Licensing Corporation.SPECIFICATIONSModel Name Using Similar MechanismNEWTape Transport Mechanism TypeTCM-110D3Recording system 4-track 2-channe!stereoTotal harmonic distortionBias frequency210kH20.8%(with Sony METAL-ES cassette)HeadsErase head x 1(S F head)InputsLine inputs (phono jacks)Record head×1(A headSensitivity 77.5 mVPlayback head x 1 (LA head)Input impedance 50 k ohmsMotorsCapstan motor x 1(direct drive linear torqueOutputsLine outputs (phono jacks)BSL motor)Rated output level 0.44 V(-5 dB)atReel motor x 1 (DC motor)load impedance 47 k ohmsWow and flutter±0.04%W.peak (IEC)Minimum load impedance 10 k ohms0.025%WRMSHeadphones output(stereo phone jackFast-forward and rewind timeOutput level continuously variableApprox.90 sec (with C-60 cassette)from 0-3 mW (at load impedance 32ohms)Frequency responseDolby NR OFFGeneralTYPE IV cassette (Sony METAL-ES)Power requirements20-21.000Hz±3dB(D920-16.000 Hz =3 dB (0 VU recording level)US,Canadian model:120V AC,60H215-22.000HzUK model:240V AC,50HzTYPE II cassette(Sony UX-S)(220V AC adjustable by authorized Sonypersonnel)20-19.000Hz±3dB(DINAEP model:220V AC,50/60 Hz15-20,000HzTYPE I cassette (Sony HF.S)(240V AC adjustable by authorized Sonypersonnel)20-17.,000H2±3 dB (DIN15-19.000H2E model:120,220 or 240V ACSignal-to-noise ratio(at peak level)adjustable,50/60HzPower consumptionCassette30 wattsTYPE ITYPE IITYPE IVDimensionsApprox.470×125×350mm(wh/dDolby(Sony HF-S)(Sony UX-S)(Sony(18×5×134 inches)NR systemMETAL·ESWeightApprox.9.5 kg (22 lb)C-TYPE ONSupplied accessories69 dB72 dB73 dBConnecting cord(2)B.TYPE ON63 dB66dB67dBScrews⑧OFFcontinued on ext page56 dB59 dB60 dBSTEREO CASSETTE DECKMICROFILMSONY
