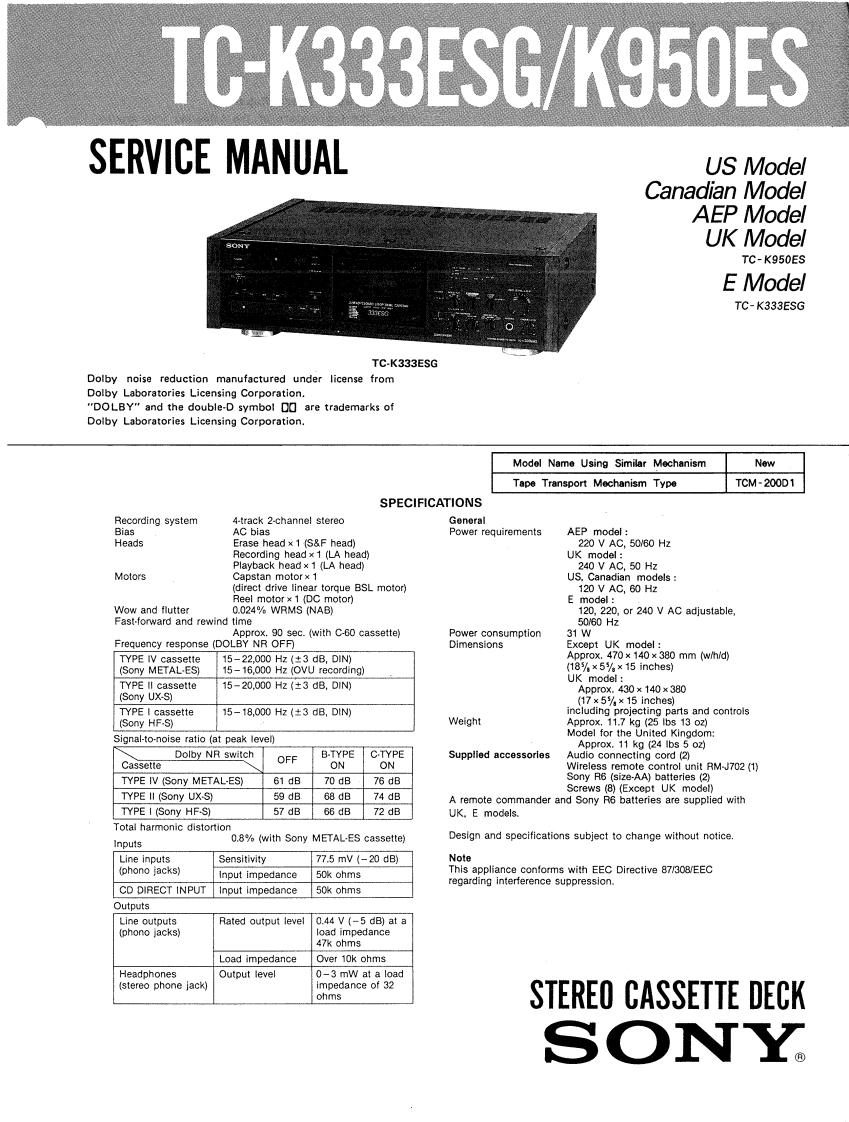

TC-K333ESG/K950ESSERVICE MANUALUS ModelCanadian ModelAEP ModelUK ModelTC-K950ESE ModelTC-K333ESGTC-K333ESGDolby noise reduction manufactured under license fromDolby Laboratories Licensing Corporation."DOLBY"and the double-D symbol Do are trademarks ofDolby Laboratories Licensing Corporation.Model Name Using Similar MechanismNewTape Transport Mechanism TypeTCM-200D1SPECIFICATIONSRecording system4-track 2-channel stereoGeneralBiasAC biasPower requirementsAEP modelHeadsErase head x 1 (S&F head)220VAC.5060HzRecording head x 1 (LA head)UK model:Playback head x 1 (LA head)240 V AC,50 HzMotorsCapstan motor x 1US.Canadian models(direct drive linear torque BSL motor)120 V AC,60 HzReel motor×1 DC motoE model:Wow and flutte0.024%WRMS (NAB)120,220,or 240 V AC adjustableFast-forward and rewind time5060HzApprox.90 sec.(with C-60 cassette)Power consumption31WFrequency response(DOLBY NR OFF)DimensionsExcept UK modelTYPE IV cassette15-22.000Hz(±3dB,DIN0Approx.470×140×380 mm (wihid)(Sony METAL-ES)15-16,000 Hz (OVU recording)(18/×5%×15 inches)TYPE II cassetteUK model:15-20,000Hz(±3dB,DN)(Sony UX-S)ineTYPE I cassette15-18,000Hz(±3dB,DNincluding projecting parts and controls(Sony HF-S)WeightApprox.11.7 kg (25 Ibs 13 oz)Signal-to-noise ratio (at peak level)Model for the United Kingdom:Approx.11 kg (24 Ibs 5 oz)Dolby NR switchB-TYPEC.TYPESupplied accessoriesAudio connecting cord (2)CassetteOFFONONWireless remote control unit RM-J702 (1)TYPE IV (Sony METAL-ES)61 dB70 dB76 dBSony R6 (size-AA)batteries (2)Screws (8)(Except UK model)TYPE II (Sony UX-S)59 dB68 dB74 dBA remote commander and Sony R6 batteries are supplied withTYPE I (Sony HF.S)57 dB66 dB72 dBUK.E models.Total harmonic distortionInputs0.8%(with Sony METAL-ES cassette)Design and specifications subject to change without notice.Line inputsSensitivity775mV(-20dB)Note(phono jacks)Input impedance50k ohmsThis appliance conforms with EEC Directive 87/308/EECregarding interference suppression.CD DIRECT INPUTInput impedance50k ohmsOutputsLine outputsRated output level0.44 V(-5 dB)at a(phono jacks)load impedance47k ohmsLoad impedanceOver 10k ohmsHeadphonesOutput level0-3 mW at a load(stereo phone jack)impedance of 32ohmsSTEREO CASSETTE DECKSONY.
