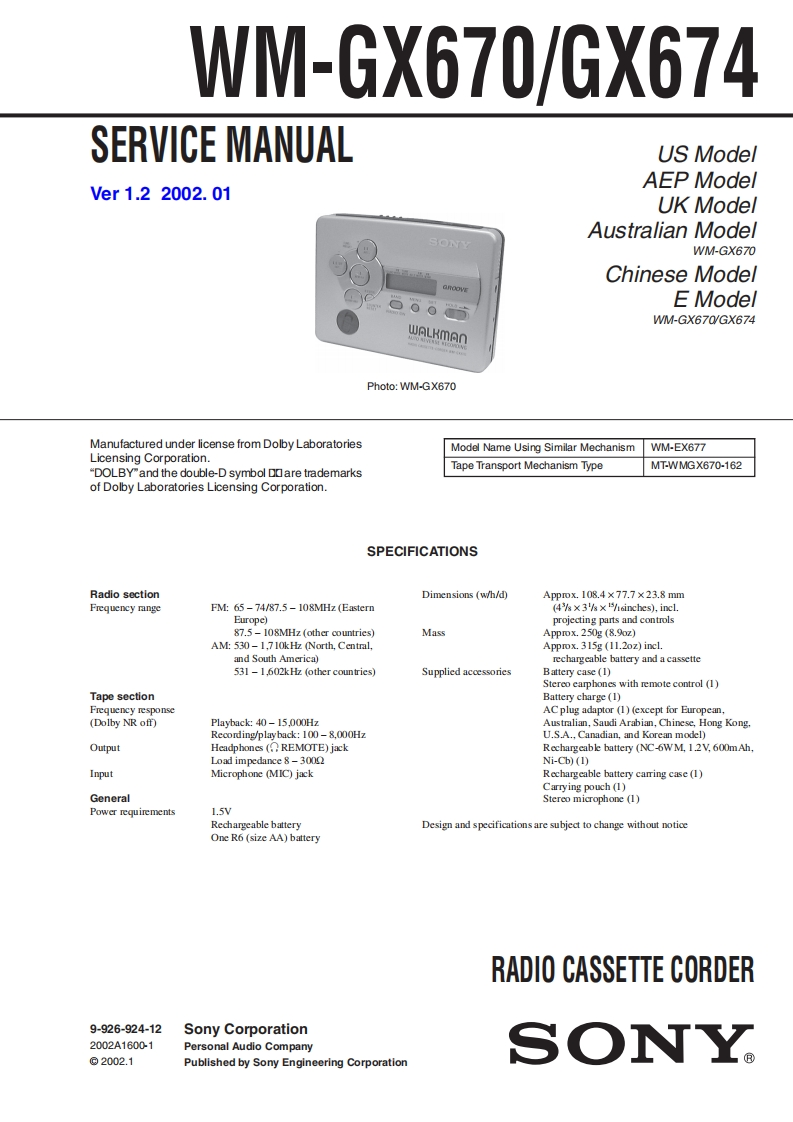

WM-GX670/GX674SERVICE MANUALUS ModelAEP ModelVer1.22002.01UK ModelAustralian ModelWM-GX670Chinese ModelEModelWM-GX670GX674WALKMAnPhoto:WM-GX670Manufactured under license from Dolby LaboratoriesModel Name Using Similar MechanismWM-EX677Licensing Corporation."DOLBY"and the double-D symbol DOare trademarksTape Transport Mechanism TypeMT-WMGX670-162of Dolby Laboratories Licensing Corporation.SPECIFICATIONSRadio sectionDimensions (wh/d)Approx.108.4×77.7×23.8mmFrequency rangeFM:65-74/87.5-108MHz (Eastern(4%x3sxsinches),incl.Europe)projecting parts and controls87.5-108MHz (other countries)MassApprox.250g (8.9oz)AM:530-1,710kHz (North,Central.Approx.315g (11.2oz)incl.and South America)rechargeable battery and a cassette531-1,602kHz (other countries)Supplied accessoriesBattery case (1)Stereo earphones with remote control (1)Tape sectionBattery charge (1)Frequency responseAC plug adaptor (1)(except for European,(Dolby NR off)Playback:40-15,000HzAustralian,Saudi Arabian,Chinese,Hong Kong.Recording/play back:100-8,000HzU.S.A.,Canadian,and Korean model)OutputHeadphones REMOTE)jackRechargeable battery (NC-6WM,1.2V,600mAh.Load impedance 8-3000Ni-Cb)(1)InputMicrophone (MIC)jackRechargeable battery carring case(1)Carrying pouch (1)GeneralStereo microphone (1)Power requirements1.5vRechargeable batteryDesign and specifications are subject to change without noticeOne R6 (size AA)batteryRADIO CASSETTE CORDER9-926-924-12Sony Corporation2002A16001Personal Audio Company©2002.1SONYPublished by Sony Engineering Corporation
