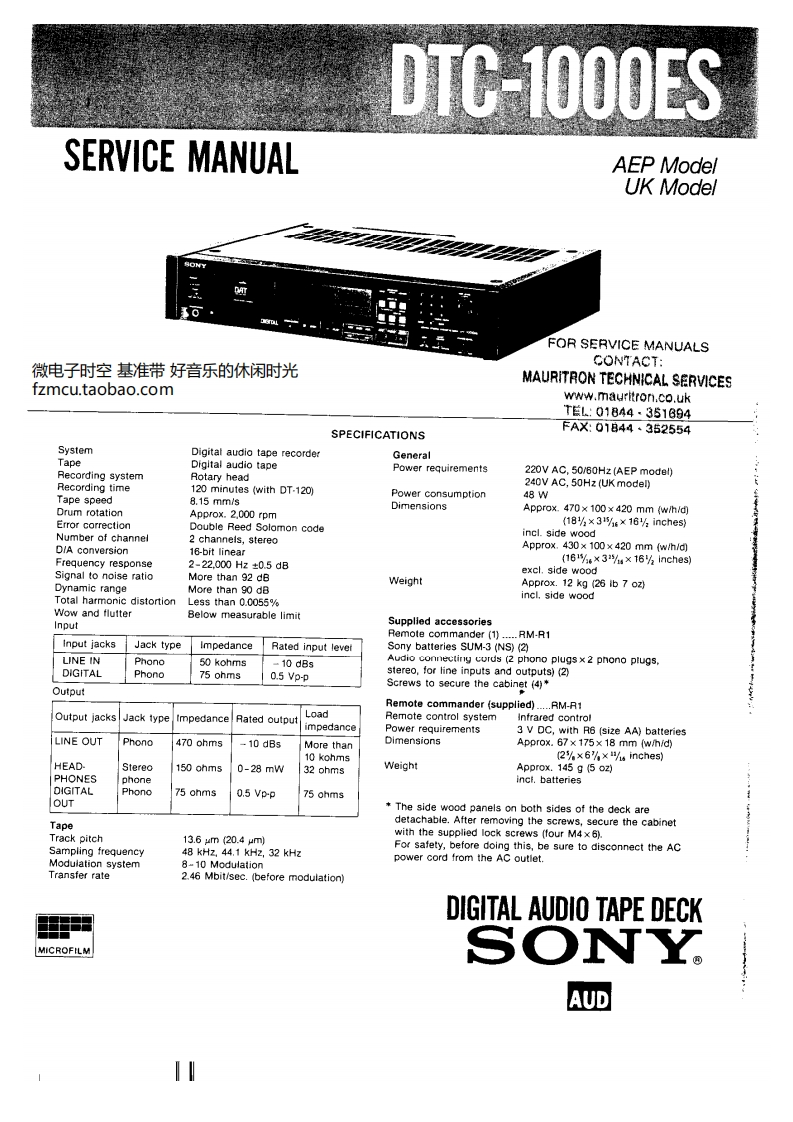

9T6-1000ESSERVICE MANUALAEP ModelUK ModelFOR SERVICE MANUALS微电子时空基准带好音乐的休闲时光CONTACT:fzmcu.taobao.comMAURITRON TECHNICAL SERVICESwww.mauritron.co.ukT套L:01844·351694SPECIFICATIONSFAX:01844·352554SystemDigital audio tape recorderGeneralTapeDigital audio tapeRecording systemPower requirementsRotary head220V AC,50/60Hz(AEP model)Recording time120 minutes (with DT-120)240V AC,50Hz (UK model)Tape speedPower consumption48W8.15mm/sDrum rotationDimensionsApprox.2.000 rpmApprox.470×100×420mmwh/间Error correctionDouble Reed Solomon code(18⅓×3ys×16 inches)Number of channel2 channels,stereoincl.side woodDIA conversion16-bit linearApprox..430×100×420mmwh/间Frequency response2-22.000Hz±0.5dB(161y×32%s×16 inches)Signal to noise ratioexcl.side woodMore than 92 dBDynamic rangeWeightMore than 90 dBApprox.12 kg (26 ib 7 oz)Total harmonic distortionLess than 0.0055%incl.side woodWow and flutterBelow measurable limitnputSupplied accessoriesRemote commander (1).....RM-R1Input jacksJack typeImpedanceRated input leverSony batteries SUM-3 (NS)(2)LINE INPhono50 kohms-10 dBsAudio connecting cords (2 phono plugs x 2 phono plugs,DIGITALPhono75 ohms0.5 Vp-pstereo,for line inputs and outputs)(2)OutputScrews to secure the cabinet (4)Remote commander (supplied)....RM-R1Output jacksJack typeImpedanceRated outputLoadRemote control systemInfrared controlimpedancePower requirements3 V DC,with R6 (size AA)batteriesLINE OUTPhono470 ohms-10 dBsMore thanDimensionsApprox..67×175×18 mm (w/hid)10 kohms2/×6%×"%inches)HEAD-Stereo150 ohms0-28mW32 ohmsWeightApprox.145 g (5 oz)PHONESphoneinct.batteriesDIGITALPhono750.5 Vp-p75 ohmsOUTThe side wood panels on both sides of the deck areTapedetachable.After removing the screws,secure the cabinetTrack pitch13.6m(20.4μmwith the supplied lock screws (four M4x6).Sampling frequency48 kHz,44.1 kHz,32 kHzFor safety,before doing this,be sure to disconnect the ACModulation system8-10 Modulationpower cord from the AC outlet.Transter rate2.46 Mbit/sec.(before modulation)DIGITAL AUDIO TAPE DECKMICROFILMSONYAUD11
