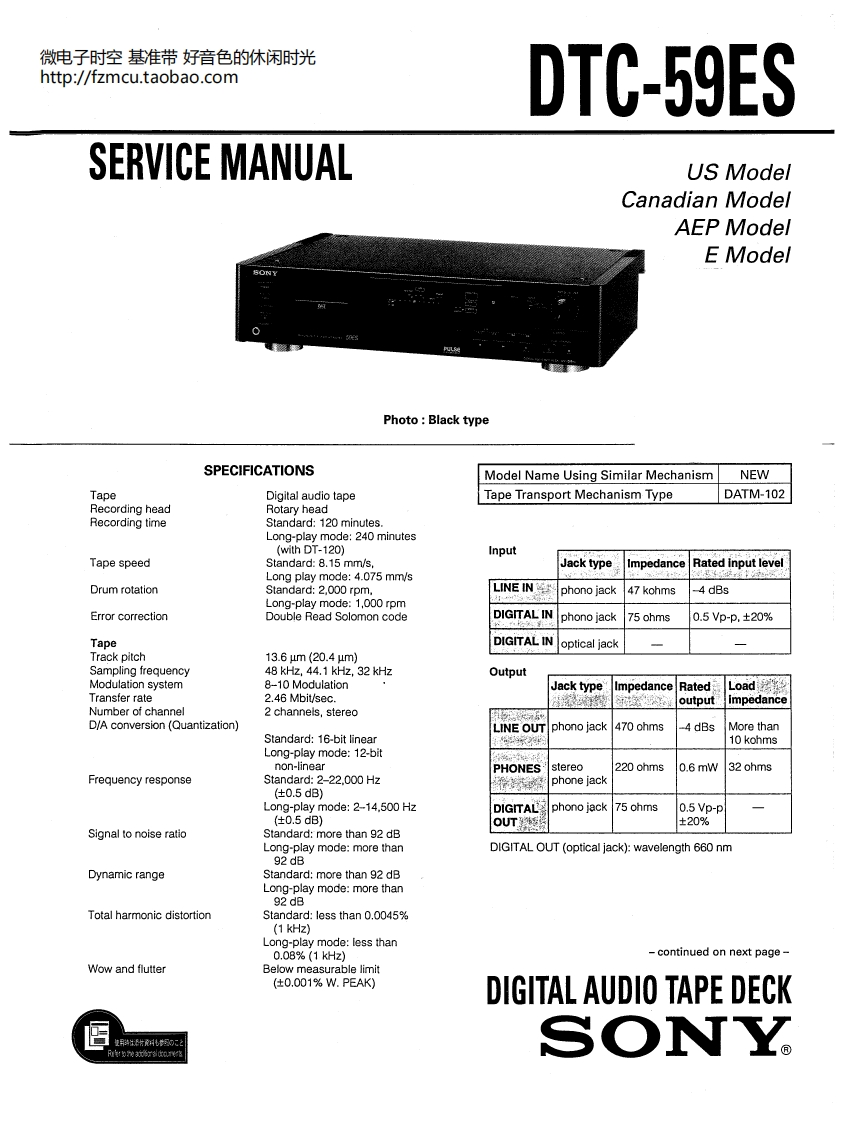

微电子时空基准带好音色的休闲时光http://fzmcu.taobao.comDTC-59ESSERVICE MANUALUS ModelCanadian ModelAEP ModelEModelPhoto:Black typeSPECIFICATIONSModel Name Using Similar MechanismNEWTapeDigital audio tapeTape Transport Mechanism TypeDATM-102Recording headRotary headRecording timeStandard:120 minutes.Long-play mode:240 minutes(with DT-120)InputTape speedStandard:8.15 mm/sJack typeImpedanceRated input leveLong play mode:4.075 mm/sDrum rotationStandard:2,000 rpm.LINE INphono jack47 kohms4 dBsLong-play mode:1,000 rpmError correctionDouble Read Solomon codeDIGITAL INphono jack75 ohms0.5Vp-p.±20%TapeDIGITAL INoptical jackTrack pitch13.6山m(20.4μm)Sampling frequency48 kHz,44.1 kHz,32 kHzOutputModulation system8-10 ModulationJack typeImpedanceRatedLoadTransfer rate2.46 Mbit/sec.家outputimpedanceNumber of channel2 channeis,stereoD/A conversion (Quantization)LINE OUTphono jack470 chms4 dBsMore thanStandard:16-bit linear10 kohmsLong-play mode:12-bitnon-linearPHONESstereo220 ohms0.6mw32 ohmsFrequency responseStandard:2-22.000 Hzphone jack(±0.5dB)Long-play mode:2-14.500 HzDIGITALphono jack75 ohms0.5Vp-p(±0.5dB)OUT±20%Signal to noise ratioStandard:more than 92 dBLong-play mode:more thanDIGITAL OUT (optical jack):wavelength 660 nm92 dBDynamic rangeStandard:more than 92 dBLong-play mode:more than92 dBTotal harmonic distortionStandard:less than 0.0045%(1kHz)Long-play mode:less than0.08%(1kHz)continued on next page-Wow and flutterBelow measurable limit(±0.001%W.PEAK)DIGITAL AUDIO TAPE DECK线时用灯SONY
