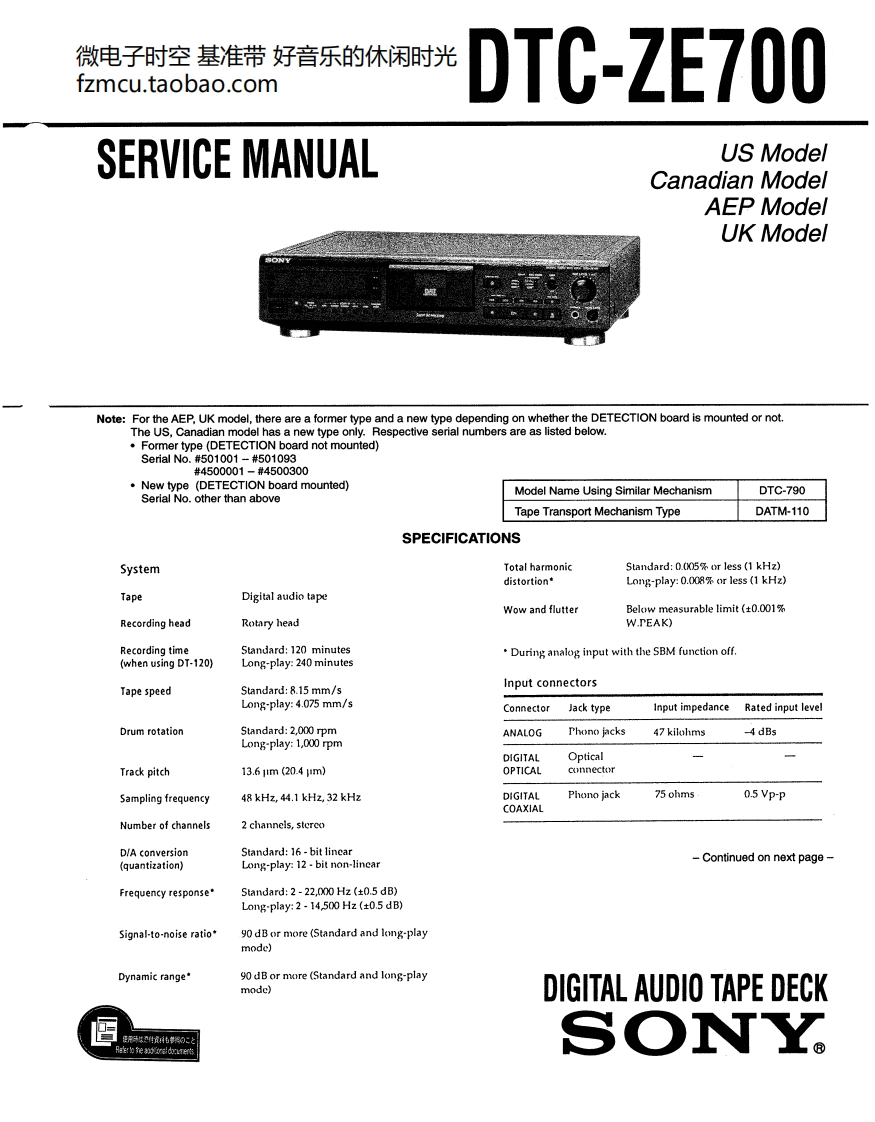

微电子时空基准带好音乐的休闲时光fzmcu.taobao.comDTC-ZE700SERVICE MANUALUS ModelCanadian ModelAEP ModelUK ModelNote:For the AEP.UK model,there are a former type and a new type depending on whether the DETECTION board is mounted or not.The US,Canadian model has a new type only.Respective serial numbers are as listed below.Former type(DETECTION board not mounted)Serial No.#501001-#501093#4500001-#4500300New type (DETECTION board mounted)Model Name Using Similar MechanismDTC-790Serial No.other than aboveTape Transport Mechanism TypeDATM-110SPECIFICATIONSSystemTotal harmonicStandard:0.05%or less (1 kHz)distortion*Long-play:0.008%or less (1 kHz)TapeDigital audio tapeWow and flutterBelow measurable limit (t0.001Recording headRotary headW.PEAK)Recording timeStandard:120 minutesDuring analog input with the SBM function off.(when using DT-120)Long-play:240 minutesTape speedStandard:8.15 mm/sInput connectorsLong-play:4.075 mm/sConnectorJack typeInput impedance Rated input levelDrum rotationStandard:2,000 rpmANALOGPhono jacks47 kilohms-4 dBsLong-play:1,000 rpmDIGITALOpticalTrack pitch13.61tm(20.4m)OPTICALconnectorSampling frequency48 kHz,44.1 kHz,32 kHzDIGITALPhono jack75 ohms0.5 VP-PCOAXIALNumber of channels2 channels,stercoD/A conversionStandard:16-bit linear(quantization)Long-play:12.bit non-linearContinued on next page-Frequency responseStandard:2-22,000 Hz (t0.5 dB)Long-play:2-14,500 Hz (+0.5 dB)Signal-to-noise ratio"90 dBor more(Standard and long-playmode)Dynamic range"90 dB or more (Standard and long-playmode)DIGITAL AUDIO TAPE DECKSONY
