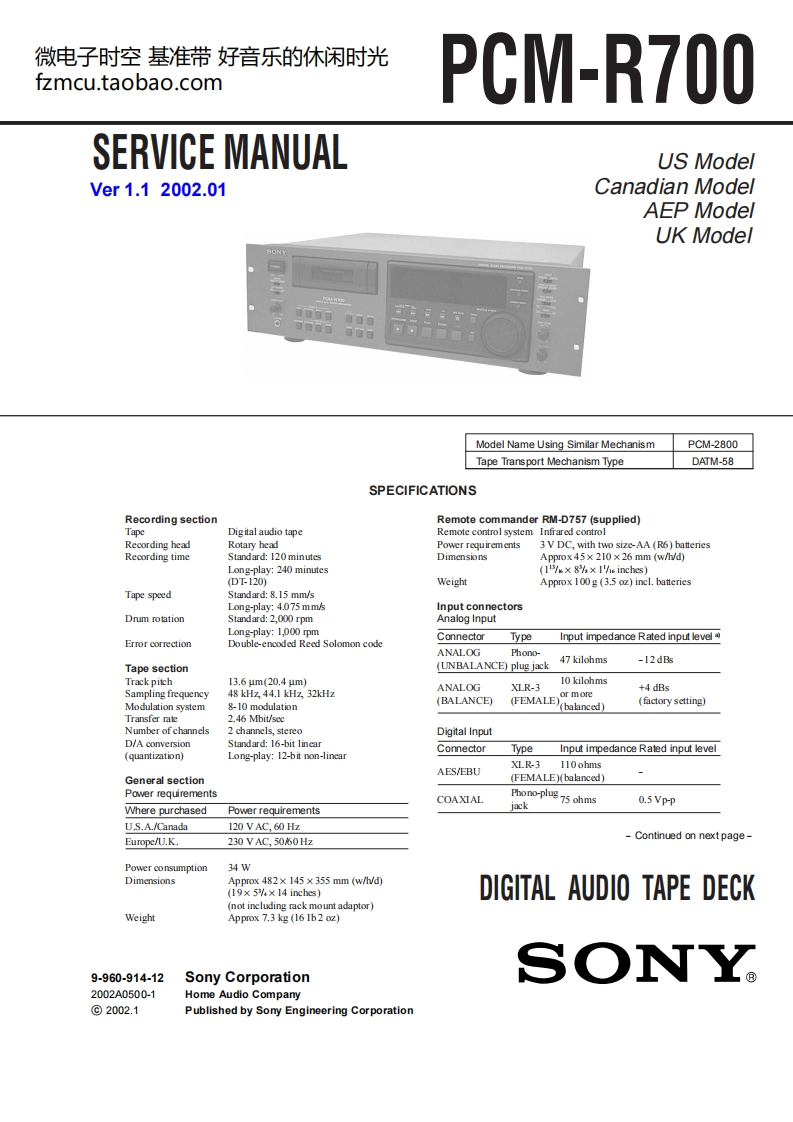

微电子时空基准带好音乐的休闲时光fzmcu.taobao.comPCM-R700SERVICE MANUALUS ModelVer1.12002.01Canadian ModelAEP ModelUK ModelModel Name Using Similar MechanismPCM-2800Tape Transport Mechanism TypeDATM-58SPECIFICATIONSRecording sectionRemote commander RM-D757 (supplied)TapeDigital audio tapeRemote control system Infrared controlRecording headRotary headPower requirements3 V DC,with two size-AA (R6)batteriesRecording timeStandard:120 minutesDimensionsApprox 45x 210 x 26 mm (w/h/d)Long-play:240 minutes(I/s×8/×1'/s inches)(DT-120)WeightApprox 100g (3.5 oz)incl.batteriesTape speedStandard:8.15 mm/sLong-play:4.075 mm/sInput connectorsDrum rotationStandard:2,000 rpmAnalog InputLong-play:1,000 rpmDouble-encoded Reed Solomon codeConnectorTypeInput impedance Rated input levelError correctionANALOGPhono-Tape section(UNBALANCE)plug jack47 kilohms-12dBsTrack pitch13.6m(20.4m)10 kilohmsANALOGXLR-348 kHz 44.1 kHz 32kHz+4 dBsSampling frequencyModulation system(BALANCE)8-10 modulation(FEMALE)or more(balanced)(factory setting)Transfer rate2.46 Mbit/secNumber of channels2 channels.stereoDigital InputD/A conversionStandard:16-bit linearLong-play:12-bit non-lincarConnectorTypeInput impedance Rated input level(quantization)XLR-3110ohmsAES/EBUGeneral section(FEMALE)(balanced)Power requirementsCOAXIALPhono-plug75 ohmsjack0.5 Vp-pWhere purchasedPower requirementsU.S.A./Canada120 V AC,60 HzEurope/U.K.230VAC,50点0HzContinued on next page-Power consumption34WDimensionsApprox482×l45×355mm(w/h/d(19xx14 inches)DIGITAL AUDIO TAPE DECK(not including rack mount adaptor)WeightApprox 7.3 kg (16 Ib2 oz)9-960-914-12Sony CorporationSONY2002A0500-1Home Audio Company©2002.1Published by Sony Engineering Corporation
