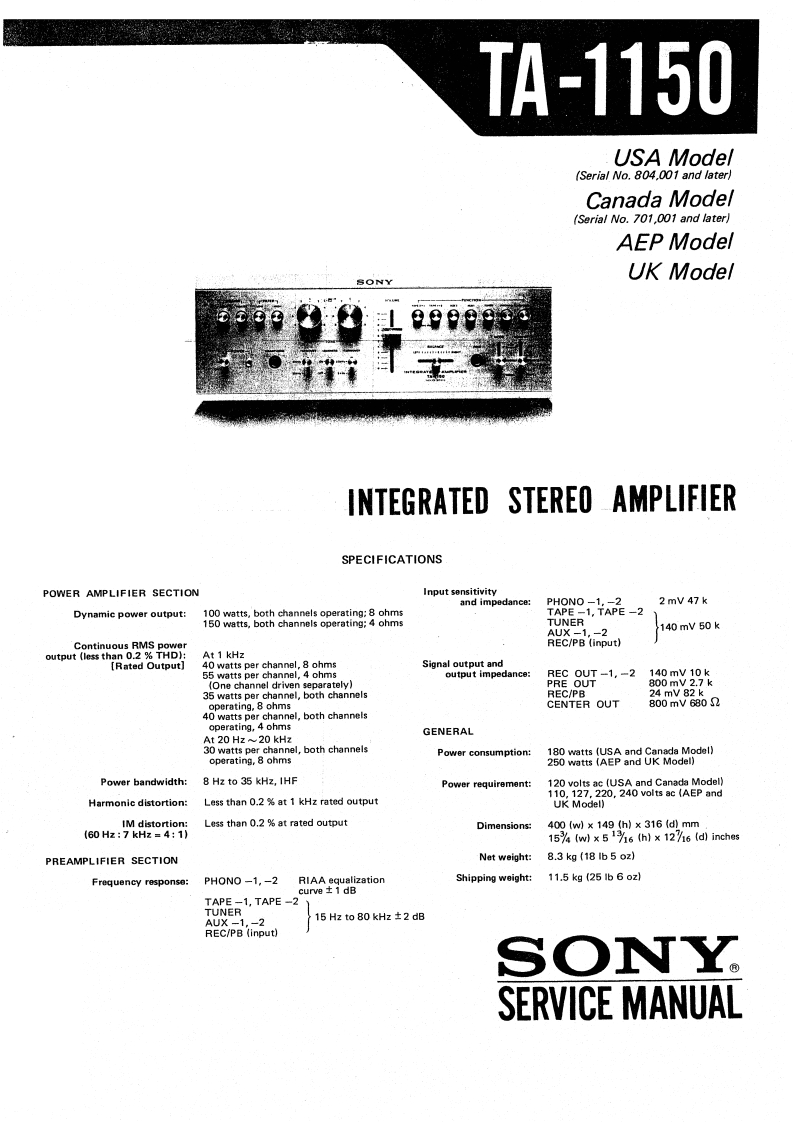

TA-1150USA Model(Serial No.804,001 and laterCanada Model(Serial No.701,001 and later)AEP ModelSONYUK ModelINTEGRATED STEREO AMPLIFIERSPECIFICATIONSPOWER AMPLIFIER SECTIONInput sensitivityand impedance:PH0N0-1,-22mV47 kDynamic power output:100 watts,both channels operating:8 ohmsTAPE -1,TAPE -2150 watts,both channels operating;4 ohmsTUNERAUX-1.-2140mV50kContinuous RMS powerREC/PB (input)output (less than 0.2 THD):At 1 kHz[Rated Output]40 watts per channel,8 ohmsSignal output and55 watts per channel,4 ohmsoutput impedance:REC OUT-1,-2140mV10k(One channel driven separately)PRE OUT800mV2.7k35 watts per channel,both channelsREC/PB24 mV 82 k46Peatge28。ahmialL.bothchanetsCENTER OUT800mV6802operating,4 ohmsGENERALAt 20 Hz ~20 kHz30 watts per channel,both channelsPower consumption:operating,8 ohms180 watts (USA and Canada Model)250 watts (AEP and UK Model)Power bandwidth:8 Hz to 35 kHz,IHFPower requirement:858sao0d8apsgvolts ac (AEP andHarmonic distortion:Less than 0.2%at 1 kHz rated outputUK Model)IM distortion:Less than 0.2%at rated output(60Hz:7kHz=4:1)Dimensions:400【w)×149(h×316(dmm15%(w)x 51916 (h)x 12716 (d)inchesPREAMPLIFIER SECTIONNet weight:8.3 kg (18 lb 5 oz)Frequency response:PHON0-1,-2RIAA equalizationShipping weight:11.5 kg (25 lb 6 oz]curve±1dBTAPE-1,TAPE-2TUNERAUX-1.-215Hzto80kHz±2dBREC/PB (input)SONYSERVICE MANUAL
