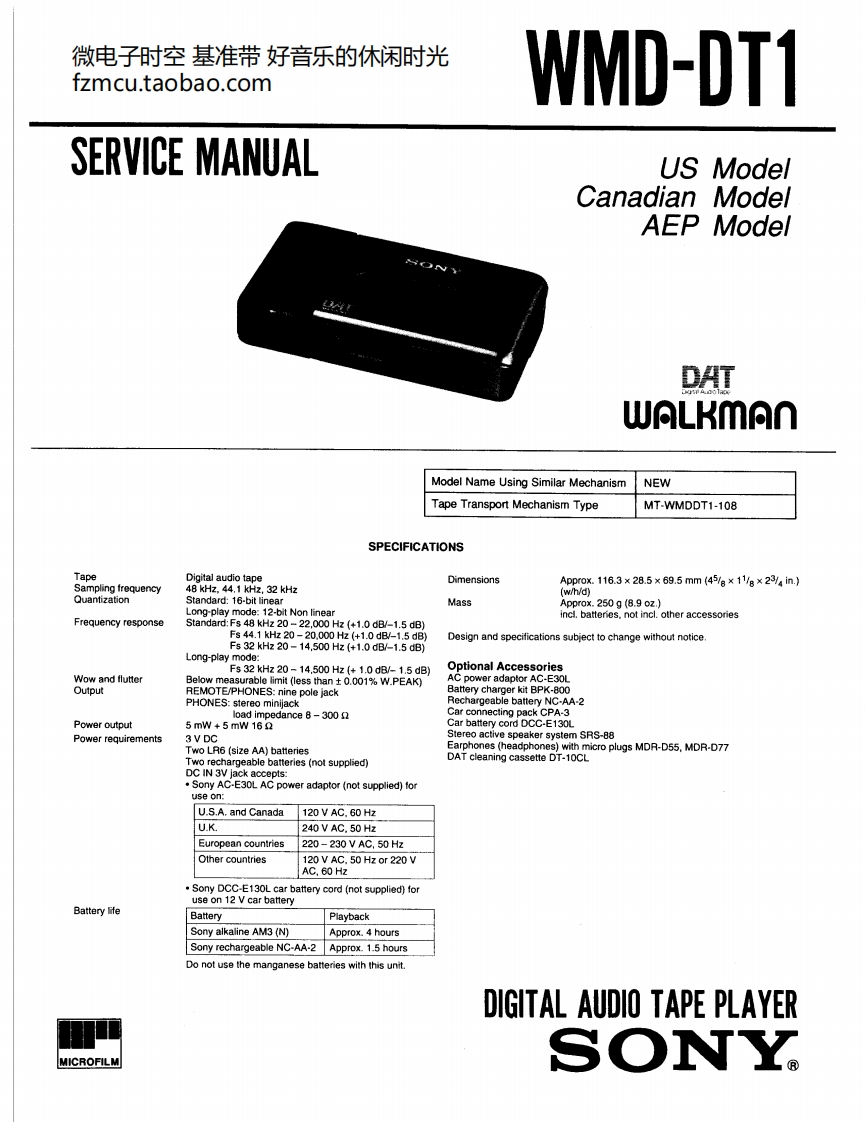

微电子时空基准带好音乐的休闲时光fzmcu.taobao.comWMD-DT1SERVICE MANUALUSModelCanadianModelAEP ModelDATWALKMAnModel Name Using Similar MechanismNEWTape Transport Mechanism TypeMT-WMDDT1-108SPECIFICATIONSTapeDigital audio tapeDimensionsAppr0x.116.3×28.5×69.5mm(45/g×11/g×23y4in.)Sampling frequency48 kHz,44.1 kHz,32 kHz(w/h/d)QuantizationStandard:16-bit linearMassApprox.250 g (8.9 oz.)Long-play mode:12-bit Non linearincl.batteries.not incl.other accessoriesFrequency responseStandard:Fs 48 kHz 20-22,000 Hz (+1.0 dB/-1.5 dB)Fs44.1kHz20-20.000H2(+1.0dB-1.5dB)Design and specifications subject to change without noticeFs32kHz20-14.500Hz(+1.0dB-1.5dB)Long-play mode:Fs32kHz20-14.500Hz(+1.0dB/-1.5dB)Optional AccessoriesWow and flutterBelow measurable limit (less than t 0.001%W.PEAK)AC power adaptor AC-E30LOutputREMOTE/PHONES:nine pole jackBattery charger kit BPK-800PHONES:stereo minijackRechargeable battery NC-AA-2load impedance 8-300Car connecting pack CPA-3Power output5mw+5mw162Car battery cord DCC-E130LPower requirements3VDCStereo active speaker system SRS-88Two LR6(size AA)batteriesEarphones(headphones)with micro plugs MDR-D55,MDR-D77Two rechargeable batteries (not supplied)DAT cleaning cassette DT-10CLDC IN 3V jack accepts:Sony AC-E30L AC power adaptor (not supplied)foruse on:U.S.A.and Canada120 V AC,60 HzU.K.240V AC.50 HzEuropean countries220-230VAC,50HzOther countries120 V AC.50 Hz or 220 VAC,60 Hz.Sony DCC-E130L car battery cord (not supplied)foruse on 12 V car batteryBattery lifeBatteryPlaybackSony alkaline AM3(N)Approx.4 hoursSony rechargeable NC-AA-2 Approx.1.5 hoursDo not use the manganese batteries with this unitDIGITAL AUDIO TAPE PLAYERMICROFILMSONY
