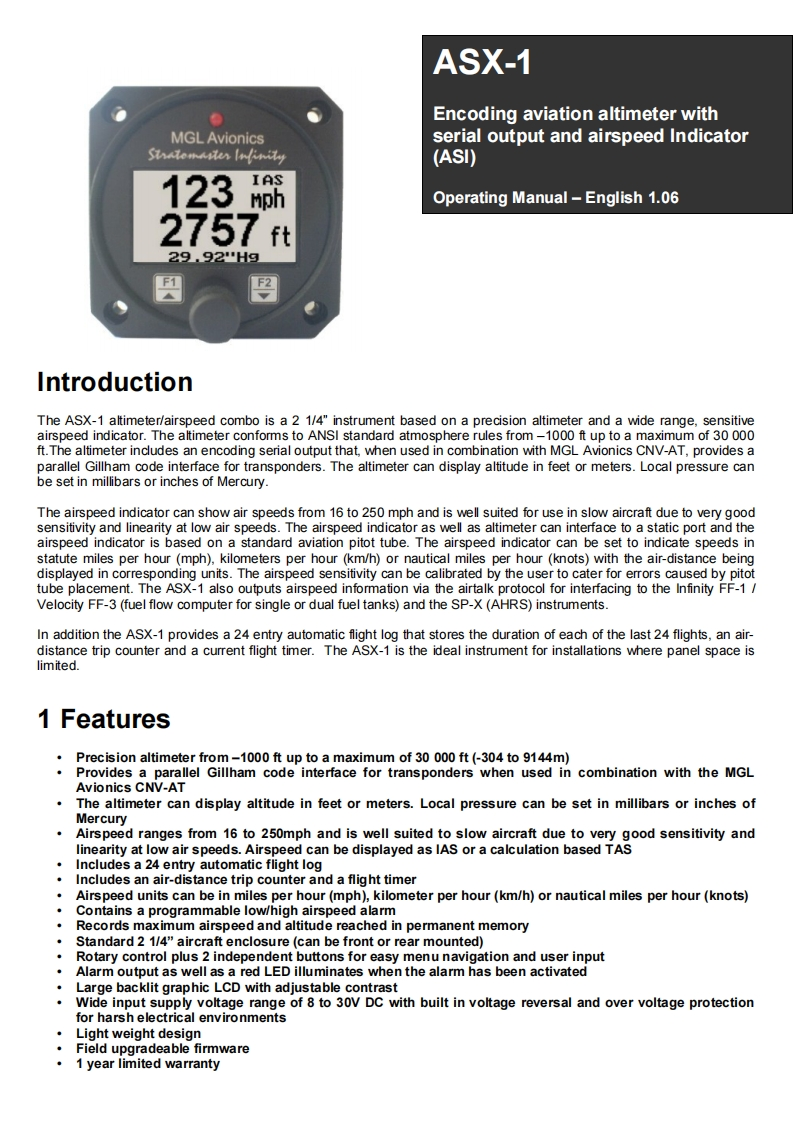

ASX-1Encoding aviation altimeter withMGL Avionicsserial output and airspeed IndicatorSinatemaster Inlinity(ASI)123h航IASOperating Manual -English 1.0627577 ft29.92H9F1F2IntroductionThe ASX-1 altimeter/airspeed combo is a 2 1/4"instrument based on a precision altimeter and a wide range,sensitiveairspeed indicator.The altimeter conforms to ANSI standard atmosphere rules from-1000 ft up to a maximum of 30 000ft.The altimeter includes an encoding serial output that,when used in combination with MGL Avionics CNV-AT,provides aparallel Gillham code interface for transponders.The altimeter can display altitude in feet or meters.Local pressure canbe set in millibars or inches of Mercury.The airspeed indicator can show air speeds from 16 to 250 mph and is well suited for use in slow aircraft due to very goodsensitivity and linearity at low air speeds.The airspeed indicator as well as altimeter can interface to a static port and theairspeed indicator is based on a standard aviation pitot tube.The airspeed indicator can be set to indicate speeds instatute miles per hour(mph),kilometers per hour (km/h)or nautical miles per hour (knots)with the air-distance beingdisplayed in corresponding units.The airspeed sensitivity can be calibrated by the user to cater for errors caused by pitottube placement.The ASX-1 also outputs airspeed information via the airtalk protocol for interfacing to the Infinity FF-1/Velocity FF-3(fuel flow computer for single or dual fuel tanks)and the SP-X(AHRS)instruments.In addition the ASX-1 provides a 24 entry automatic flight log that stores the duration of each of the last 24 flights,an air-distance trip counter and a current flight timer.The ASX-1 is the ideal instrument for installations where panel space islimited.1 FeaturesPrecision altimeter from-1000 ft up to a maximum of 30 000 ft (-304 to 9144m)Provides a parallel Gillham code interface for transponders when used in combination with the MGLAvionics CNV-ATThe altimeter can display altitude in feet or meters.Local pressure can be set in millibars or inches ofMercuryAirspeed ranges from 16 to 250mph and is well suited to slow aircraft due to very good sensitivity andlinearity at low air speeds.Airspeed can be displayed as IAS or a calculation based TASIncludes a 24 entry automatic flight logIncludes an air-distance trip counter and a flight timerAirspeed units can be in miles per hour(mph),kilometer per hour(km/h)or nautical miles per hour(knots)Contains a programmable low/high airspeed alarmRecords maximum airspeed and altitude reached in permanent memoryStandard 2 1/4"aircraft enclosure(can be front or rear mounted)Rotary control plus 2 independent buttons for easy menu navigation and user inputAlarm output as well as a red LED illuminates when the alarm has been activatedLarge backlit graphic LCD with adjustable contrast。Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protectionfor harsh electrical environments·Light weight designF
