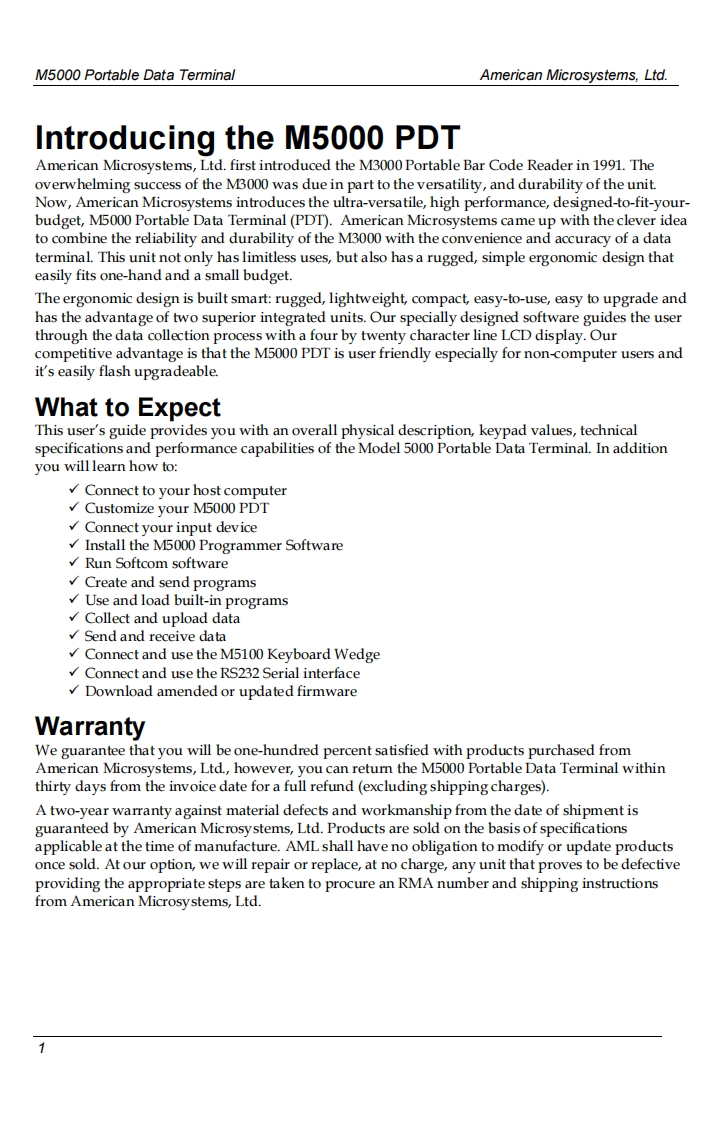

M5000 Portable Data TerminalAmerican Microsystems,Ltd.Introducing the M5000 PDTAmerican Microsystems,Ltd.first introduced the M3000 Portable Bar Code Reader in 1991.Theoverwhelming success of the M3000 was due in part to the versatility,and durability of the unitNow,American Microsystems introduces the ultra-versatile,high performance,designed-to-fit-your-budget,M5000 Portable Data Terminal(PDT).American Microsystems came up with the clever ideato combine the reliability and durability of the M3000 with the convenience and accuracy of a dataterminal.This unit not only has limitless uses,but also has a rugged,simple ergonomic design thateasily fits one-hand and a small budget.The ergonomic design is built smart:rugged,lightweight,compact,easy-to-use,easy to upgrade andhas the advantage of two superior integrated units.Our specially designed software guides the userthrough the data collection process with a four by twenty character line LCD display.Ourcompetitive advantage is that the M5000 PDT is user friendly especially for non-computer users andit's easily flash upgradeable.What to ExpectThis user's guide provides you with an overall physical description,keypad values,technicalspecifications and performance capabilities of the Model 5000 Portable Data Terminal.In additionyou willlearn how to:Connect to your host computerCustomize your M5000 PDTConnect your input deviceInstall the M5000 Programmer Software√Run Softcom softwareCreate and send programsUse and load built-in programsCollect and upload data√Send and receive dataConnect and use the M5100 Keyboard WedgeConnect and use the RS232 Serial interfaceDownload amended or updated firmwareWarrantyWe guarantee that you will be one-hundred percent satisfied with products purchased fromAmerican Microsystems,Ltd.,however,you can retum the M5000 Portable Data Terminal withinthirty days from the invoice date for a full refund (excluding shipping charges).A two-year warranty against material defects and workmanship from the date of shipment isguaranteed by American Microsystems,Ltd.Products are sold on the basis of specificationsapplicable at the time of manufacture.AML shall have no obligation to modify or update productsonce sold.At our option,we will repair or replace,at no charge,any unit that proves to be defectiveproviding the appropriate steps are taken to procure an RMA number and shipping instructionsfrom American Microsystems,Ltd.
