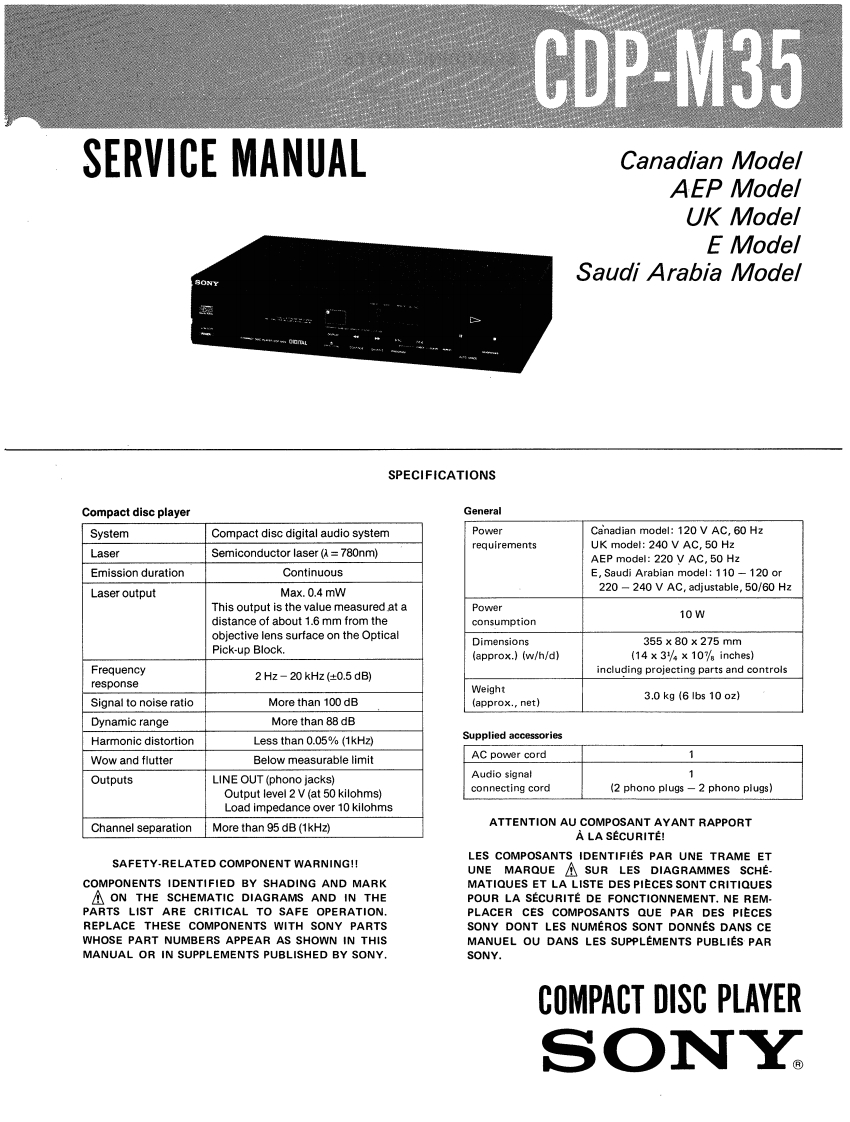

CDP-M35SERVICE MANUALCanadian ModelAEP ModelUK ModelE ModelSaudi Arabia ModelSPECIFICATIONSCompact disc playerGeneralSystemCompact disc digital audio systemPowerCanadian model:120 V AC,60 HzrequirementsUK model:240 V AC,50 HzLaserSemiconductor laser (780nm)AEP model:220 V AC,50 HzEmission durationContinuousE,Saudi Arabian model:110 -120 orLaser outputMax.0.4 mW220-240 V AC,adjustable,50/60 HzThis output is the value measured at aPowerdistance of about 1.6 mm from the10Wconsumptionobjective lens surface on the OpticalDimensions355×80×275mmPick-up Block.(approx.)(w/h/d)(14×3/×10 inches)Frequency2Hz-20kHz(±0.5dB)including projecting parts and controlsresponseWeight3.0kg(61bs10oz)Signal to noise ratioMore than 100 dB(approx.,net)Dynamic rangeMore than 88 dBHarmonic distortionLess than 0.05%(1kHz)Supplied accessoriesWow and flutterBelow measurable limitAC power cordOutputsLINE OUT (phono jacks)Audio signal1Output level 2 V(at 50 kilohms)connecting cord(2 phono plugs-2 phono plugs)Load impedance over 10 kilohmsChannel separation More than 95 dB (1kHz)ATTENTION AU COMPOSANT AYANT RAPPORTA LA SECURITE!LES COMPOSANTS IDENTIFIES PAR UNE TRAME ETSAFETY-RELATED COMPONENT WARNING!!UNE MARQUE SUR LES DIAGRAMMES SCHE-COMPONENTS IDENTIFIED BY SHADING AND MARKMATIQUES ET LA LISTE DES PIECES SONT CRITIQUESON THE SCHEMATIC DIAGRAMS AND IN THEPOUR LA SECURITE DE FONCTIONNEMENT.NE REM-PARTS LIST ARE CRITICAL TO SAFE OPERATION.PLACER CES COMPOSANTS QUE PAR DES PIECESREPLACE THESE COMPONENTS WITH SONY PARTSSONY DONT LES NUMEROS SONT DONNES DANS CEWHOSE PART NUMBERS APPEAR AS SHOWN IN THISMANUEL OU DANS LES SUPPLEMENTS PUBLIES PARMANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.SONY.COMPACT DISC PLAYERSONY
