TA-313-Service-Manual维修操作说明书手册

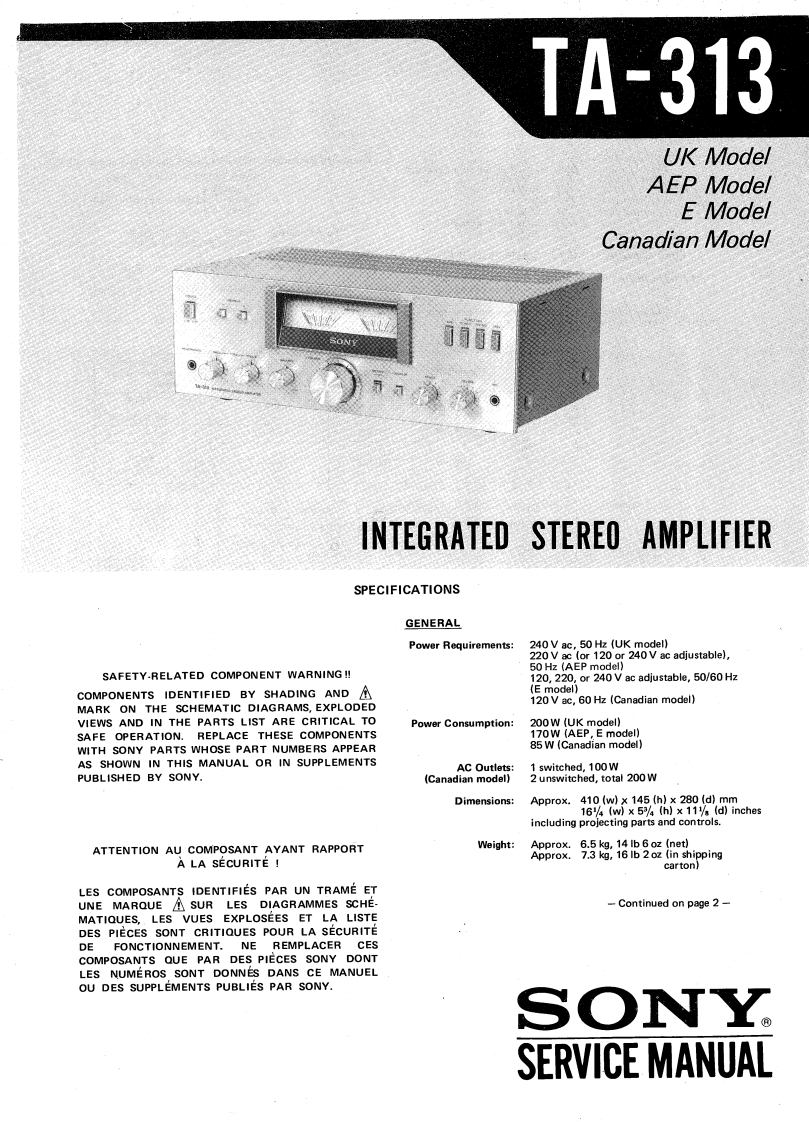

TA-313UK ModelAEP ModelE ModelCanadian ModelINTEGRATED STEREO AMPLIFIERSPECIFICATIONSGENERALPower Requirements:240V ac,50 Hz (UK model)220V ac (or 120 or 240V ac adjustable),SAFETY-RELATED COMPONENT WARNING !50 Hz (AEP model)120,220,or 240 V ac adjustable,50/60 HzCOMPONENTS IDENTIFIED BY SHADING AND(E model)120Vac,60 Hz (Canadian model)MARK ON THE SCHEMATIC DIAGRAMS,EXPLODEDVIEWS AND IN THE PARTS LIST ARE CRITICAL TOPower Consumption:200W (UK model)SAFE OPERATION.REPLACE THESE COMPONENTS170W (AEP,E model)WITH SONY PARTS WHOSE PART NUMBERS APPEAR85 W(Canadian model)AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTSAC Outlets:1 switched,100WPUBLISHED BY SONY.(Canadian model)2 unswitched,total 200 WDimensions:Approx.410(w)×145(hl×280(d)mm16%(w)x 5%(h)x 11%(d)inchesincluding projecting parts and controls.ATTENTION AU COMPOSANT AYANT RAPPORTWeight:Approx.6.5 kg,14 Ib6oz (net)A LA SECURITEApprox.7.3 kg,16 Ib 2 oz (in shippingcarton)LES COMPOSANTS IDENTIFIES PAR UN TRAME ETUNE MARQUE SUR LES DIAGRAMMES SCHE-Continued on page 2-MATIQUES,LES VUES EXPLOSEES ET LA LISTEDES PIECES SONT CRITIQUES POUR LA SECURITEDEFONCTIONNEMENT.NE REMPLACER CESCOMPOSANTS QUE PAR DES PIECES SONY DONTLES NUMEROS SONT DONNES DANS CE MANUELOU DES SUPPLEMENTS PUBLIES PAR SONY.SONYSERVICE MANUAL
