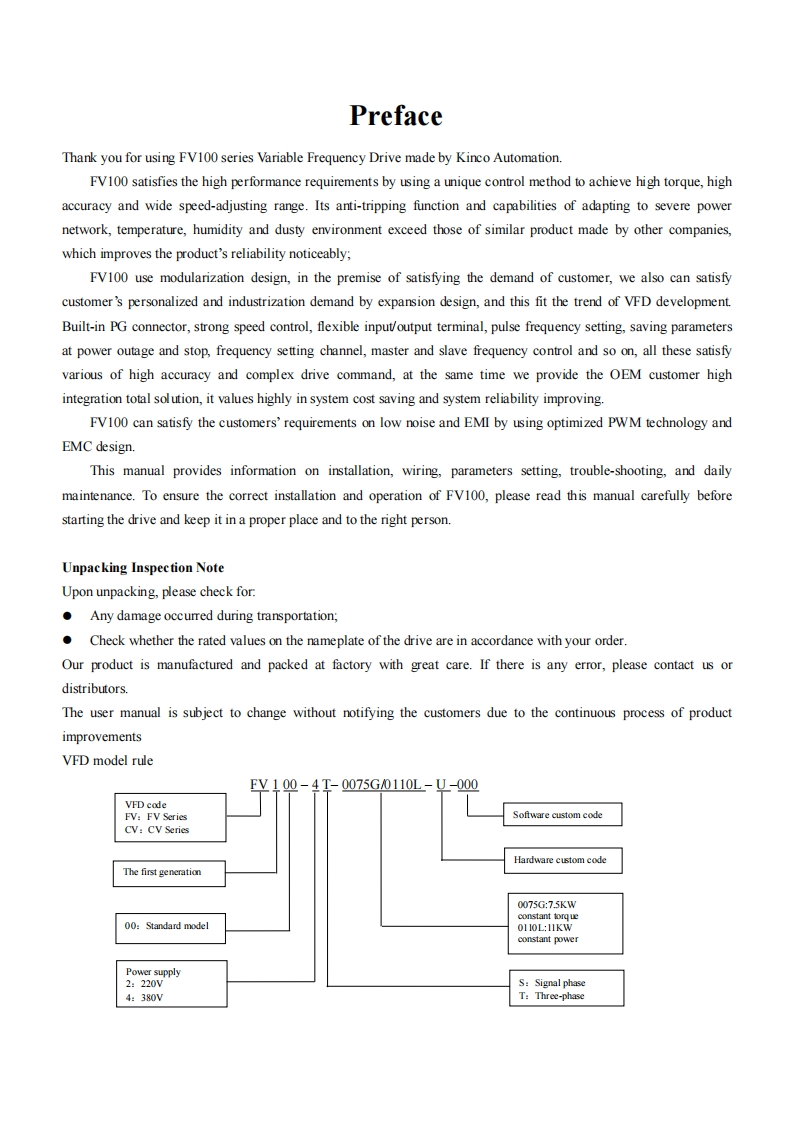

PrefaceThank you for using FV100 series Variable Frequency Drive made by Kinco Automation.FV100 satisfies the high performance requirements by using a unique control method to achieve high torque,highaccuracy and wide speed-adjusting range.Its anti-tripping function and capabilities of adapting to severe powernetwork,temperature,humidity and dusty environment exceed those of similar product made by other companies,which improves the product's reliability noticeably;FV100 use modularization design,in the premise of satisfying the demand of customer,we also can satisfycustomer's personalized and industrization demand by expansion design,and this fit the trend of VFD development.Built-in PG connector,strong speed control,flexible input/output terminal,pulse frequency setting,saving parametersat power outage and stop,frequency setting channel,master and slave frequency control and so on,all these satisfyvarious of high accuracy and complex drive command,at the same time we provide the OEM customer highintegration total solution,it values highly in system cost saving and system reliability improving.FV100 can satisfy the customers'requirements on low noise and EMI by using optimized PWM technology andEMC design.This manual provides information on installation,wiring,parameters setting,trouble-shooting,and dailymaintenance.To ensure the correct installation and operation of FV100,please read this manual carefully beforestarting the drive and keep it in a proper place and to the right person.Unpacking Inspection NoteUpon unpacking,please check for.Any damage occurred during transportation;Check whether the rated values on the nameplate of the drive are in accordance with your order.Our product is manufactured and packed at factory with great care.If there is any error,please contact us ordistributors.The user manual is subject to change without notifying the customers due to the continuous process of productimprovementsVFD model ruleFV100-4T-0075G0110L-U-000VFD codeFV:FV SeriesSoftware custom codeCV:CV SeriesHardware custom codeThe first generation0075G:7.5KWconstant torq ue00:Standard model0110L:11KWconstant powerPower supply2:220VS:Signal phase4:380VT:Three-phase
