D-11-service-manual维修手册

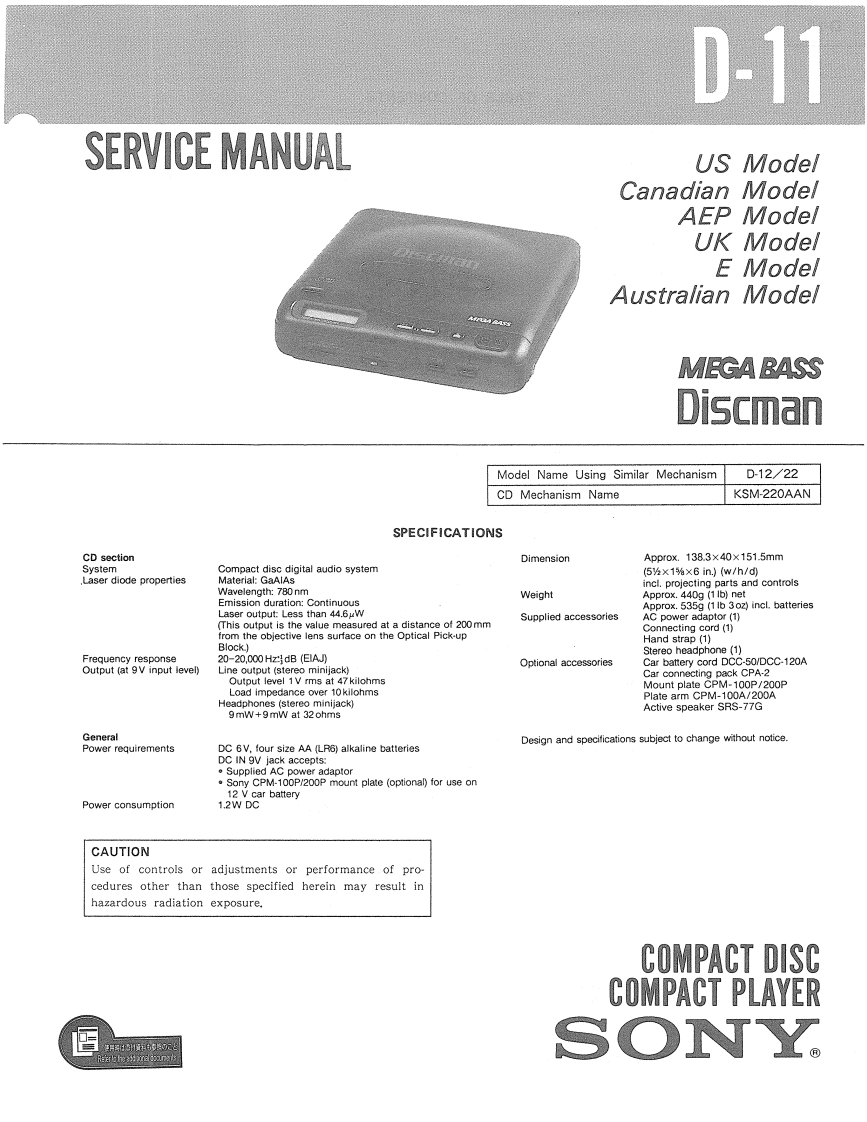

0-11SERVICE MANUALUS ModelCanadian ModelAEP ModelUK ModelE ModelAustralian ModelMEGARASSDiscmanModel Name Using Similar MechanismD-12/22CD Mechanism NameKSM-220AANSPECIFICATIONSCD sectionDimensionAppr0x.138.3×40×151.5mmSystemCompact disc digital audio system(5%x1%x6 in.)(w/h/d)Laser diode propertiesMaterial:GaAlAsincl.projecting parts andcontrolsWavelength:780 nmWeightApprox.440g (1 1b)netEmission duration:ContinuousLaser output:Less than 44.6uWApprox.535g(1Ib 3oz)incl.batteriesSupplied accessoriesAC power adaptor (1)(This output is the value measured at a distance of 200mmConnecting cord (1)from the objective lens surface on the Optical Pick-upHand strap(1)Block)Stereo headphone(1)Frequency response20-20,000 Hz dB (EIAJ)Output (at 9V input level)Optional accessoriesCar battery cord DCC-50/DCC-120ALine output (stereo minijack)Output level 1V rms at 47kilohmsCar connecting pack CPA-2Mount plate CPM-100P/200PLoad impedance over 10kilohmsHeadphones (stereo minijack)Plate arm CPM-100A/200AActive speaker SRS-77G9mW+9mW at 32ohmsGeneralDesign and specifications subject to change without notice.Power requirementsDC 6V,four size AA (LR5)alkaline batteriesDC IN 9V jack accepts:Supplied AC power adaptor.Sony CPM-100P/200P mount plate (optional)for use on12 V car batteryPower consumption1.2W DCCAUTIONUse of controls or adjustments or performance of procedures other than those specified herein may result inhazardous radiation exposure.COMPACT DISCCOMPACT PLAYERSONY
