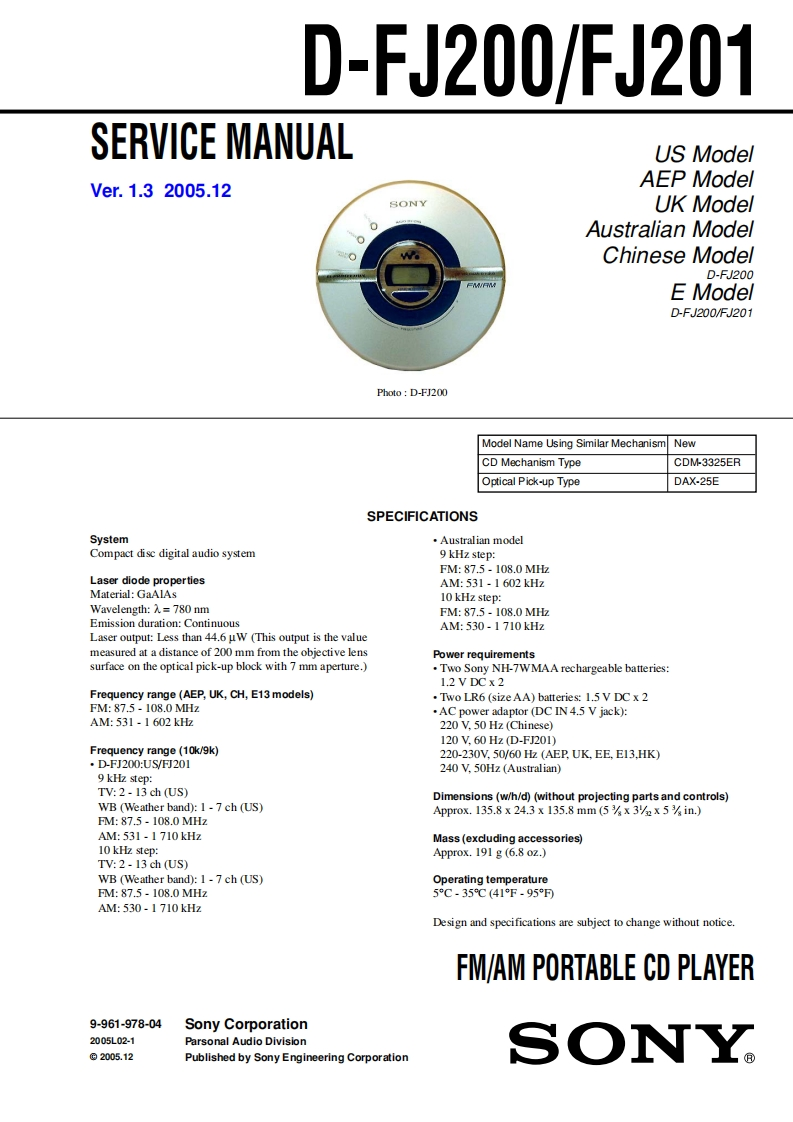

D-FJ200/FJ201SERVICE MANUALUS ModelAEP ModelVer.1.32005.12SONYUK ModelAustralian ModelChinese ModelD-FJ200EModelD-FJ200/FJ201Photo D-FJ200Model Name Using Similar MechanismNewCD Mechanism TypeCDM-3325EROptical Pick-up TypeDAX-25ESPECIFICATIONSSystem·Australian modelCompact disc digital audio system9 kHz step:FM:87.5-108.0MHzLaser diode propertiesAM:531-1602kHzMaterial:GaAlAs10 kHz step:Wavelength:入=780nmFM:87.5-108.0MHzEmission duration:ContinuousAM:530-1710kHzLaser output:Less than 44.6 uW (This output is the valuemeasured at a distance of 200 mm from the objective lensPower requirementssurface on the optical pick-up block with 7 mm aperture.)Two Sony NH-7WMAA rechargeable batteries:1.2VDCx2Frequency range (AEP,UK,CH,E13 models)Two LR6(size AA)batteries:1.5V DC x 2FM:87.5-108.0MHz.AC power adaptor (DC IN 4.5 V jack):AM:531-1602kz220 V.50 Hz(Chinese)120V.60HzD-FJ201)Frequency range(10k/9k)220-230V.50/60Hz(AEP.UK.EE.E13.HK)·D-FJ200:US/F201240 V.50Hz (Australian)9 kHz step:TV:2-13 ch(US)Dimensions(w/h/d)(without projecting parts and controls)WB (Weather band):1 -7 ch (US)Approx.135.8 x 24.3 x 135.8 mm (5x 3x5%in.):87.5-108.0MHzAM:531-1710kHzMass(excluding accessories)10 kHz step:Approx.191 g(6.8 oz.)TV:2-13 ch(US)WB (Weather band):1 -7 ch (US)Operating temperatureM:87.5-108.0MHz5C-35℃(41℉-95FAM:530-1710kHzDesign and specifications are subject to change without notice.FM/AM PORTABLE CD PLAYER9-961-978-04Sony Corporation2005L02-1Parsonal Audio Division@2005.12Published by Sony Engineering CorporationSONY
