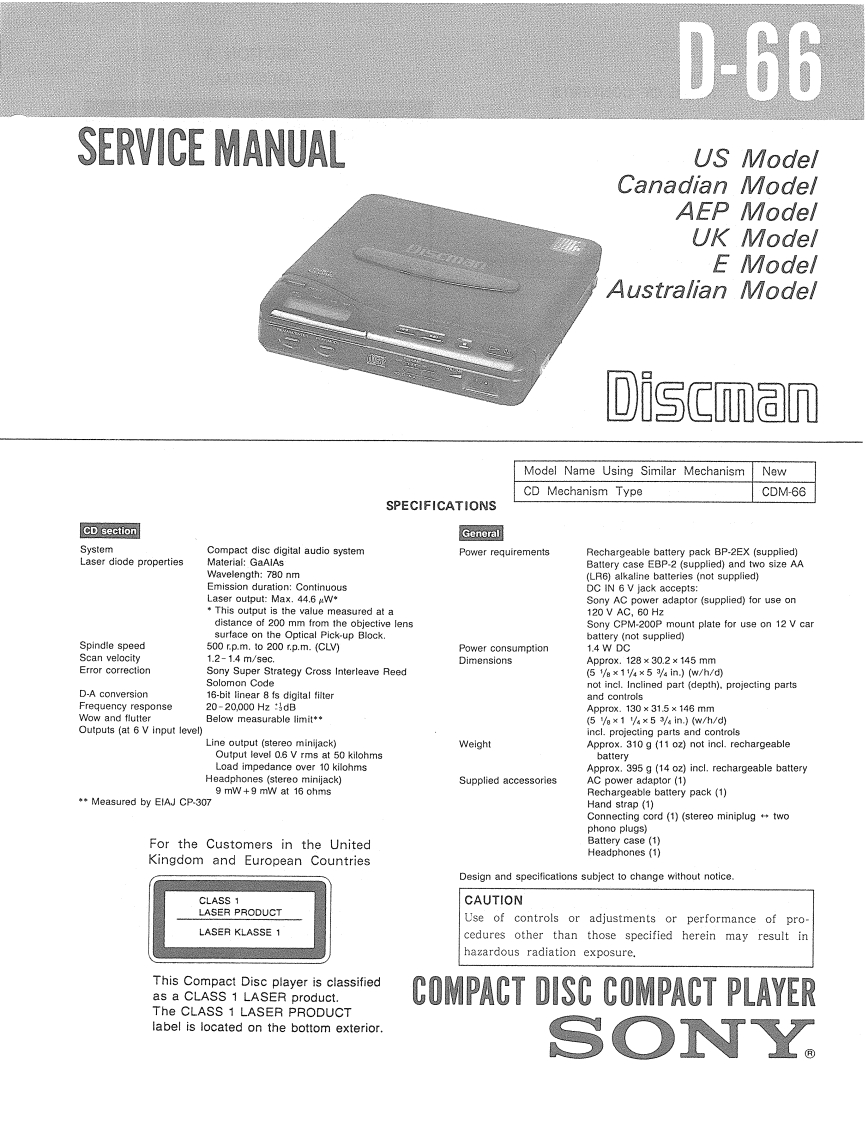

0-66SERVICE MANUALUS ModelCanadian ModelAEP ModelUK ModelE ModelAustralian ModelDiscmanModel Name Using Similar MechanismNewCD Mechanism TypeCDM-66SPECIFICATIONSCD sectionGenerallSystemCompact disc digital audio systemPower requirementsRechargeable battery pack BP-2EX (supplied)Laser diode propertiesMaterial:GaAlAsBattery case EBP-2 (supplied)and two size AAWavelength:780 nm(LR6)alkaline batteries (not supplied)Emission duration:ContinuousDC IN 6 V jack accepts:Laser output:Max.44.6 aWSony AC power adaptor (supplied)for use onThis output is the value measured at a120 V AC,60 Hzdistance of 200 mm from the objective lensSony CPM-200P mount plate for use on 12 V carsurlace on the Optical Pick-up Block.battery (not supplied)Spindle speed500 r.p.m.to 200 r.p.m.(CLV)Power consumption1.4W DCScan velocity1.2-1.4m/sec.DimensionsAppr0x.128×30.2×145mmError correctionSony Super Strategy Cross Interleave Reed(5 1/8 x 114x5 3/a in.)(w/h/d)Solomon Codenot incl.Inclined part (depth).projecting partsD-A conversion16-bit linear 8 fs digital filterand controlsFrequency response20-20.000Hzt3dBApprox.130×31.5×146mmWow and flutterBelow measurable limit.(5 /e x 1 ax5 3/a in.)(w/h/d)Outputs (at 6 V input level)ncl.projecting parts and controisLine output (stereo minijack)WeightApprox.310 g (11 oz)not incl.rechargeableOutput level 0.6 V rms at 50 kilohmsbatteryLoad impedance over 10 kilohmsApprox.395 g(14 oz)incl.rechargeable batteryHeadphones(stereo minijack)Supplied accessoriesAC power adaptor (1)9 mW+9 mW at 16 ohmsRechargeable battery pack(1).Measured by EIAJ CP.307Hand strap (1)Connecting cord (1)(stereo miniplug twophono plugs)For the Customers in the UnitedBattery case(1)Kingdom and European CountriesHeadphones (1)Design and specifications subject to change without notice.CLASS 1CAUTIONLASER PRODUCTUse of controls or adjustments orperformance of pro-LASER KLASSE 1cedures other than those specified herein may result inhazardous radiation exposure.This Compact Disc player is classifiedas a CLASS 1 LASER product.COMPACT DISC COMPACT PLAYERThe CLASS 1 LASER PRODUCTlabel is located on the bottom exterior.SONY
