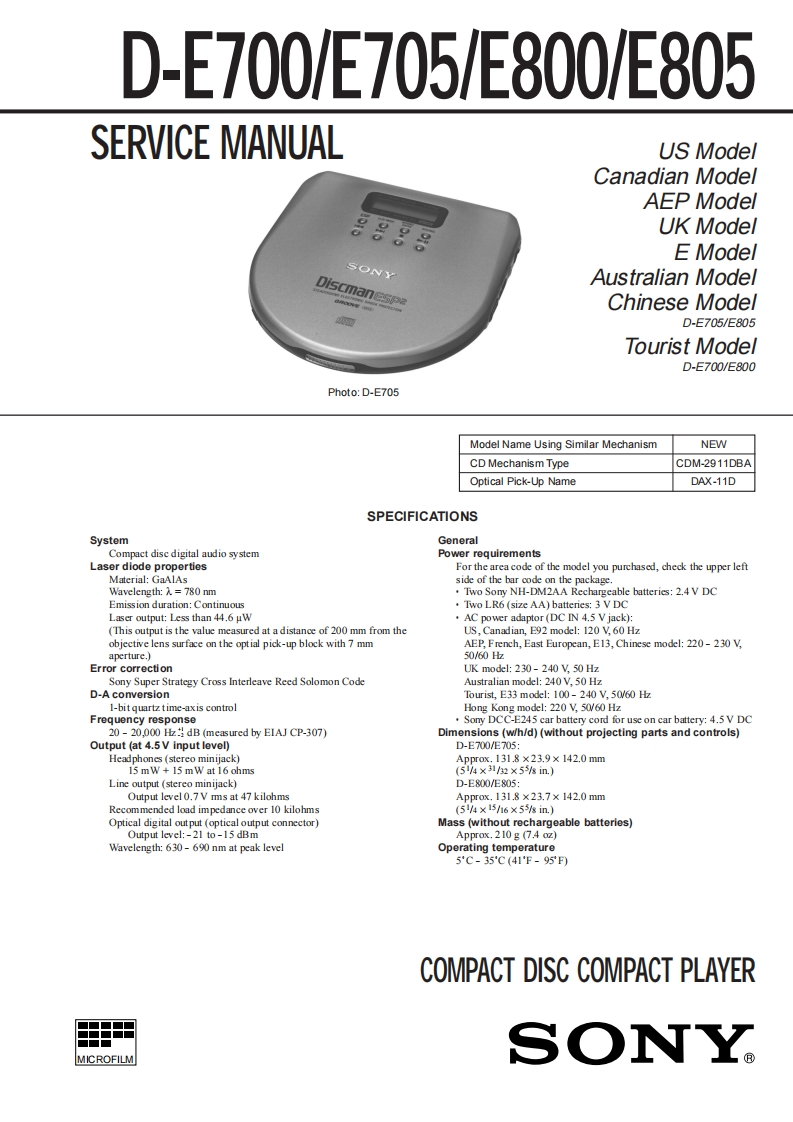

D-E700/E705/E800/E805SERVICE MANUALUS ModelCanadian ModelAEP ModelUK ModelEModelSONYDiscmanespaAustralian ModelChinese ModelD-E705/E805Tourist ModelD-E700/E800Photo:D-E705Model Name Using Similar MechanismNEWCD Mechanism TypeCDM-2911DBAOptical Pick-Up NameDAX-11DSPECIFICATIONSSystemGeneralCompact disc digital audio systemPower requirementsLaser diode propertiesFor the area code of the model you purchased,check the upper leftMaterial:GaAlAsside of the bar code on the package.Wavelength:入=780mmTwo Somy NH-DM2AA Rechargeable batteries:2.4V DCEmission duration:ContinuousTwo LR6(size AA)batteries:3 V DCLaser output:Less than 44.6 uWAC power adaptor (DC IN 4.5 V jack):(This output is the value measured at a distance of 200 mm from theUS,Canadian,E92 model:120 V,60 Hzobjective lens surface on the optial pick-up block with7mmAEP,French,East European,E13,Chinese model:220-230 V,aperture.)50/60zError correctionUK model:230-240 V.50 HzSony Super Strategy Cross Interleave Reed Solomon CodeAustralian model:240 V,50 HzD-A conversionTourist,E33 model:100-240 V,50/60 Hz1-bit quartz time-axis controlHong Kong model:220 V,50/60 HzFrequency responseSony DCC-E245 car battery cord for use on car battery:4.5 V DC20-20,000 Hz dB (measured by EIAJ CP-307)Dimensions(w/h/d)(without projecting parts and controls)Output (at 4.5V input level)D-E700/E705:Headphones (stereo minijack)Approx.131.8×23.9×142.0mm15 mW+15 m W at 16 ohms(54×3/2×55gin)Line output (stereo minijack)D-E800/E805:Output level0.7V mms at 47 kilohmsApprox,.131.8×23.7×142.0mmRecommended load impedance over 10 kilohms(54x15/16×5sin)Optical digital out put (optical output connector)Mass (without rechargeable batteries)Output level:-21 to -15 dBmApprox.210 g (7.4 oz)Wavelength:630-690 nm at peak levelOperating temperature5'C-35'C(41℉-95F)COMPACT DISC COMPACT PLAYERMICROFILMSONY
