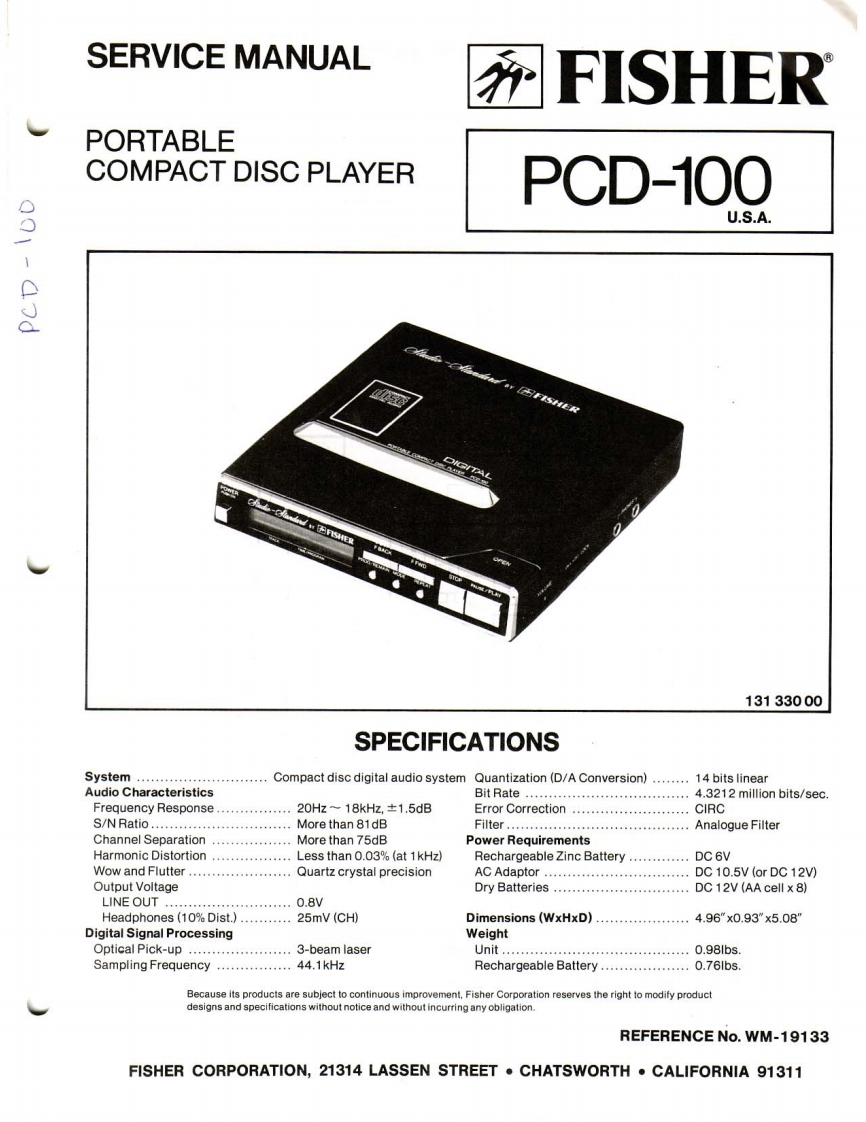

SERVICE MANUALFISHERPORTABLECOMPACT DISC PLAYERPCD-100.S.Ao01-47dFISHER13133000SPECIFICATIONSSystem............................Compact disc digital audio system Quantization (D/A Conversion)........14 bits linearAudio CharacteristicsBit Rate4.3212 million bits/sec.Frequency Response20Hz-18kHz,±1.5dBError Correction.…CIRCS/N Ratio…More than 81dBFilter.…Analogue FilterChannel Separation.................More than 75dBPower RequirementsHarmonic Distortion..........Less than 0.03%(at 1kHz)Rechargeable Zinc Battery.............DC6VWow and FlutterQuartz crystal precisionAC Adaptor...........DC 10.5V (or DC 12V)Output VoltageDry Batteries.…DC 12V (AA cell x 8)LINE OUT .0.8VHeadphones (10%Dist.)...........25mV(CH)Dimensions(WxHxD).…4.96"x0.93"x5.08"Digital Signal ProcessingWeightOptical Pick-up .....................3-beam lasernit…0.98lbs.Sampling Frequency ...............44.1kHzRechargeable Battery...................0.76lbs.Because its products are subject to continuous improvement,Fisher Corporation reserves the right to modify productdesigns and specifications without notice and without incurring any obligationREFERENCE No.WM-19133FISHER CORPORATION,21314 LASSEN STREET.CHATSWORTH.CALIFORNIA 91311
