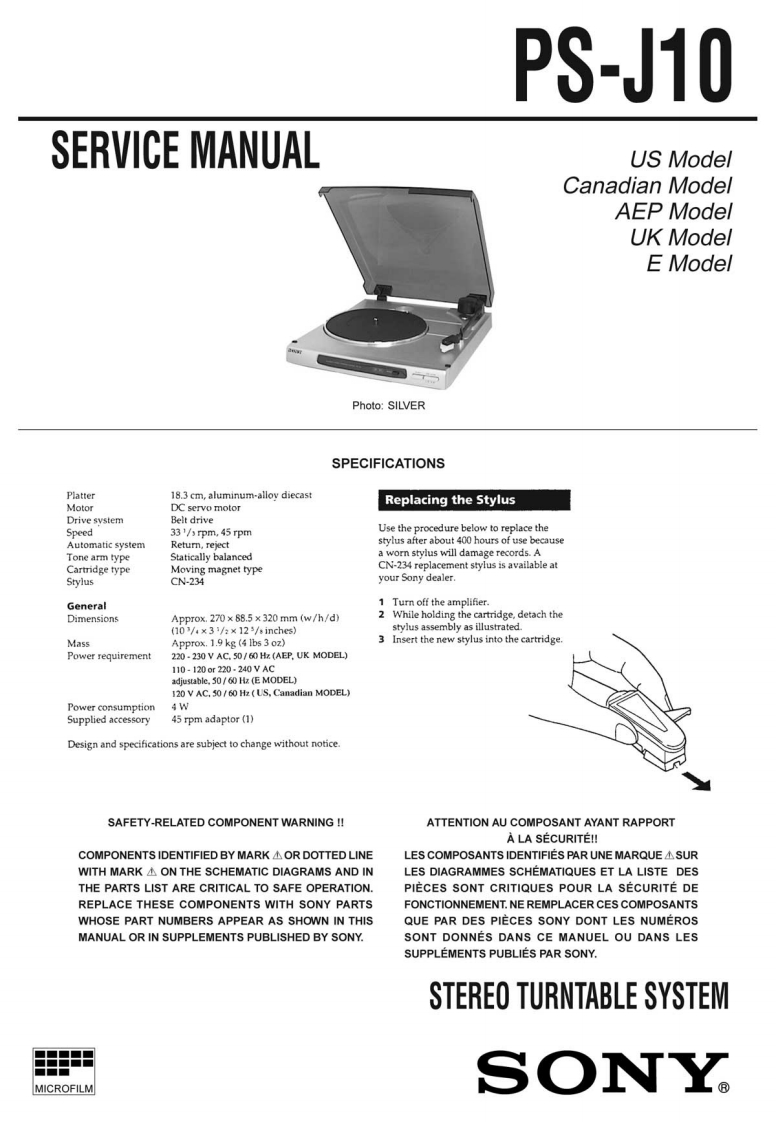

PS-J10SERVICE MANUALUS ModelCanadian ModelAEP ModelUK ModelEModelPhoto:SILVERSPECIFICATIONSPlatter18.3 cm,aluminum-alloy diecastMotorDC servo motorReplacing the StylusDrive systemBelt driveSpeed331/rpm,45 rpmUse the procedure below to replace theAutomatic systemReturn,rejectstylus after about 400 hours of use becauseTone arm typeStatically balanceda worn stylus will damage records.ACartridge typeMoving magnet typeCN-234 replacement stylus is available atStylusCN-234your Sony dealerGeneral1 Turn off the amplifier.DimensionsApprox..270×68.5×320mm(w/h/d)2 While holding the cartridge,detach the(10/4×3/2×12/sinches)stylus assembly as illustrated.MassApprox.1.9 kg(4 lbs 3oz)3Insert the new stylus into the cartridge.Power requirement220 -230 V AC.50/60 Hz (AEP,UK MODEL)110-120or220-240VACadjustable.50/60 Hz (E MODEL)120 V AC,50/60 Hz (US.Canadian MODEL)Power consumption4WSupplied accessory45 rpm adaptor (1)Design and specifications are subject to change without notice.SAFETY-RELATED COMPONENT WARNING !ATTENTION AU COMPOSANT AYANT RAPPORTA LA SECURITE!!COMPONENTS IDENTIFIED BY MARK OR DOTTED LINELES COMPOSANTS IDENTIFIES PAR UNE MARQUESURWITH MARK ON THE SCHEMATIC DIAGRAMS AND INLES DIAGRAMMES SCHEMATIQUES ET LA LISTE DESTHE PARTS LIST ARE CRITICAL TO SAFE OPERATION.PIECES SONT CRITIQUES POUR LA SECURITE DEREPLACE THESE COMPONENTS WITH SONY PARTSFONCTIONNEMENT.NE REMPLACER CES COMPOSANTSWHOSE PART NUMBERS APPEAR AS SHOWN IN THISQUE PAR DES PIECES SONY DONT LES NUMEROSMANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.SONT DONNES DANS CE MANUEL OU DANS LESSUPPLEMENTS PUBLIES PAR SONY.STEREO TURNTABLE SYSTEM■■■MICROFILMSONY
