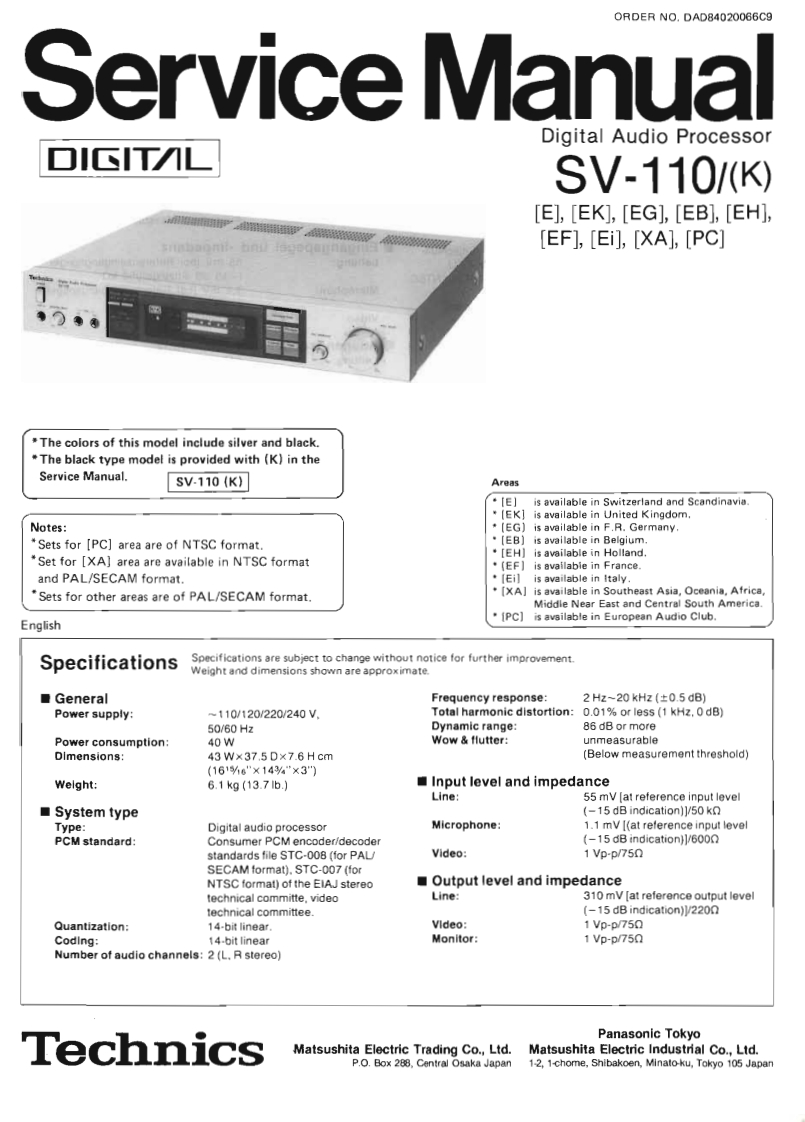

ORDER NO.DAD84020066C9Service ManualDigital Audio Processor▣IGITLSV-110/(K[E],[EK],[EG],[EB],[EH],[EF],[Ei],[XA],[PC]The colors of this model include silver and black..The black type model is provided with(K)in theService Manual.SV-110(K)Areas[E]is available in Switzerland and Scandinavia[EK]is available in United Kingdom.Notes:【EG)is available in F.R.Germany.*Sets for [PC]area are of NTSC format.·[EB】is available in Belgium·[EHI*Set for [XA]area are available in NTSC formatis available in HollandEF】is8 vailable in Franceand PAL/SECAM format.is available in Italy."Sets for other areas are of PAL/SECAM format.[XA]is available in Southeast Asia,Oceania.AfricaMiddle Near East and Central South America.[PC]is avsilable in European Audio Club.EnglishSpecificationsSpecifications are subject to change without notice for further improvement.Weight and dimensions shown are approximate.■GeneralFrequency response:2Hz-20kHz（±0.5dB)Power supply:-110/120/220/240VTotal harmonic distortion:0.01%or less (1 kHz.0 dB)50/60HzDynamic range:86 dB or morePower consumption:40WWow flutter:unmeasurableDImensions:43W×37.5D×7.6Hcm(Below measurement threshold)(16146"×143y4"×3")Welght:6.1kg(13.7b.)Input level and impedanceLine:55 mV [at reference input level■System type(-15 dB indication)]/50 koType:Digital audio processorMicrophone:1.1 mV [(at reference input levelPCM standard:Consumer PCM encoder/decoder(-15 dB indication)]/6000standards file STC-008 (for PALVideo:1 Vp-p/750SECAM format).STC-007 (forNTSC format)of the EIAJ stereoOutput level and impedancetechnical committe,videoLine:310 mV [at reference output leveltechnical committee.(-15 dB indication))/2200Quantization:14-bit linear.Vldeo:1 Vp-p/750Coding:14-bit linearMonitor:1 Vp-p/750Number of audio channels:2(L.R stereo)TechnicsPanasonic TokyoMatsushita Electric Trading Co.,Ltd.Matsushita Electric Industrial Co..Ltd.P.O.Box 288,Central Osaka Japan1-2,1-chome,Shibakoen,Minato-ku,Tokyo 105 Japan
