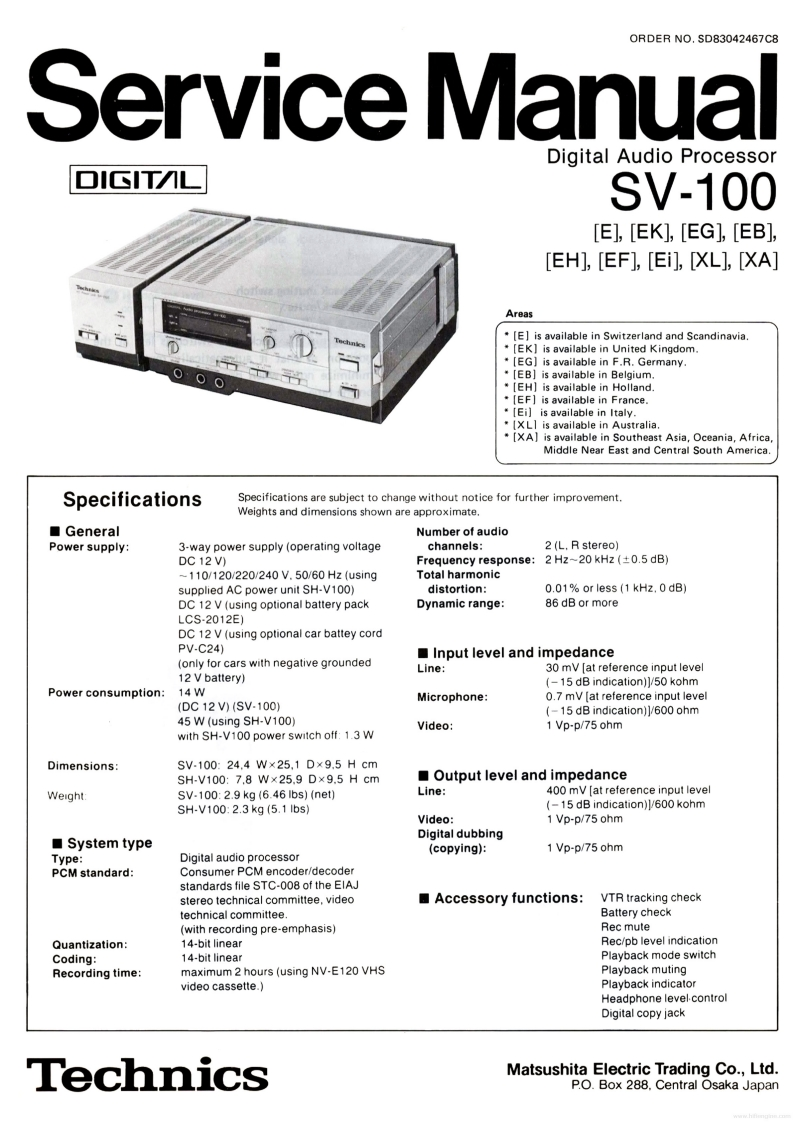

ORDER NO.SD83042467C8Service ManualDigital Audio Processor▣IGITLSV-100[E],[EK],[EG],[EB],[EH],[EF],[Ei],[XL],[XA]Areas*[E]is available in Switzerland and Scandinavia.*[EK]is available in United Kingdom.·[EG】is available in F,R.Germany[EB]is available in Belgium.。[EH】is available in Holland.[EF]is available in France.[Ei]is available in Italy..[XLI is available in Australia.*[XA]is available in Southeast Asia,Oceania,AfricaMiddle Near East and Central South AmericaSpecificationsSpecifications are subject to change without notice for further improvementWeights and dimensions shown are approximate.■GeneralNumber of audioPower supply:3-way power supply (operating voltagechannels:2(L.R stereo)DC 12V)Frequency response:2 Hz~20 kHz (+0.5 dB)-110/120/220/240V.50/60Hz(usingTotal harmonicsupplied AC power unit SH-V100)distortion:0.01%or less (1 kHz.0 dB)DC 12 V(using optional battery packDynamic range:86 dB or moreLCS-2012E)DC 12 V(using optional car battey cordPV-C24)Input level and impedance(only for cars with negative groundedLine:30 mV [at reference input level12 V battery)(-15 dB indication)]/50 kohmPower consumption:14WMicrophone:0.7 mV [at reference input level(DC12V)(SV.100)(-15 dB indication)]/600 ohm45 W (using SH-V100)Video:1 Vp-p/75 ohmwith SH-V100 power switch off:1.3 WDimensions:SV.100:24.4W×25.1D×9.5HcmSH-V100:7.8W×25.9D×9.5HcmOutput level and impedanceWeightSV-100:2.9kg(6.461bs)(net)Line:400 mV [at reference input levelSH-V100:2.3kg(5.1bs)(-15 dB indication)/600 kohmVideo:1 Vp-p/75 ohmDigital dubbing■System type(copying):1 Vp-p/75 ohmType:Digital audio processorPCM standard:Consumer PCM encoder/decoderstandards file STC-008 of the EIAJstereo technical committee,videoAccessory functions:VTR tracking checktechnical committee.Battery check(with recording pre-emphasis)Rec muteQuantization:14-bit linearRec/pb level indicationCoding:14-bit linearPlayback mode switchRecording time:maximum 2 hours(using NV-E120 VHSPlayback mutingvideo cassette.)Playback indicatorHeadphone level controlDigital copy jackTechnicsMatsushita Electric Trading Co.,LtdP.O.Box 288.Central Osaka Japan
