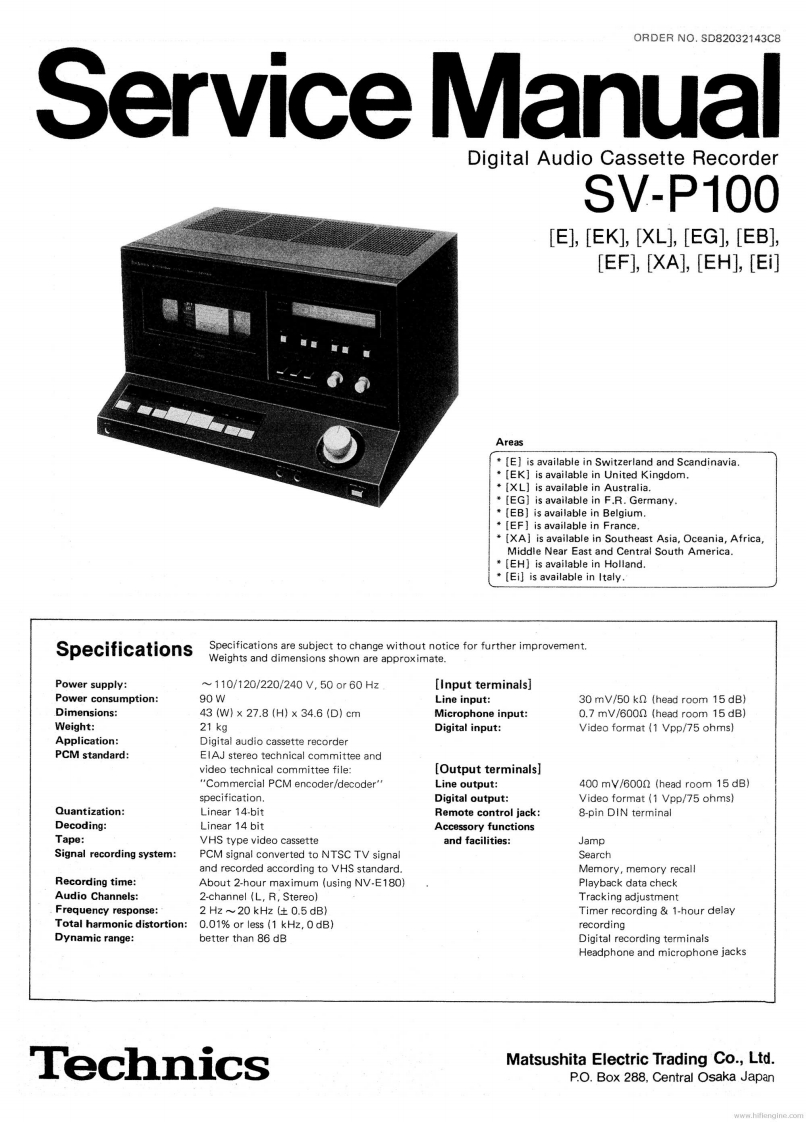

0 RDER N0.SD82032143C8Service ManualDigital Audio Cassette RecorderSV-P100[E],[EK],[XL],[EG],[EB],[EF],[XA],[EH],[Ei]Areas[E]is available in Switzerland and Scandinavia[EK]is available in United Kingdom.◆IXL】is available in Australia.[EG]is available in F.R.Germany.【EB】is available in Belgium.+【EF】is available in France,[XA]is available in Southeast Asia,Oceania,Africa,Middle Near East and Central South America.*[EH)is available in Holland.[Ei]is available in Italy.SpecificationsSpecifications are subject to change without notice for further improvement.Weights and dimensions shown are approximate.Power supply:~110/120/220/240V,500r60Hz[Input terminals】Power consumption:90wLine input:30 mV/50 kn (head room 15 dB)Dimensions:43(W1×27.8(H)×34.6(D)cmMicrophone input:0.7 mV/6000 (head room 15 dB)Weight:21 kgDigital input:Video format (1 Vpp/75 ohms)Application:Digital audio cassette recorderPCM standard:ElAJ stereo technical committee andvideo technical committee file:[Output terminals]"Commercial PCM encoder/decoder"'Line output起400 mV/6000 (head room 15 dB)specificationDigital output:Video format (1 Vpp/75 ohms)Quantization:Linear 14-bitRemote control jack:8-pin DIN terminalDecoding:Linear 14 bitAccessory functionsTape:VHS type video cassetteand facilities:JampSignal recording system:PCM signal converted to NTSC TV signalSearchand recorded according to VHS standard.Memory,memory recallRecording time:About 2-hour maximum (using NV-E180)Playback data checkAudio Channels:2-channel (L,R,Stereo)Tracking adjustmentFrequency response:2Hz≈20kHz(±0.5dB}Timer recording 1-hour delayTotal harmonic distortion:0.01%or less (1 kHz,O dB)recordingDynamic range:better than 86 dBDigital recording terminalsHeadphone and microphone jacksTechnicsMatsushita Electric Trading Co.,Ltd.P.O.Box 288,Central Osaka Japan
