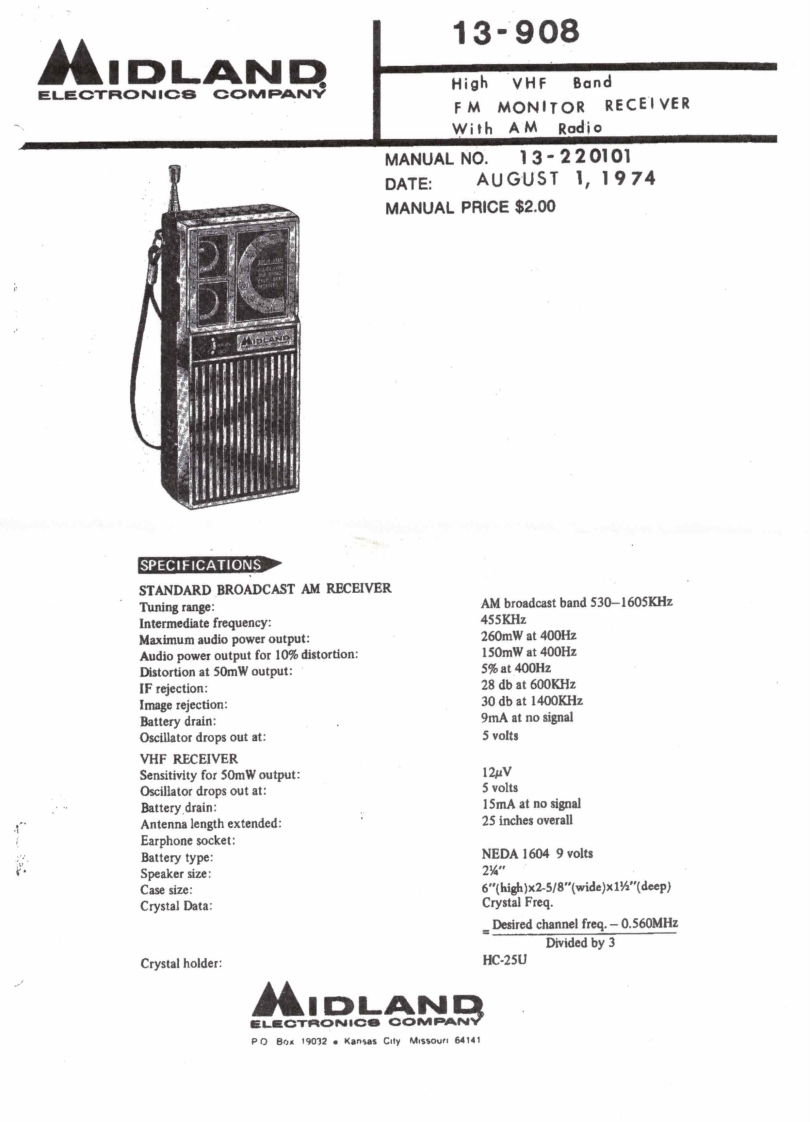

13-908AIDLANDHighVHFBandELECTRONICS COMPANYFM MONITOR RECEIVERWith A M RadioMANUAL NO.13-220101DATE:AUGUST 1,1974MANUAL PRICE $2.00SPECIFICATIONSSTANDARD BROADCAST AM RECEIVERTuning range:AM broadcast band 530-1605KHzIntermediate frequency:455KHzMaximum audio power output:260mW at 400HzAudio power output for 10%distortion:150mW at 400HzDistortion at 50mW output:5%at 400HzIF rejection:28 db at 600KHzImage rejection:30 db at 1400KHzBattery drain:9mA at no signalOscillator drops out at:5 voltsVHF RECEIVERSensitivity for 50mW output:12μVOscillator drops out at:5 voltsBattery.drain:15mA at no signalAntenna length extended:25 inches overallEarphone socket:Battery type:NEDA 1604 9 voltsSpeaker size:2%"Case size:6"(high)x2-5/8"(wide)x1"(deep)Crystal Data:Crystal Freq._Desired channel freq.-0.560MHzDivided by 3Crystal holder:HC-25UMAIDLANDELECTRONICB COMPANYPO Box 19032.Kansas City Missoun 64141
