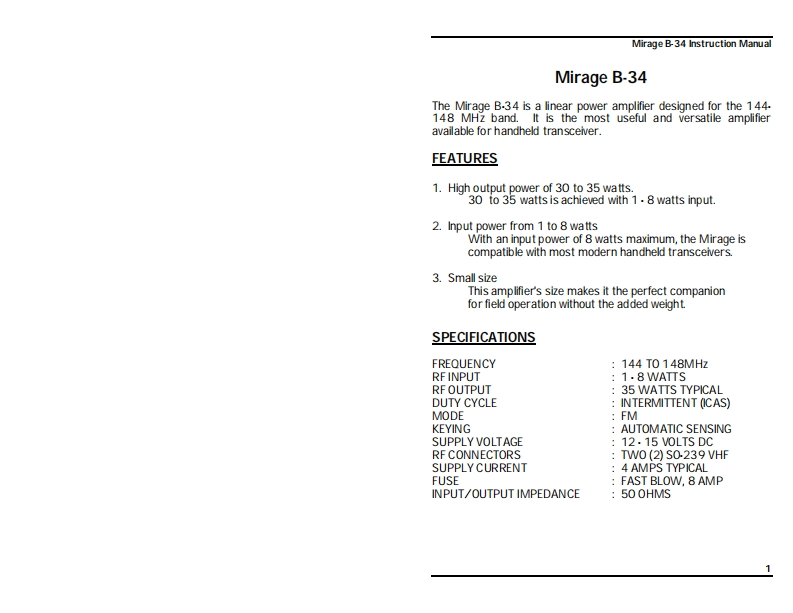

Mirage B-34 Instruction ManualMirage B-34The Mirage B-34 is a linear power amplifier designed for the 144.148 MHz band.It is the most useful and versatile amplifieravailable for handheld transceiver.FEATURES1.High output power of 30 to 35 watts.30 to 35 watts is achieved with 1.8 watts input.2.Input power from 1 to 8 wattsWith an input power of 8 watts maximum,the Mirage iscompatible with most modern handheld transceivers.3.Small sizeThis amplifier's size makes it the perfect companionfor field operation without the added weight.SPECIFICATIONSFREQUENCY：144T0148MHzRFINPUT1-8 WATTSRF OUTPUT35 WATTS TYPICALDUTY CYCLE：INTERMITTENT (ICASMODEFMKEYING：AUTOMATIC SENSINGSUPPLY VOLTAGE12.15 VOLTS DCRF CONNECTORS:TW0(2)S0-239VHFSUPPLY CURRENT：4 AMPS TYPICALFUSE：FAST BLOW,8AMPINPUT/OUTPUT IMPEDANCE：500HMS1
