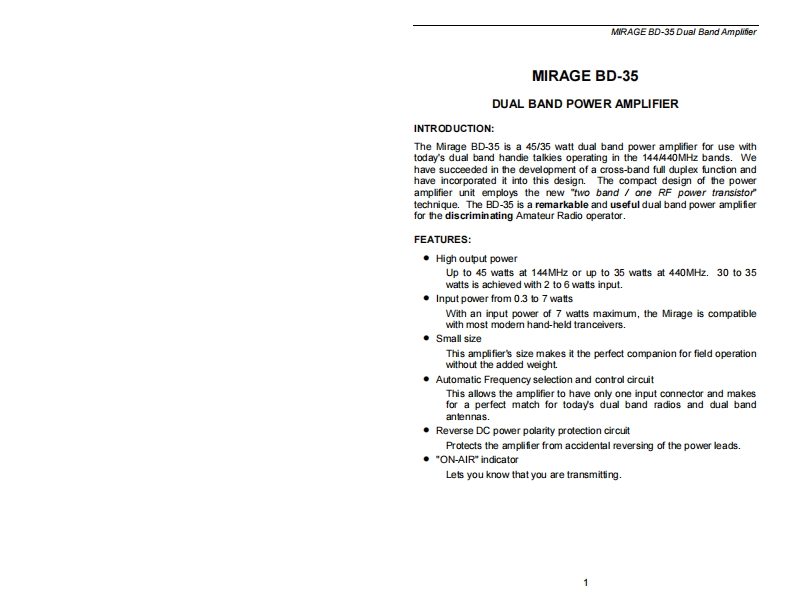

MIRAGE BD-35 Dual Band AmplierMIRAGE BD-35DUAL BAND POWER AMPLIFIERINTRODUCTION:The Mirage BD-35 is a 45/35 watt dual band power amplifier for use withtoday's dual band handie talkies operating in the 144/440MHz bands.Wehave succeeded in the development of a cross-band full duplex function andhave incorporated it into this design.The compact design of the poweramplifier unit employs the new "two band one RF power transistortechnique.The BD-35 is a remarkable and useful dual band power amplifierfor the discriminating Amateur Radio operator.FEATURES:◆High output powerUp to 45 watts at 144MHz or up to 35 watts at 440MHz.30 to 35watts is achieved with 2 to 6 watts input.Input power from 0.3 to 7 wattsWith an input power of 7 watts maximum,the Mirage is compatiblewith most modem hand-held tranceivers.●Small sizeThis amplifier's size makes it the perfect companion for field operationwithout the added weight.Automatic Frequency selection and control circuitThis allows the amplifier to have only one input connector and makesfor a perfect match for todays dual band radios and dual bandantennas..Reverse DC power polarity protection circuitProtects the amplifer from accidental reversing of the power leads.●"O-AlR'indicatorLets you know that you are transmitting.1
