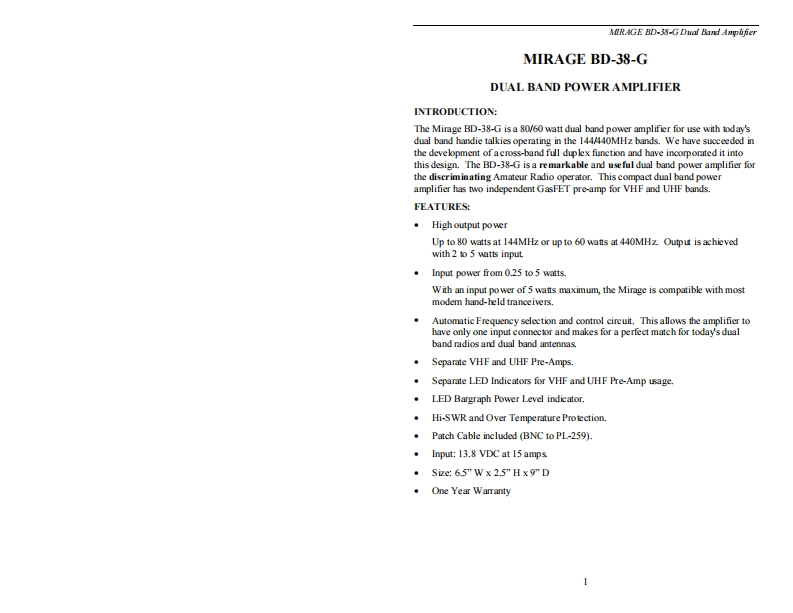

MRAGE BD-38-G Dual Band AmpbferMIRAGE BD-38-GDUAL BAND POWER AMPLIFIERINTRODUCTION:The Mirage BD-38-G is a 80/60 watt dual band power amplifier for use with today'sdual band handie talkies operating in the 1444440MHz bands.We have suoceeded inthe development of across-band full duplex function and have incorporated it intothis design.The BD-38-G is a re markable and use ful dual band power amplifier forthe diseriminating Amateur Radio operator.This compact dual band poweramplifier has two independent GasFET pre-amp for VHF and UHF bands.FEATURES:·High output powerUp to 80 watts at 144MHz or up to 60 watts at 440MHz Output is achievedwith2oSat达input..Input power from 0.25 to 5 wattsWith an input power of 5 watts maximum,the Mirage is compatible with mostmodem hand-held tranceivers..Automatic Frequency selection and control circuit.This allows the amplifier tohave only one input connector and makes for a perfect match for today's dualband radios and dual band antennasSeparate VHF and UHF Pre-Amps..Separate LED Indicators for VHF and UHF Pre-Amp usage..LED Bargraph Power Level indicator..Hi-SWR and Over Temperature Protection.Patch Cable included (BNC to PL-259).Input:13.8 VDC at 15 amps·Sze:6.5"Wx2.5"Hx9"D·One Year Warranty
