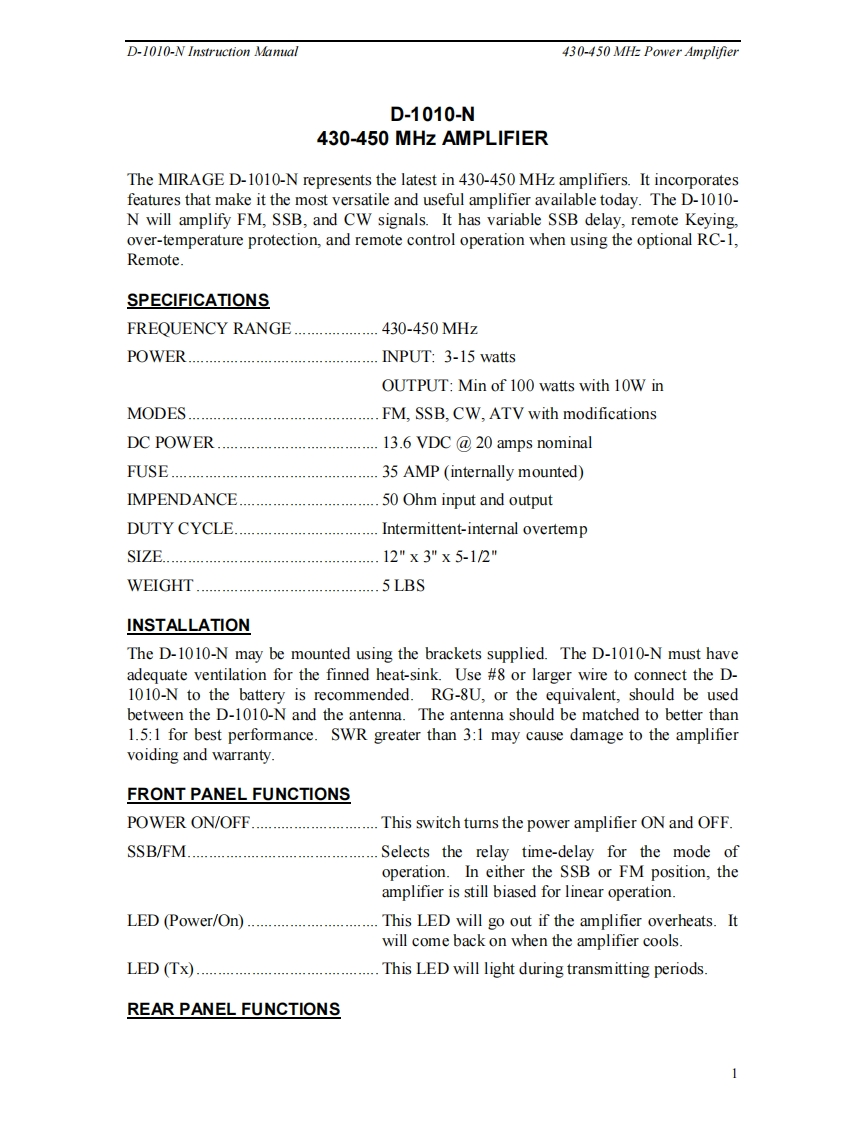

D-1010-N Instruction Manual430-450 MHE Power AmplifierD-1010-N430-450 MHz AMPLIFIERThe MIRAGE D-1010-N represents the latest in 430-450 MHz amplifiers.It incorporatesfeatures that make it the most versatile and useful amplifier available today.The D-1010-N will amplify FM,SSB,and CW signals.It has variable SSB delay,remote Keying,over-temperature protection,and remote control operation when using the optional RC-1,Remote.SPECIFICATIONSFREQUENCY RANGE....................430-450 MHzPOWERINPUT:3-15 wattsOUTPUT:Min of 100 watts with 10W inM0dES......FM,SSB,CW,ATV with modificationsDC POWER13.6 VDC 20 amps nominalFUSE35 AMP (internally mounted)IMPENDANCE.50 Ohm input and outputDUTY CYCLE.Intermittent-internal overtempSIZE.12"X3"X5-1/2"WEIGHT.......5LBSINSTALLATIONThe D-1010-N may be mounted using the brackets supplied.The D-1010-N must haveadequate ventilation for the finned heat-sink.Use #8 or larger wire to connect the D-1010-N to the battery is recommended.RG-8U,or the equivalent,should be usedbetween the D-1010-N and the antenna.The antenna should be matched to better than1.5:1 for best performance.SWR greater than 3:1 may cause damage to the amplifiervoiding and warranty.FRONT PANEL FUNCTIONSPOWER ON/OFFThis switch turns the power amplifier ON and OFF.SSB/FM.Selects the relay time-delay for the mode ofoperation.In either the SSB or FM position,theamplifier is still biased for linear operation.LED (Power/On)This LED will go out if the amplifier overheats.Itwill come back on when the amplifier cools.LEDThis LED will light during transmitting periods.REAR PANEL FUNCTIONS
