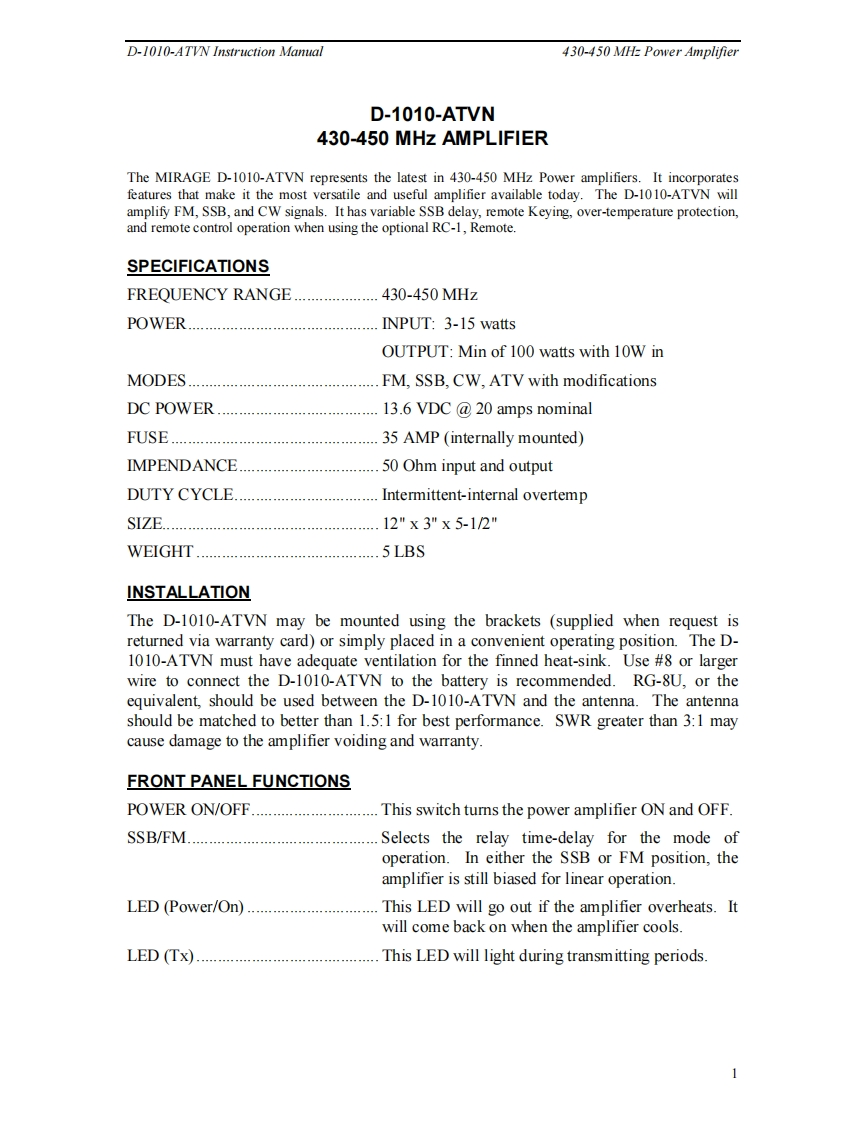

D-1010-ATVN Instruction Manual430-450 MHz Power AmplifierD-1010-ATVN430-450 MHz AMPLIFIERThe MIRAGE D-1010-ATVN represents the latest in 430-450 MHz Power amplifiers.It incorporatesfeatures that make it the most versatile and useful amplifier available today.The D-1010-ATVN willamplify FM,SSB,and CW signals.It has variable SSB delay,remote Keying,over-temperature protection,and remote control operation when using the optional RC-1,Remote.SPECIFICATIONSFREQUENCY RANGE............430-450MHzPOWER.INPUT:3-15 wattsOUTPUT:Min of 100 watts with 10W inMODES......FM,SSB,CW,ATV with modificationsDC POWER.13.6 VDC 20 amps nominalFUSE35 AMP (internally mounted)IMPENDANCE50 Ohm input and outputDUTY CYCLE...Intermittent-internal overtempSIZE..12"X3"X5-1/2"WEIGHT5IBSINSTALLATIONThe D-1010-ATVN may be mounted using the brackets (supplied when request isreturned via warranty card)or simply placed in a convenient operating position.The D-1010-ATVN must have adequate ventilation for the finned heat-sink.Use #8 or largerwire to connect the D-1010-ATVN to the battery is recommended.RG-8U,or theequivalent,should be used between the D-1010-ATVN and the antenna.The antennashould be matched to better than 1.5:1 for best performance.SWR greater than 3:1 maycause damage to the amplifier voiding and warranty.FRONT PANEL FUNCTIONSPOWER ON/OFF.This switch turns the power amplifier ON and OFF.SSB/FM.Selects the relay time-delay for the mode ofoperation.In either the SSB or FM position,theamplifier is still biased for linear operation.LED (Power/On).........This LED will go out if the amplifier overheats.Itwill come back on when the amplifier cools.LED (Tx)This LED will light during transmitting periods.
