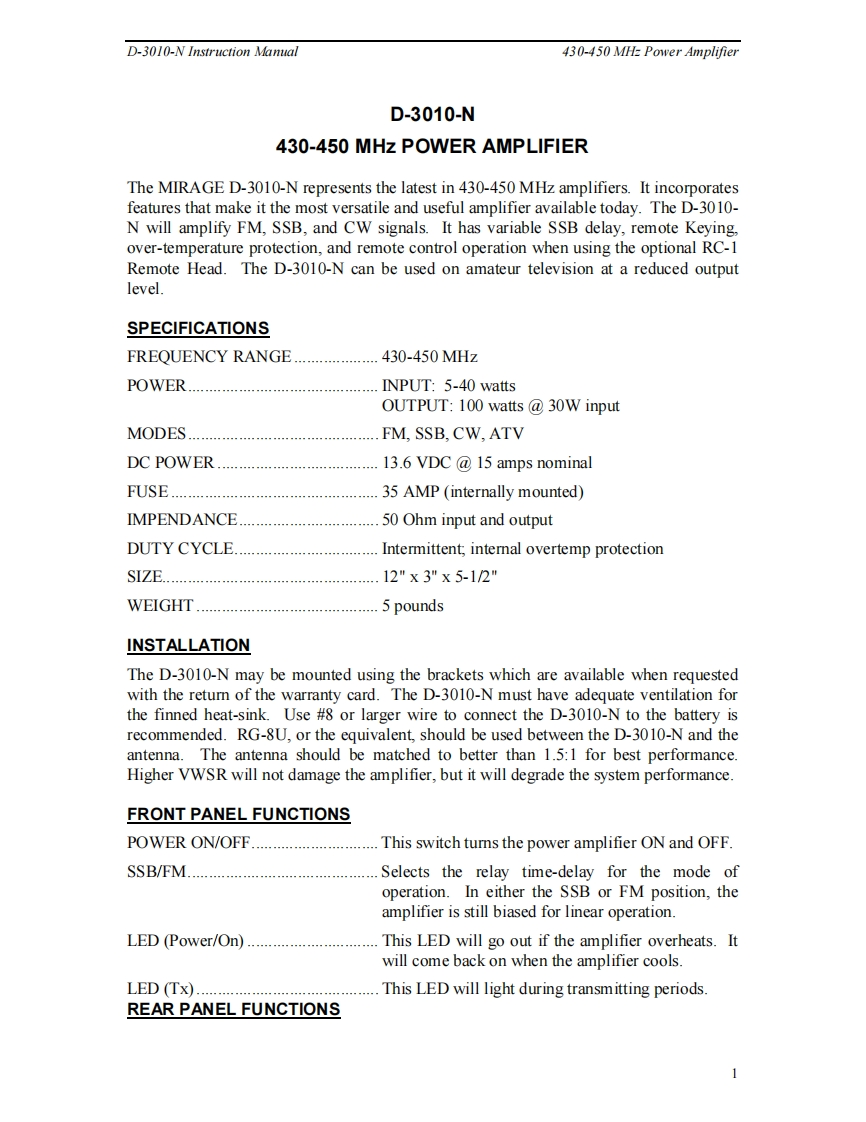

D-3010-N Instruction Manal430-450 MHE Power AmplifierD-3010-N430-450 MHz POWER AMPLIFIERThe MIRAGE D-3010-N represents the latest in 430-450 MHz amplifiers.It incorporatesfeatures that make it the most versatile and useful amplifier available today.The D-3010-N will amplify FM,SSB,and CW signals.It has variable SSB delay,remote Keying,over-temperature protection,and remote control operation when using the optional RC-1Remote Head.The D-3010-N can be used on amateur television at a reduced outputlevel.SPECIFICATIONSFREQUENCY RANGE......430-450MHzpoWER.INPUT:5-40 wattsOUTPUT:100 watts 30W input、M0D6.2FM,SSB,CW,ATVDC POWER.13.6 VDC 15 amps nominalFUSE35 AMP (internally mounted)IMPENDANCE...50 Ohm input and outputDUTY CYCLEIntermittent;internal overtemp protectionSIZE12"x3"x5-1/2"WEIGHT5 poundsINSTALLATIONThe D-3010-N may be mounted using the brackets which are available when requestedwith the return of the warranty card.The D-3010-N must have adequate ventilation forthe finned heat-sink.Use #8 or larger wire to connect the D-3010-N to the battery isrecommended.RG-8U,or the equivalent,should be used between the D-3010-N and theantenna.The antenna should be matched to better than 1.5:1 for best performance.Higher VWSR will not damage the amplifier,but it will degrade the system performance.FRONT PANEL FUNCTIONSPOWER ON/OFF.This switch turns the power amplifier ON and OFF.SSB/FM..Selects the relay time-delay for the mode ofoperation.In either the SSB or FM position,theamplifier is still biased for linear operation.LED (Power/On).This LED will go out if the amplifier overheats.Itwill come back on when the amplifier cools.LED (Tx)....This LED will light during transmitting periodsREAR PANEL FUNCTIONS
