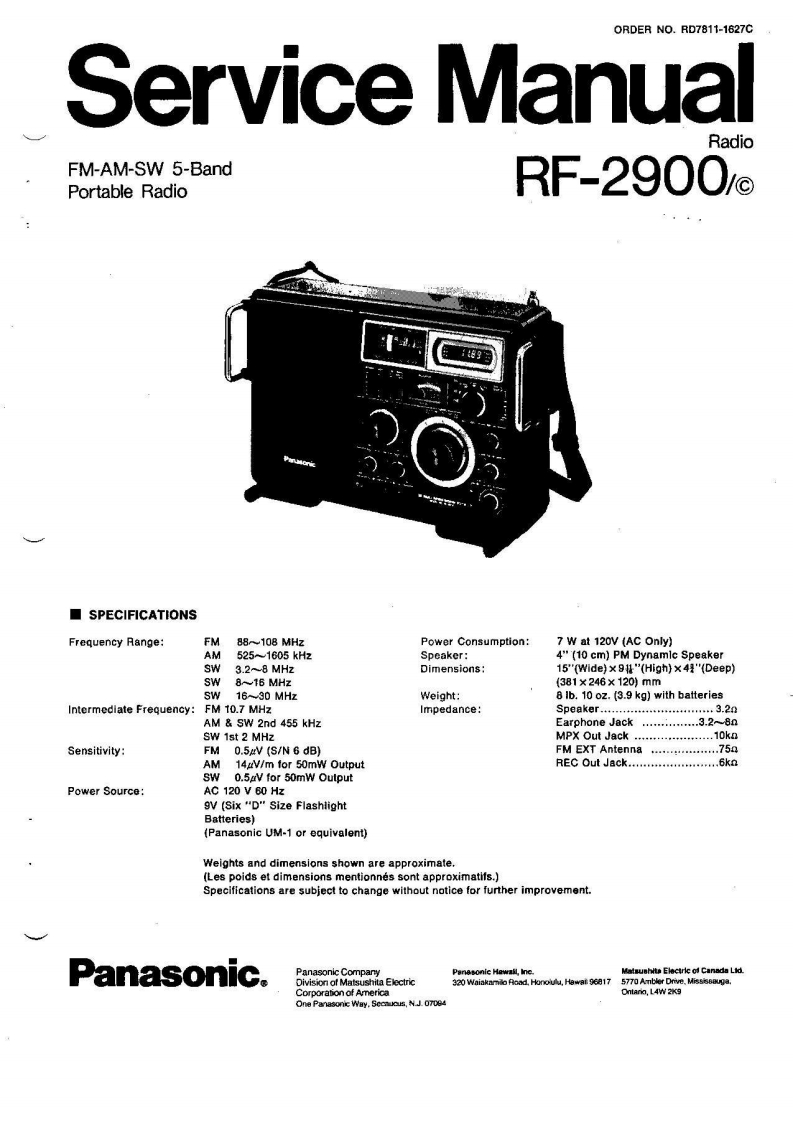

ORDER NO.RD7811-1627CService ManualRadioFM-AM-SW 5-BandPortable RadioRF-2900e■SPECIFICATIONSFrequency Range:FM88108MHzPower Consumption:7 W at 120V (AC Only)AM525-1605kHzSpeaker:4"(10 cm)PM Dynamlc SpeakerSW3.2~8 MHzDimensions:15"wde)×9∥”(High)×4"(Deep)SW8~16 MHz(381×246×120)mmSW16~30 MHzWeight:8 Ib.10 oz.(3.9 kg)with batteriesIntermediate Frequency:FM 10.7 MHzImpedance:Speaker.......................3.2AM SW 2nd 455 kHzEarphone Jacki.328nSW 1st 2 MHzMPX Out Jack.10knSensitivity:FM 0.54V (S/N 6 dB)FM EXT Antenna750AM14gV/m for 50mW OutputREC Out Jack........................6oSW 0.5aV for 50mW OuloutPower Source:AC 120 V 60 Hz9V (Six"D"Size FlashlightBatteries)(Panasonic UM-1 or equivalent)Weights and dimensions shown are approximate.(Les poids et dimensions mentionnes sont approximatifs.)Specifications are subject to change without notice for further improvement.Panasonic.Panasonic CompanyPanasonic Hewall,Ine.Division of Matsushita Electric320 Waiakamlo Road,Honolulu,Hawal 96817 5770 Ambler Drive.Mississauga.Corporation of AmericaOntaro,L4W 2K9
