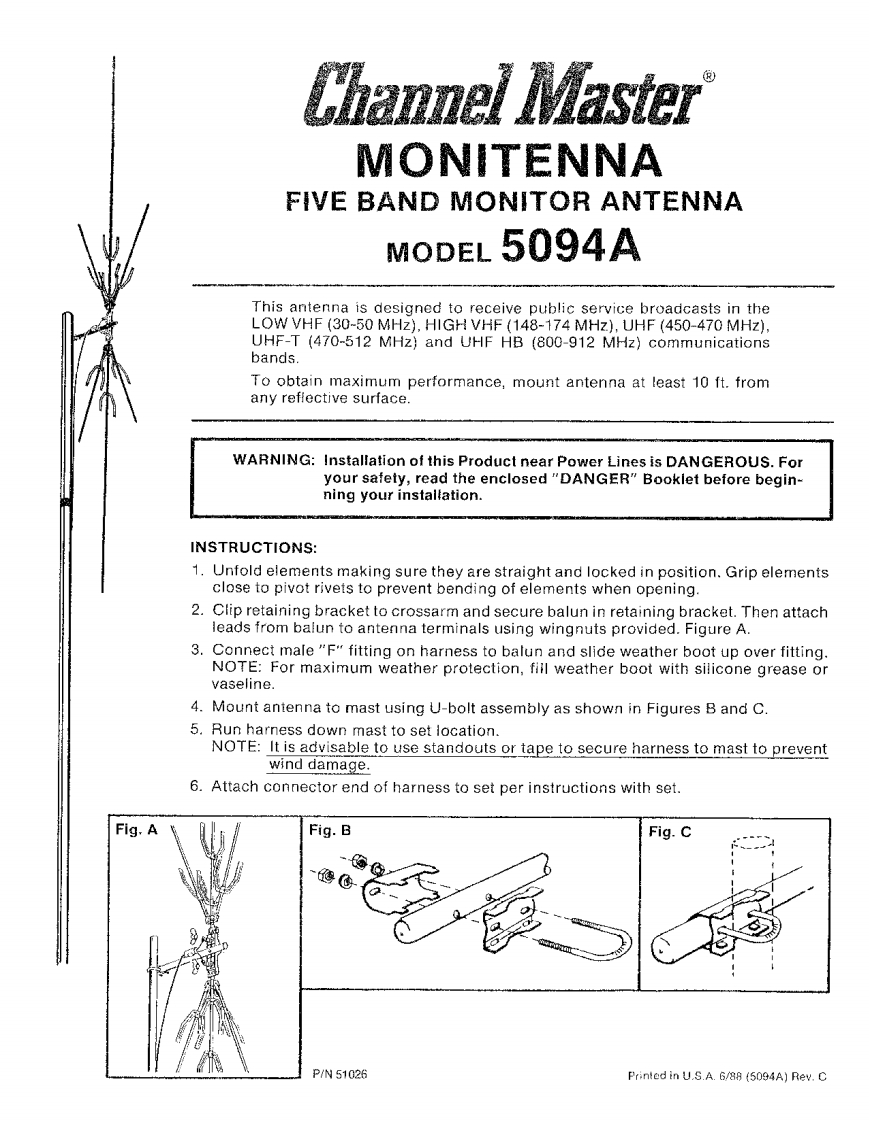

MONITENNAFIVE BAND MONITOR ANTENNAMODEL 5094AThis antenna is designed to receive public service broadcasts in theLOW VHF (30-50 MHz),HIGH VHF (148-174 MHz),UHF (450-470 MHz),UHF-T (470-512 MHz)and UHF HB (800-912 MHz)communicationsbands.To obtain maximum performance,mount antenna at least 10 ft.fromany reffective surface.WARNING:Installation of this Product near Power Lines is DANGEROUS.Foryour safety,read the enclosed "DANGER"Booklet before begin-ning your installation.INSTRUCTIONS:1.Unfold elements making sure they are straight and locked in position.Grip elementsclose to pivot rivets to prevent bending of elements when opening.2.Clip retaining bracket to crossarm and secure balun in retaining bracket.Then attachleads from balun to antenna terminals using wingnuts provided.Figure A.3.Connect male"F"fitting on harness to balun and slide weather boot up over fitting.NOTE:For maximum weather protection,fiil weather boot with silicone grease orvaseline.4.Mount antenna to mast using U-bolt assembly as shown in Figures B and C.5.Run harness down mast to set location.NOTE:It is advisable to use standouts or tape to secure harness to mast to preventwind damage.6.Attach connector end of harness to set per instructions with set.Fig.AFig.BFig.C碜①P/N51026Printed in U.S.A.6/88 (5094A)Rev.C
