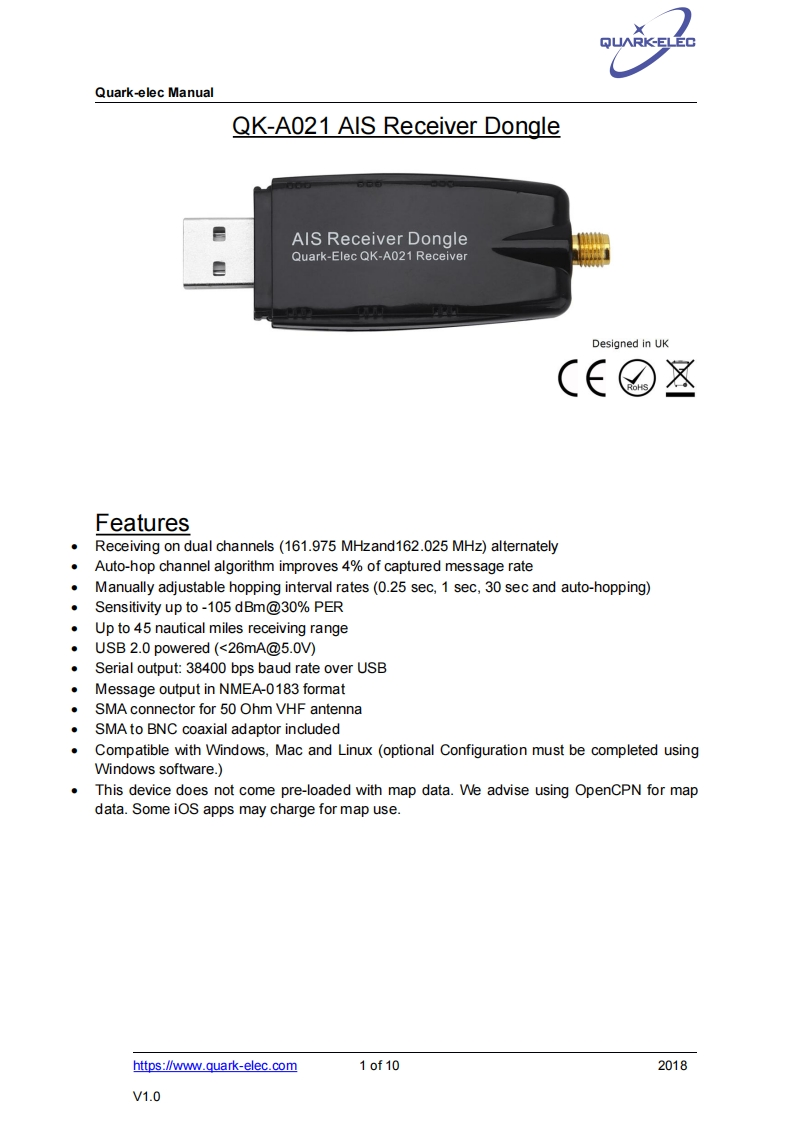

QUARK-ELECQuark-elec ManualQK-A021 AIS Receiver DongleAlS Receiver DongleQuark-Elec QK-A021 ReceiverDesigned in UK(∈©☒FeaturesReceiving on dual channels (161.975 MHzand162.025 MHz)alternatelyAuto-hop channel algorithm improves 4%of captured message rateManually adjustable hopping interval rates(0.25 sec,1 sec,30 sec and auto-hopping)Sensitivity up to -105 dBm@30%PERUp to 45 nautical miles receiving rangeUSB 2.0 powered (<26mA@5.0V)Serial output:38400 bps baud rate over USBMessage output in NMEA-0183 formatSMA connector for 50 Ohm VHF antennaSMA to BNC coaxial adaptor includedCompatible with Windows,Mac and Linux (optional Configuration must be completed usingWindows software.)This device does not come pre-loaded with map data.We advise using OpenCPN for mapdata.Some iOS apps may charge for map use.https://www.quark-elec.com10f102018V1.0
