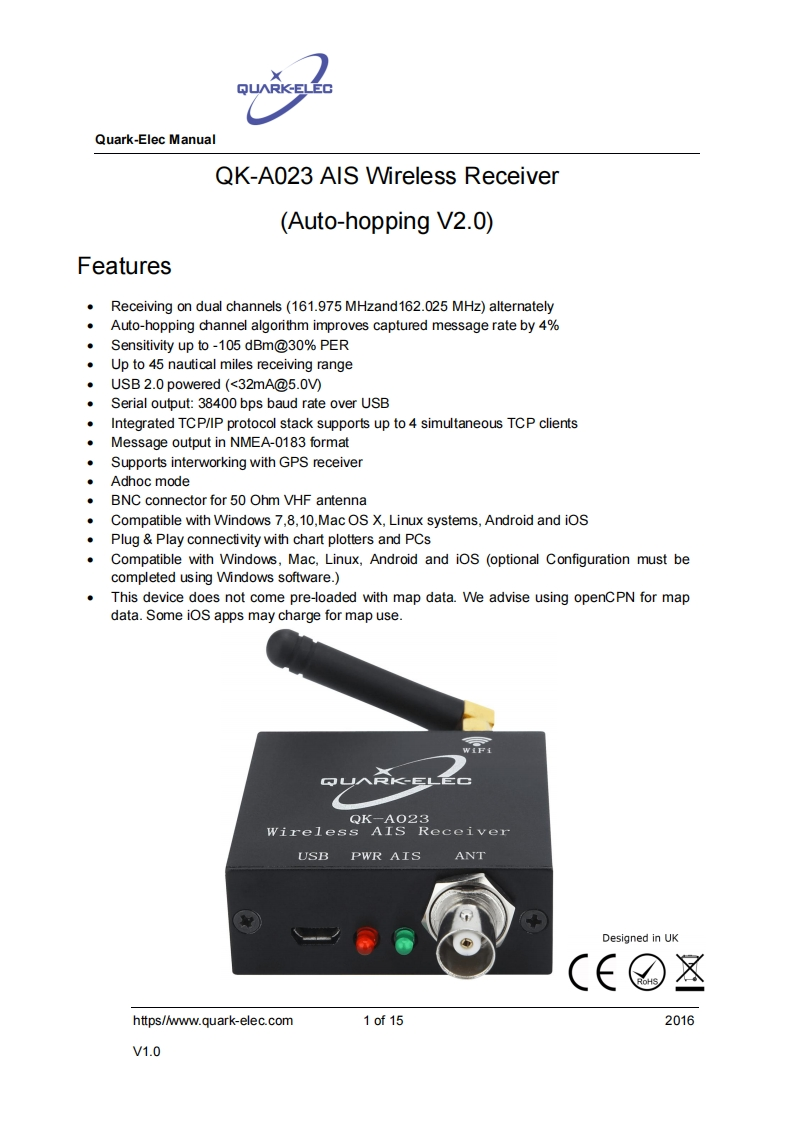

QUARK-ELECQuark-Elec ManualQK-A023 AlS Wireless Receiver(Auto-hopping V2.0)FeaturesReceiving on dual channels(161.975 MHzand162.025 MHz)alternatelyAuto-hopping channel algorithm improves captured message rate by 4%Sensitivity up to -105 dBm@30%PERUp to 45 nautical miles receiving rangeUSB 2.0 powered (<32mA@5.0V)Serial output:38400 bps baud rate over USBIntegrated TCP/IP protocol stack supports up to 4 simultaneous TCP clientsMessage output in NMEA-0183 formatSupports interworking with GPS receiverAdhoc modeBNC connector for 50 Ohm VHF antennaCompatible with Windows 7,8,10,Mac OS X,Linux systems,Android and iOSPlug Play connectivity with chart plotters and PCsCompatible with Windows,Mac,Linux,Android and iOS (optional Configuration must becompleted using Windows software.)This device does not come pre-loaded with map data.We advise using openCPN for mapdata.Some iOS apps may charge for map use.可LUJ入RK-三LEQK-A023Wireless AIS ReceiverUSB PWR AISANTDesigned in UKhttps//www.quark-elec.com10f152016V1.0
