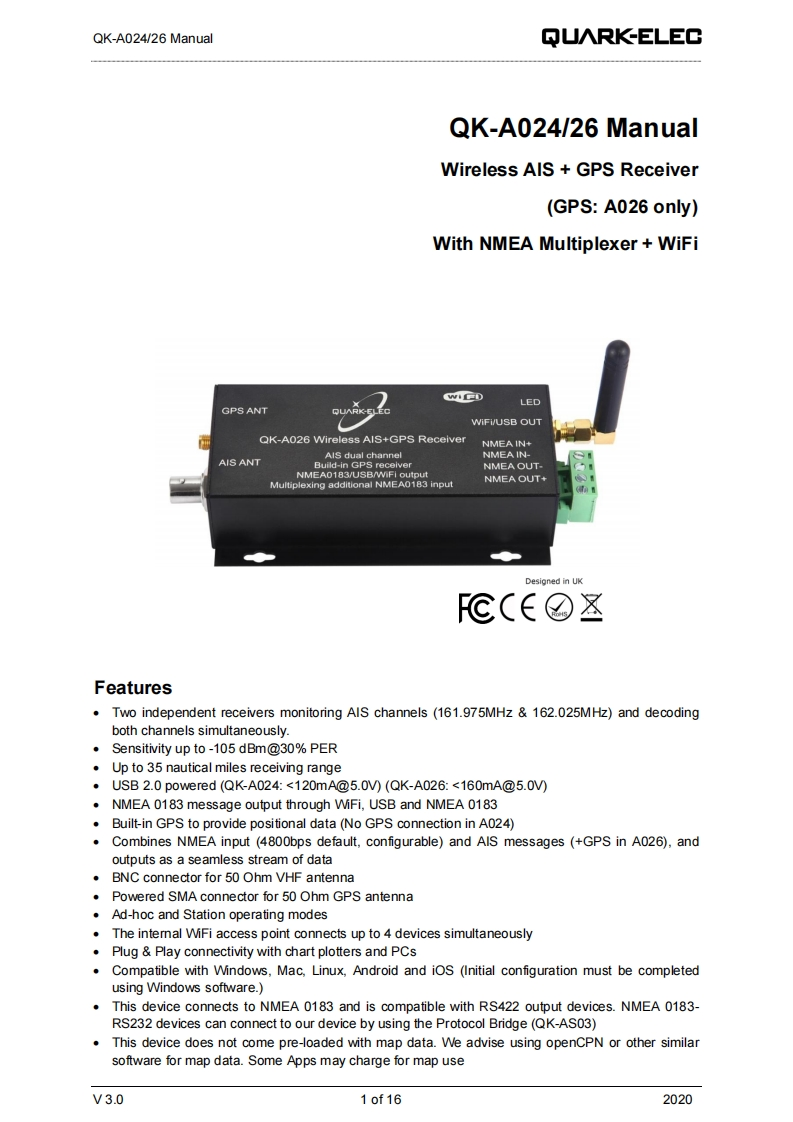

QK-A024/26 Manual▣JARKELECQK-A024/26 ManualWireless AIS GPS Receiver(GPS:A026 only)With NMEA Multiplexer WiFiwILEDGPS ANTWiFi/USB OUTQK-A026 Wireless AlS+GPS ReceiverNMEA IN+AIS dual channelNMEA IN-AIS ANTBuild-in GPS receiverNMEA OUT-NMEA0183/USB/WIFI outputMultiplexing additional NMEA0183 inputNMEA OUT+Designed in UKFC(E©☒FeaturesTwo independent receivers monitoring AlS channels (161.975MHz 162.025MHz)and decodingboth channels simultaneously.Sensitivity up to-105 dBm@30%PERUp to 35 nautical miles receiving range·USB2.0 powered(QKA024:<120mA@5.0V)(QK-A026:<160mA@5.0V)NMEA 0183 message output through WiFi,USB and NMEA 0183.Built-in GPS to provide positional data(No GPS connection in A024)Combines NMEA input (4800bps default,configurable)and AlS messages (+GPS in A026),andoutputs as a seamless stream of dataBNC connector for 50 Ohm VHF antennaPowered SMA connector for 50 Ohm GPS antennaAd-hoc and Station operating modesThe internal WiFi access point connects up to 4 devices simultaneouslyPlug Play connectivity with chart plotters and PCsCompatible with Windows,Mac,Linux,Android and iOS (Initial configuration must be completedusing Windows software.)This device connects to NMEA 0183 and is compatible with RS422 output devices.NMEA 0183-RS232 devices can connect to our device by using the Protocol Bridge (QK-AS03)This device does not come pre-loaded with map data.We advise using openCPN or other similarsoftware for map data.Some Apps may charge for map useV3.010f162020
