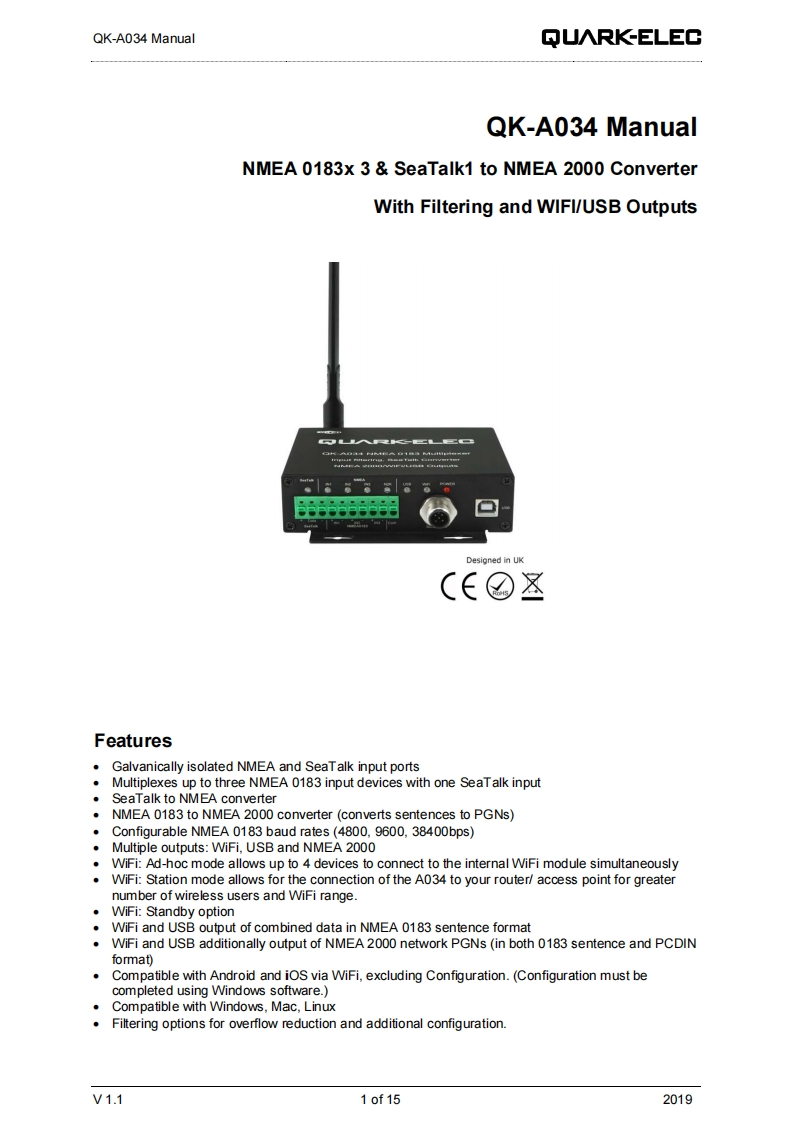

QK-A034 ManualQUARK-ELECQK-A034 ManualNMEA 0183x 3 SeaTalk1 to NMEA 2000 ConverterWith Filtering and WIFI/USB OutputsDesigned in UK(∈☑☒FeaturesGalvanically isolated NMEA and SeaTalk input portsMultiplexes up to three NMEA 0183 input devices with one SeaTalk inputSeaTalk to NMEA converterNMEA 0183 to NMEA 2000 converter(converts sentences to PGNs)Configurable NMEA 0183 baud rates (4800,9600.38400bps).Multiple outputs:WiFi.USB and NMEA 2000WiFi:Ad-hoc mode allows up to 4 devices to connect to the internal WiFi module simultaneouslyWiFi:Station mode allows for the connection of the A034 to your router/access point for greaternumber of wireless users and WiFi range.·WiFi:Standby optionWiFi and USB output of combined data in NMEA 0183 sentence formatWiFi and USB additionally output of NMEA 2000 network PGNs (in both 0183 sentence and PCDINformat)Compatible with Android and iOS via WiFi,excluding Configuration.(Configuration must becompleted using Windows software.).Compatible with Windows,Mac,LinuxFiltering options for overflow reduction and additional configuration.V1.110f152019
