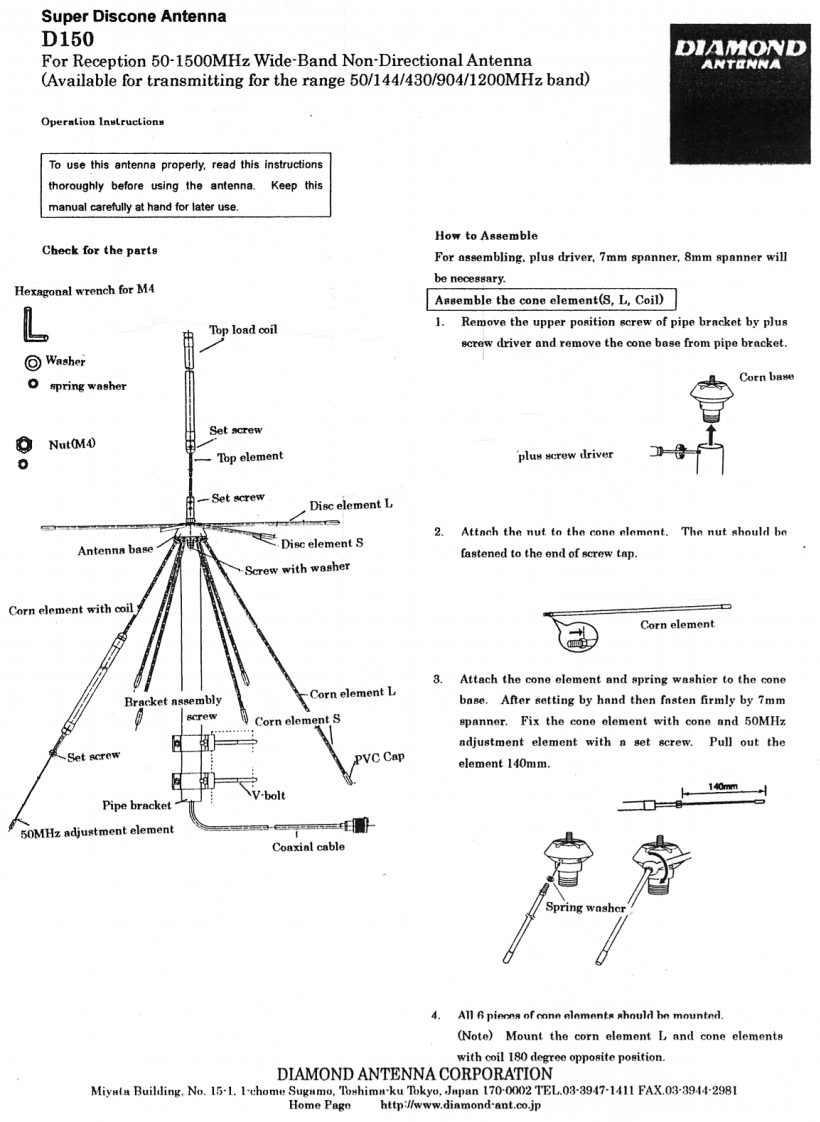

Super Discone AntennaD150DIAMONDFor Reception 50-1500MHz Wide-Band Non-Directional AntennaANT江NNA(Available for transmitting for the range 50/144/430/904/1200MHz band)Operalion InslruclionsTo use this antenna properly,read this instructionsthoroughly before using the antenna.Keep thismanual carefully at hand for later use.How to AssembleCheck for the partsFor assembling.plus driver,7mm spanner,8mm spanner willHexagonal wrench for M4be necessary.Assemble the cone element(S,L,Coil)LTop load coil1.Remove the upper position screw of pipe bracket by plusecrew driver and remove the cone base from pipe bracket.回WasherCorn basespring washerSet screwNut(MA0Top elementplus screw driverSet screwDisc element LDinc element S2.Attnch the nut to the cone element.The nut should beAntenna basefastened to the end of screw tap.Screw with washerCorn element with coilCorn element3.Attach the cone element and spring washier to the coneBracket assemblyCorn element Lbase.After setting by hand then fasten firmly by 7mmscrewCorn element Sspanner.Fix the cone element with cone and 50MHzadjustment element with n set screw.Pull out theSet screwPVC Capelement 140mm140mV-boltPipe bracket50MHz adjustment elementCoaxial cableSpring washer4.All 6 pieces of cone elements should be mounted.(Note)Mount the corn element L and cone elementswith coil 180 degree opposite position.DIAMOND ANTENNA CORPORATIONMiyula Building.No.15-1.I-chome Sugumo,Toshimn-ku Tokyo,Japan 170-0002 TEL.03-3947-1411 FAX.03-3944-2981Home Pagehttp://www.diamond-ant.co.jp
