Robyn_3000_Manual操作说明书手册

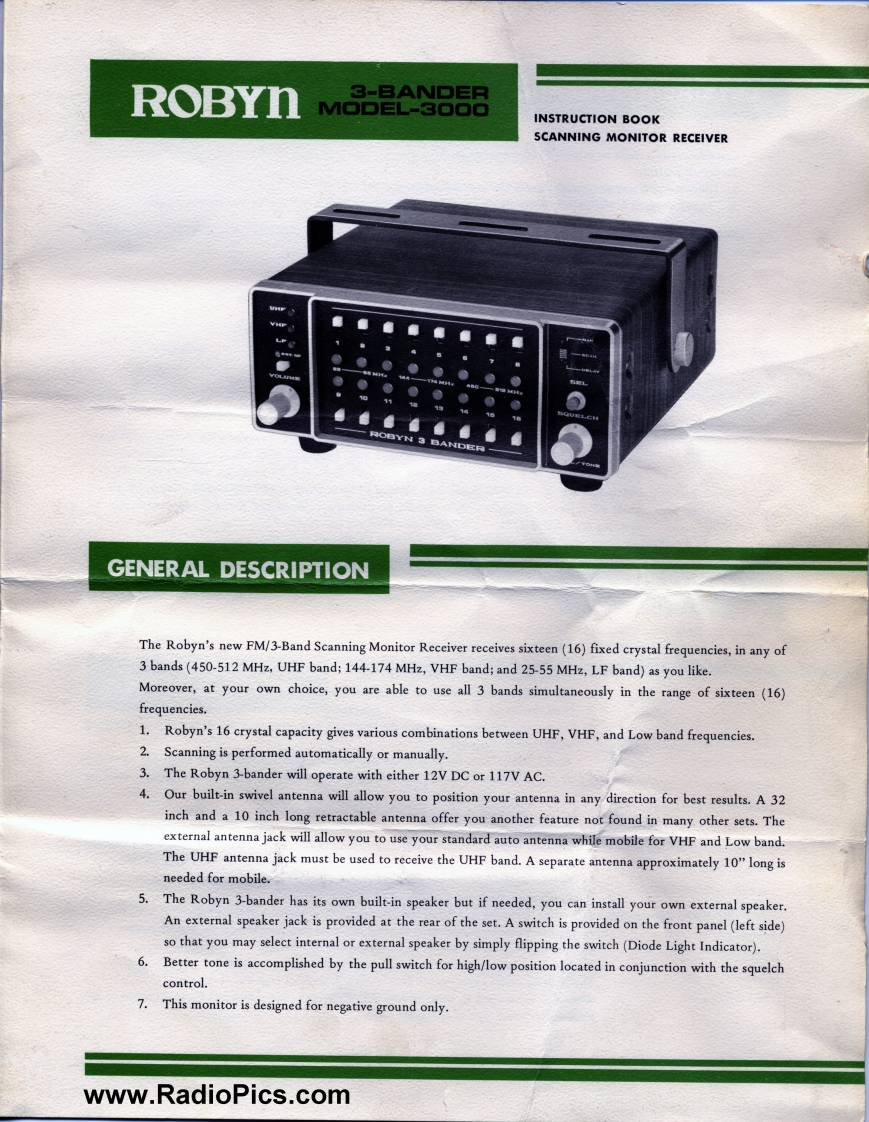

ROBYn3-BANDE月MODEL-3000INSTRUCTION BOOKSCANNING MONITOR RECEIVERGENERAL DESCRIPTIONThe Robyn's new FM/3-Band Scanning Monitor Receiver receives sixteen(16)fixed crystal frequencies,in any of3 bands(450-512 MHz,UHF band;144-174 MHz,VHF band;and 25-55 MHz,LF band)as you like.Moreover,at your own choice,you are able to use all 3 bands simultaneously in the range of sixteen (16)frequencies.1.Robyn's 16 crystal capacity gives various combinations between UHF,VHF,and Low band frequencies.2.Scanning is performed automatically or manually.3.The Robyn 3-bander will operate with either 12V DC or 117V AC.4.Our built-in swivel antenna will allow you to position your antenna in any direction for best results.A 32inch and a 10 inch long retractable antenna offer you another feature not found in many other sets.Theexternal antenna jack will allow you to use your standard auto antenna while mobile for VHF and Low band.The UHF antenna jack must be used to receive the UHF band.A separate antenna approximately 10"long isneeded for mobile.5.The Robyn 3-bander has its own built-in speaker but if needed,you can install your own external speaker.An external speaker jack is provided at the rear of the set.A switch is provided on the front panel(left side)so that you may select internal or external speaker by simply flipping the switch (Diode Light Indicator).6.Better tone is accomplished by the pull switch for high/low position located in conjunction with the squelchcontrol.7.This monitor is designed for negative ground onlywww.RadioPics.com
