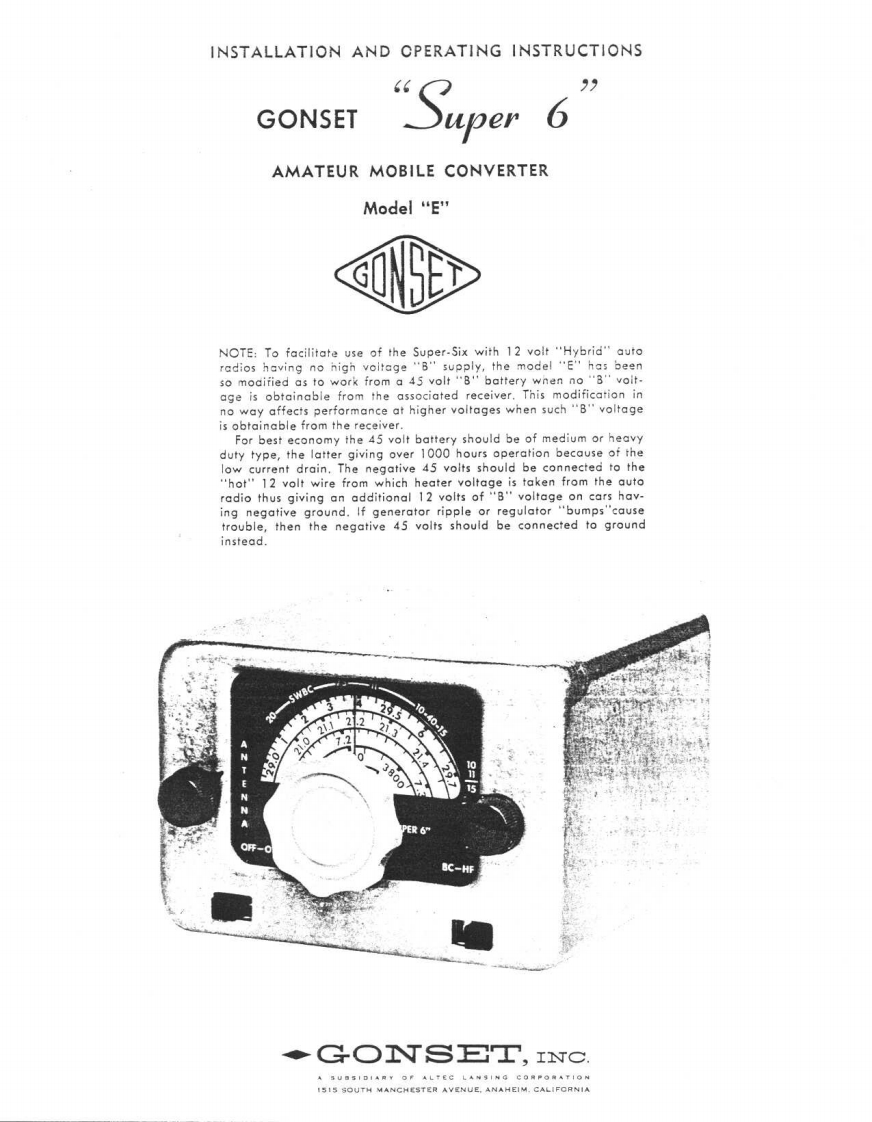

INSTALLATION AND CPERATING INSTRUCTIONSGONSETAMATEUR MOBILE CONVERTERModel“E'NOTE:To facilitate use of the Super-Six with 12 volt "Hybrid"autoradios having no high voitage"B"supply,the model "E"has beenso modified as to work from a 45 volt"B"battery wnen no"'B"voit.age is obtainable from the associated receiver.This modification inno way affects performance at higher voitages when such"B"voltageis obtainable from the receiver.For best economy the 45 volt battery should be of medium or heavyduty type,the latter giving over 1000 hours operation because of thelow current drain.The negative 45 volts should be connected to the"hot''12 volt wire from which heater voltage is taken from the autoradio thus giving an additional 12 volts of"B"voltage on cars hav-ing negative ground.If generator ripple or regulator "bumps"'causetrouble,then the negative 45 volts should be connected to groundinstead.380015GO工TG包I,IrC1515 SOUTH MANCHESTER AVENUE,ANAHEIM.CALIFORNIA
