Truscan_SW1600_OperatingGuide操作说明书手册

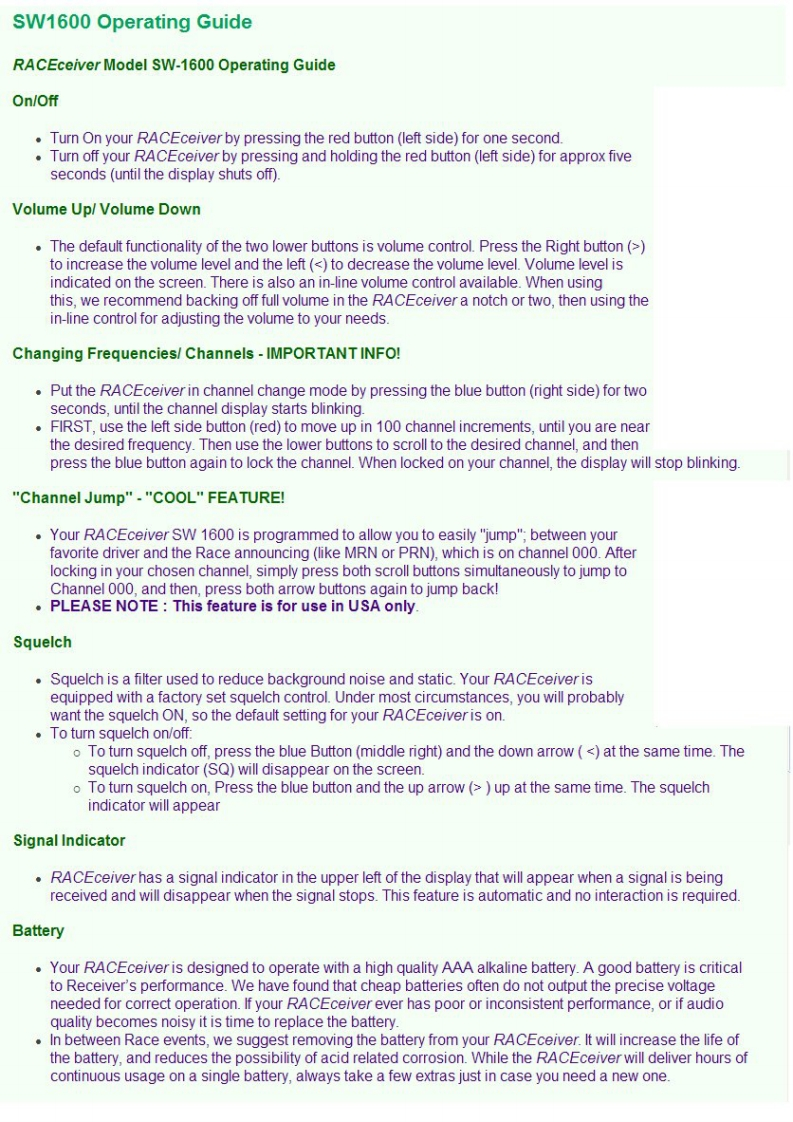

SW1600 Operating GuideRACEceiver Model SW-1600 Operating GuideOn/OffTurn On your RACEceiver by pressing the red button(left side)for one secondTurn off your RACEceiver by pressing and holding the red button (left side)for approx fiveseconds(until the display shuts off).Volume Up/Volume DownThe default functionality of the two lower buttons is volume control.Press the Right button (>to increase the volume level and the left(<)to decrease the volume level.Volume level isindicated on the screen.There is also an in-line volume control available.When usingthis,we recommend backing off full volume in the RACEceiver a notch or two,then using thein-line control for adjusting the volume to your needs.Changing Frequencies/Channels-IMPORTANT INFO!Put the RACEceiver in channel change mode by pressing the blue button(right side)for twoseconds,until the channel display starts blinking.FIRST,use the left side button (red)to move up in 100 channel increments,until you are nearthe desired frequency.Then use the lower buttons to scroll to the desired channel,and thenpress the blue button again to lock the channel.When locked on your channel,the display will stop blinking."Channel Jump"-"COOL"FEATURE!Your RACEceiver SW 1600 is programmed to allow you to easily "jump";between yourfavorite driver and the Race announcing (like MRN or PRN),which is on channel 000.Afterlocking in your chosen channel,simply press both scroll buttons simultaneously to jump toChannel 000,and then,press both arrow buttons again to jump back!PLEASE NOTE This feature is for use in USA only.SquelchSquelch is a filter used to reduce background noise and static.Your RACEceiverisequipped with a factory set squelch control.Under most circumstances,you will probablywant the squelch ON,so the default setting for your RACEceiver is on.To turn squelch on/off:o To turn squelch off,press the blue Button (middle right)and the down arrow (<)at the same time.Thesquelch indicator(SQ)will disappear on the screen.o To turn squelch on,Press the blue button and the up arrow(>)up at the same time.The squelchindicator will appearSignal IndicatorRACEceiver has a signal indicator in the upper left of the display that will appear when a signal is beingreceived and will disappear when the signal stops.This feature is automatic and no interaction is required.BatteryYour RACEceiver is designed to operate with a high quality AAA alkaline battery.A good battery is criticalto Receiver's performance.We have found that cheap batteries often do not output the precise voltageneeded for correct operation.If your RACEceiver ever has poor or inconsistent performance,or if audioquality becomes noisy it is time to replace the battery.In between Race events,we suggest removing the battery from your RACEceiver.It will increase the life ofthe battery,and reduces the possibility of acid related corrosion.While the RACEceiver will deliver hours ofcontinuous usage on a single battery,always take a few extras just in case you need a new
