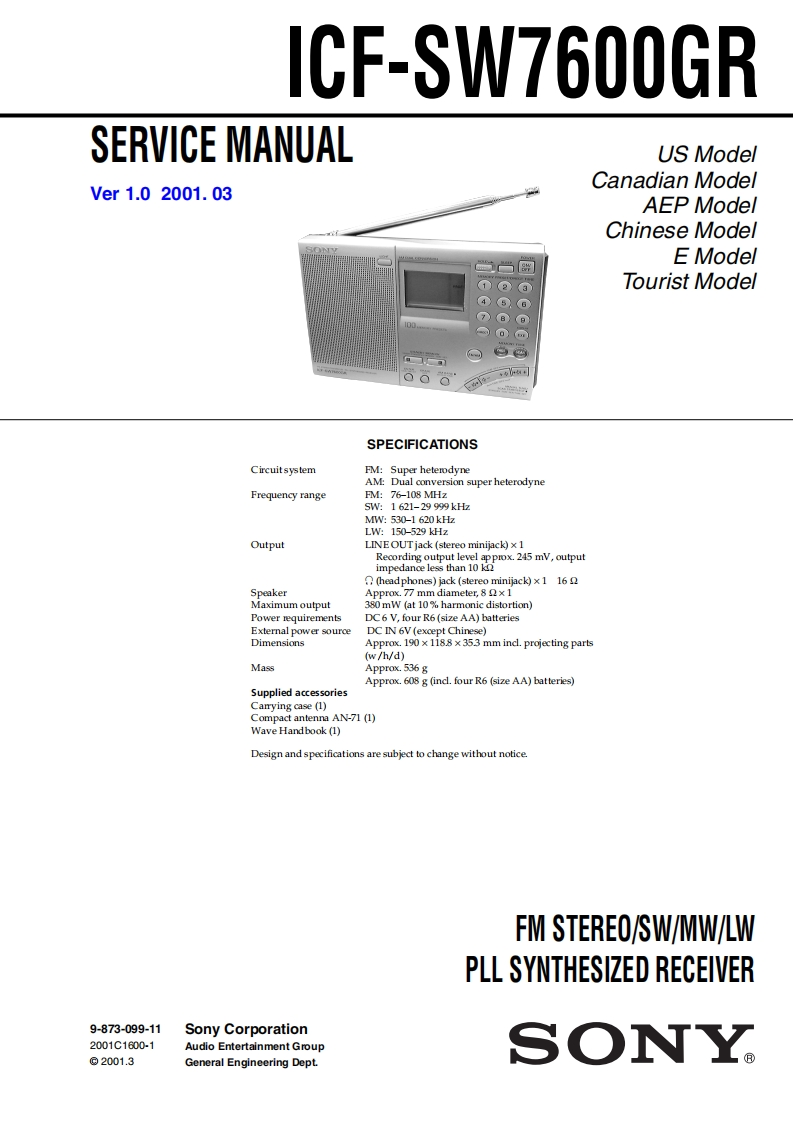

ICF-SW7600GRSERVICE MANUALUS ModelVer1.02001.03Canadian ModelAEP ModelChinese ModelEModel1(23Tourist Model46】0)m0a61SPECIFICATIONSCircuit systemFM:Super heterodyneAM:Dual conversion super heterodyneFrequency rangeFM:76-108 MHzSW:1621-29999kHzMW:530-1620kHzLW:150-529kHzOutputLINE OUTjack (stereo minijack)x 1Recording output level approx.245 mV,outputimpedance less than 10khead phones)jadk(stereo minijack)×1l6ΩSpeakerApprox.77 mm diameter,8Ω×1Maximum output380 mW (at 10%harmonic distortion)Power requirementsDC6 V,four R6(size AA)batteriesExternal power sourceDC IN 6V (exoept Chinese)DimensionsApprox.190 x 1188 x 353 mm incl.projecting parts(w/h/d)MassApprox.536 gApprox.608g(incl.four R6(sizeAA)batteries)Supplied accessoriesCamying case (1)Compact antenna AN-71 (1)Wave Handbook (1)Design and specifications are subject to change without notice.FM STEREO/SW/MW/LWPLL SYNTHESIZED RECEIVER9-873-099-11Sony Corporation2001C1600-1Audio Entertainment Group⊙2001.3SONYGeneral Engineering Dept.
