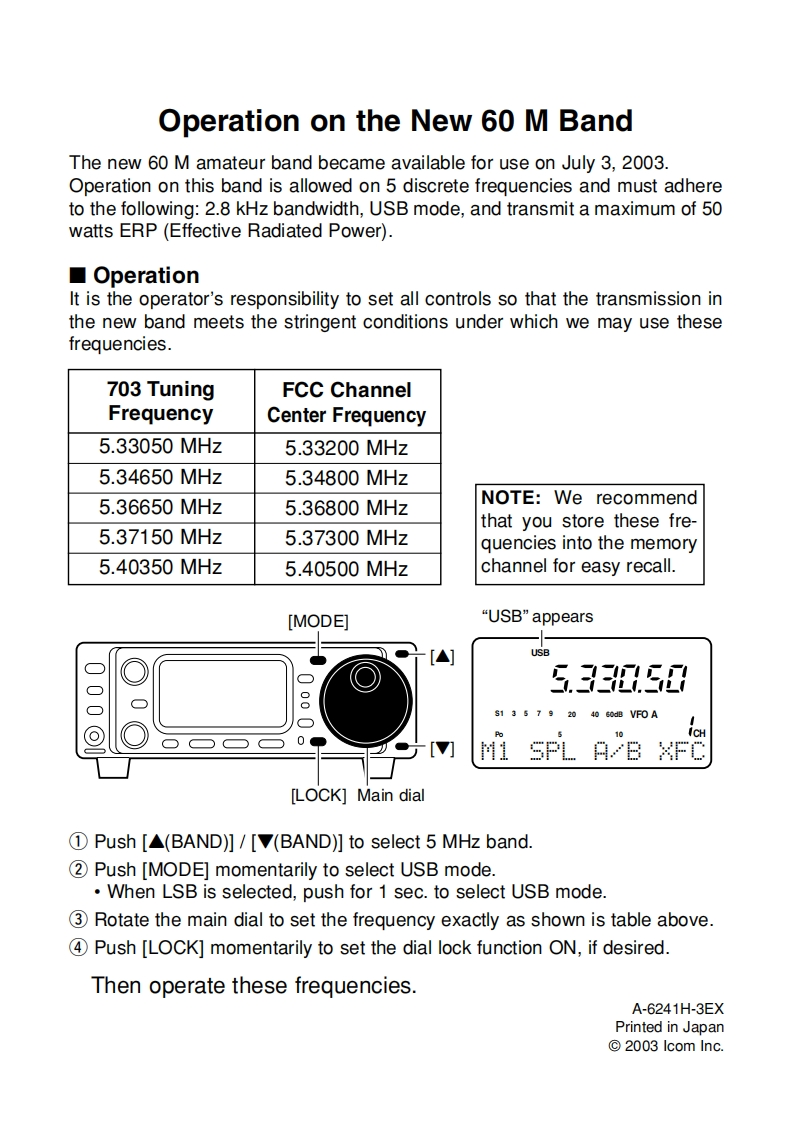

Operation on the New 60 M BandThe new 60 M amateur band became available for use on July 3,2003.Operation on this band is allowed on 5 discrete frequencies and must adhereto the following:2.8 kHz bandwidth,USB mode,and transmit a maximum of 50watts ERP (Effective Radiated Power).■OperationIt is the operator's responsibility to set all controls so that the transmission inthe new band meets the stringent conditions under which we may use thesefrequencies.703 TuningFCC ChannelFrequencyCenter Frequency5.33050MHz5.33200MHz5.34650MHz5.34800MHz5.36650MHz5.36800MHzNOTE:We recommendthat you store these fre-5.37150MHz5.37300MHzquencies into the memory5.40350MHz5.40500MHzchannel for easy recall.[MODE]USB”appears]USB55513579204060dBVF0A10CH1SPL A/B XFC[LOCK]Main dial①Push[▲(BAND】/[T(BAND]to select5 MHz band.②Push[MOD目momentarily to select USB mode..When LSB is selected,push for 1 sec.to select USB mode.3 Rotate the main dial to set the frequency exactly as shown is table above.4 Push [LOCK]momentarily to set the dial lock function ON,if desired.Then operate these frequencies.A-6241H-3EXPrinted in Japan©2003 Icom Inc.
