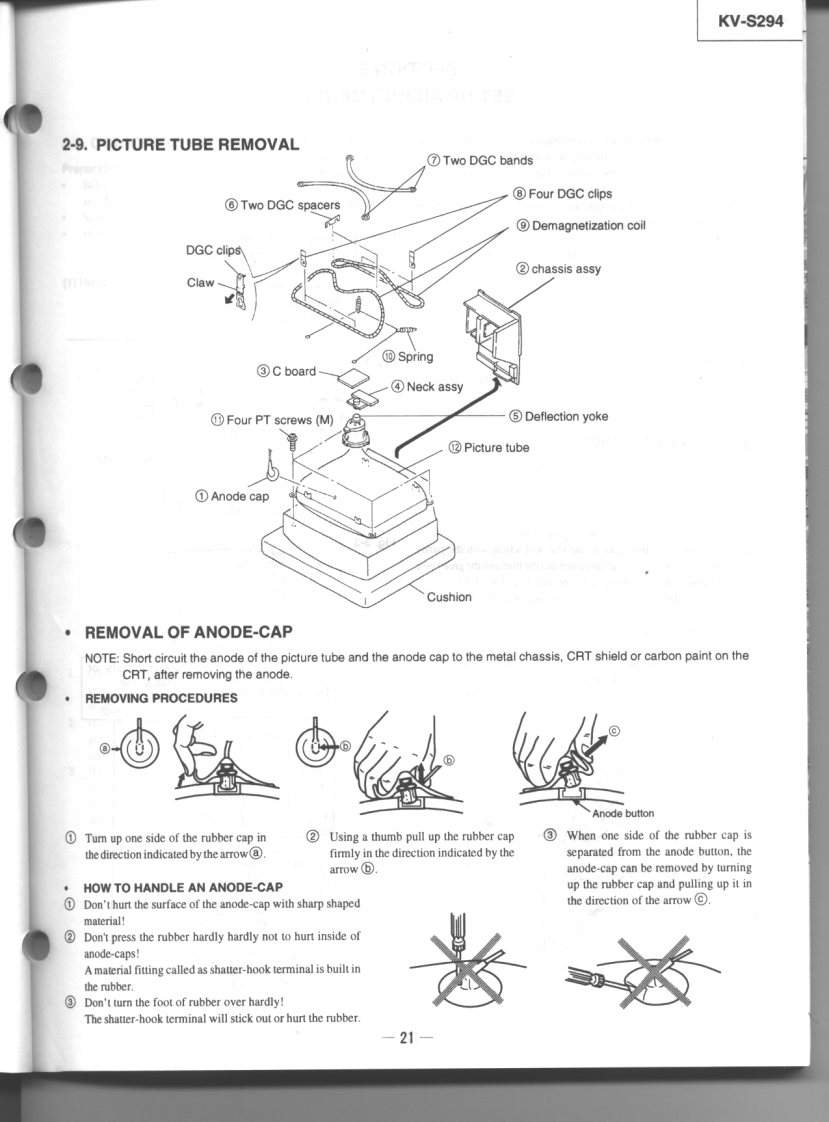

KV-S2942-9.PICTURE TUBE REMOVAL⑦Two DGC bands⑧Four DGC clips⑥Two DGC spacersDemagnetization coilDGC clips②chassis assyClaw1Spring③C board④Neck assy①Four PT screws(M⑤Deflection yoke1Picture tube①Anode capCushionREMOVAL OF ANODE-CAPNOTE:Short circuit the anode of the picture tube and the anode cap to the metal chassis,CRT shield or carbon paint on theCRT,after removing the anode.REMOVING PROCEDURESAnode buttonTum up one side of the rubber cap in2 Using a thumb pull up the rubber cap3 When one side of the rubber cap isthe direction indicated by the arrow (afirmly in the direction indicated by theseparated from the anode button,thearrow⑥anode-cap can be removed by turningHOW TO HANDLE AN ANODE-CAPup the rubber cap and pulling up it in1 Don't hurt the surface of the anode-cap with sharp shapedthe direction of the arrowmaterial!Don't press the rubber hardlyhardly not to hurt inside ofanode-caps！A material fitting called as shatter-hook terminal is built inthe rubber.米法Don't turn the foot of rubber over hardly!The shatter-hook terminal will stick out or hurt the rubber.
