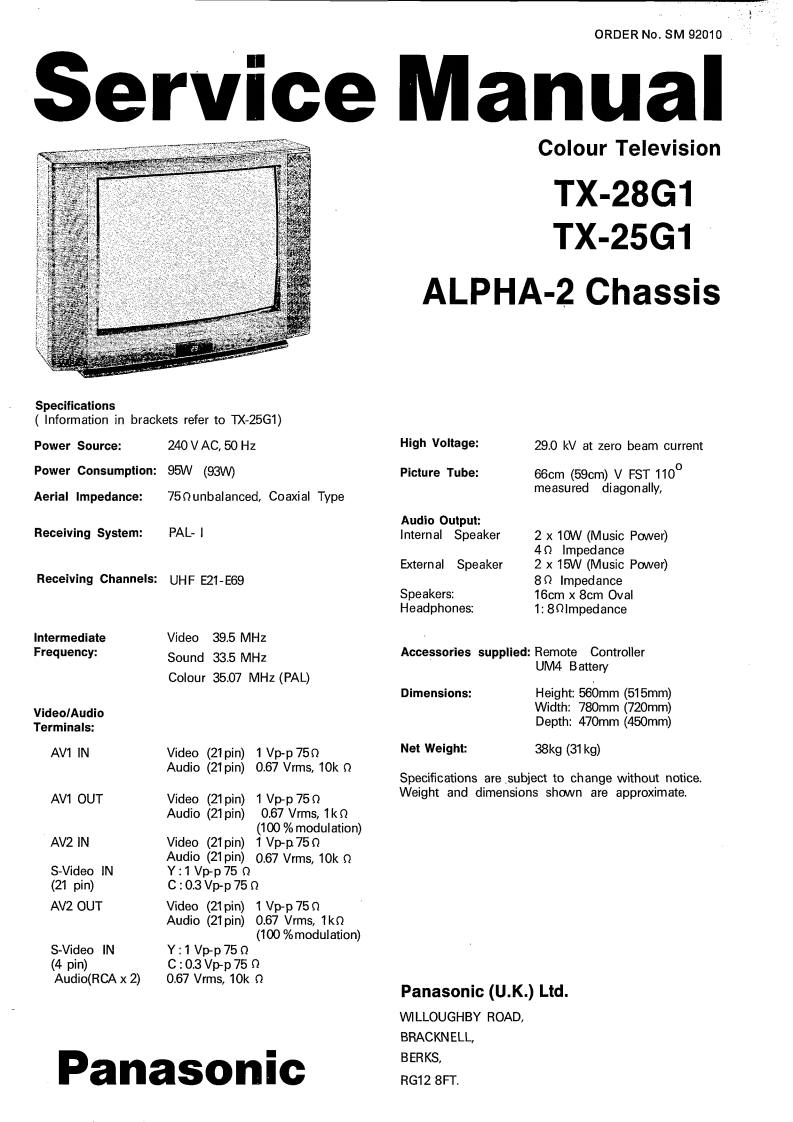

ORDER No.SM 92010Service ManualColour TelevisionTX-28G1TX-25G1ALPHA-2 ChassisSpecificationsInformation in brackets refer to TX-25G1)Power Source:240 V AC,50 HzHigh Voltage:29.0 kV at zero beam currentPower Consumption:95W(93WMPicture Tube:66cm(59cm)VFST110°Aerial Impedance:75Qunbalanced,Coaxial Typemeasured diagonally,Audio Output:Receiving System:PAL-IInternalSpeaker2 x 10W (Music Power)40 ImpedanceExternalSpeaker2 x 15W (Music Power)Receiving Channels:UHF E21-E698 ImpedanceSpeakers:16cm x 8cm OvalHeadphones:1:80ImpedanceIntermediateVideo 39.5 MHzFrequency:Sound 33.5 MHzAccessoriessupplied:RemoteControllerUM4 BatteryColour 35.07 MHz (PAL)Dimensions:Height:560mm(515mm)Video/AudioWidth:780mm (720mm)Terminals:Depth:470mm (450mm)AV1 INVideo (21pin)1 Vp-p 750Net Weight:38kg(31kg)Audio (21 pin)0.67 Vrms,10k QSpecifications are subject to change without notice.AV1 OUTVideo (21pin)1 Vp-p 750Weight and dimensions shown are approximate.Audio (21 pin)0.67Vms,1k(100 modulation)AV2 INVideo (21pin)1 Vp-p 750Audio (21 pin)0.67 Vrms,10kS-Video INY:1 Vp-p 75 Q(21 pin)C:0.3 Vp-p 75QAV2 OUTVideo (21 pin)1 Vp-p 750Audio (21pin)0.67 Vrms,1kn(100 %modulation)S-Video INY:1 Vp-p750(4 pin)C:0.3 Vp-p 75 QAudio(RCA x 2)0.67 Vrms,10kPanasonic (U.K.)Ltd.WILLOUGHBY ROAD,BRACKNELL,PanasonicBERKS,RG12 8FT.
