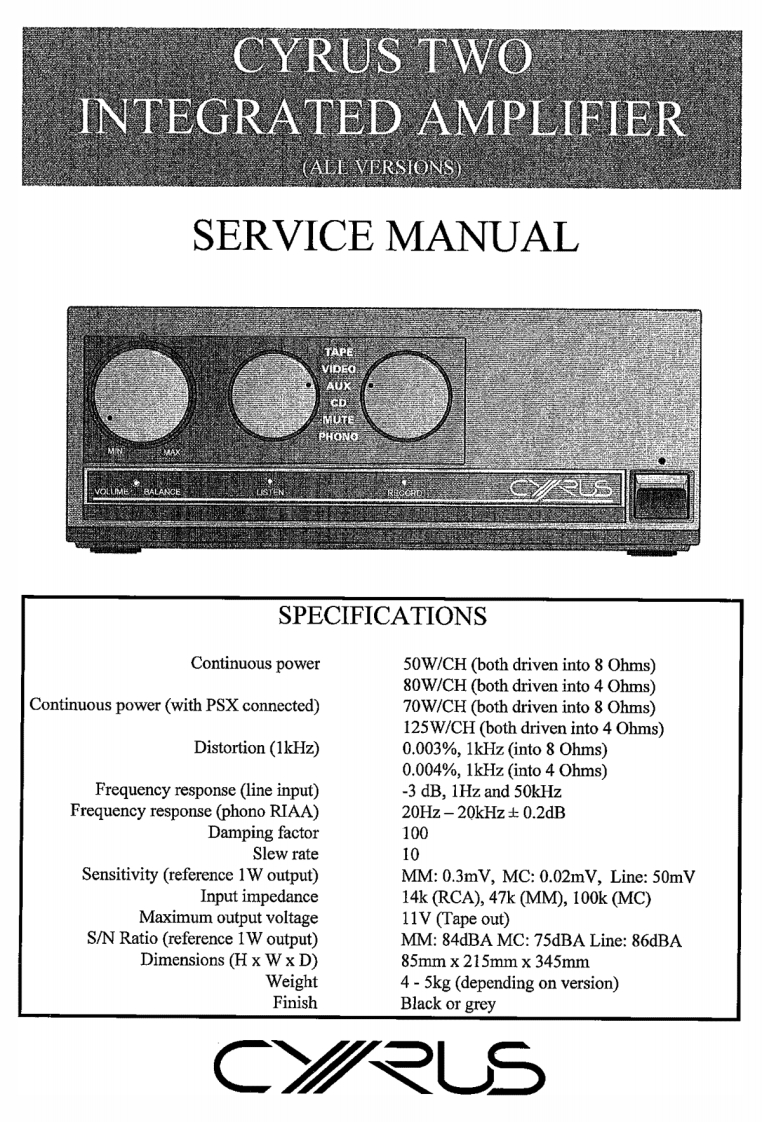

CYRUS TWOINTEGRATED AMPLIFIER(ALL VERSIONSSERVICE MANUALUTSPECIFICATIONSContinuous power50W/CH (both driven into 8 Ohms)80W/CH(both driven into 4 Ohms)Continuous power(with PSX connected)70W/CH(both driven into 8 Ohms)125W/CH (both driven into 4 Ohms)Distortion(1kHz)0.003%,1kHz (into 8 Ohms)0.004%,1kHz (into 4 Ohms)Frequency response(line input)-3 dB,1Hz and 50kHzFrequency response(phono RIAA)20Hz-20kHz±0.2dBDamping factor100Slew rate10Sensitivity (reference 1W output)MM:0.3mV,MC:0.02mV,Line:50mVInput impedance14k (RCA),47k (MM),100k (MC)Maximum output voltage11V (Tape out)S/N Ratio (reference 1W output)MM:84dBA MC:75dBA Line:86dBADimensions (H x Wx D)85mm x 215mm x 345mmWeight4-5kg(depending on version)FinishBlack or grey
