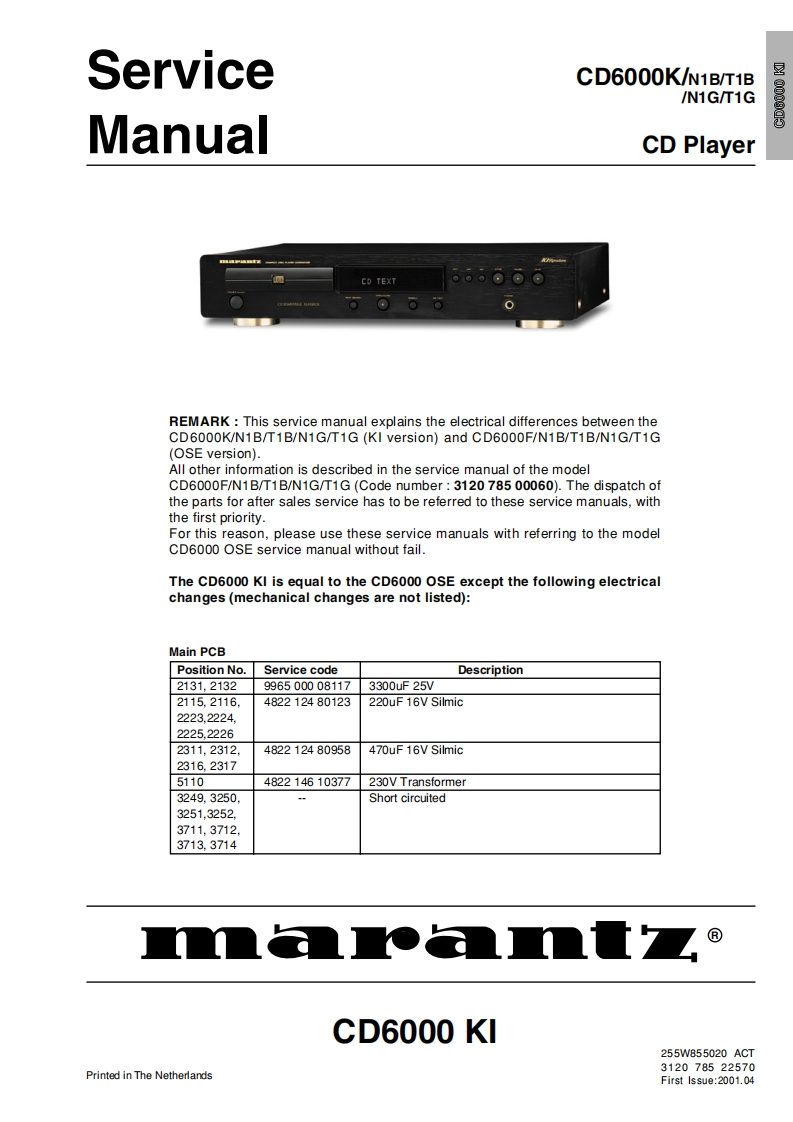

ServiceCD6000K/N1B/T1B/N1G/T1GManualCD PlayerED TEXTREMARK:This service manual explains the electrical differences between theCD6000K/N1B/T1B/N1G/T1G(KI version)and CD6000F/N1B/T1B/N1G/T1G(OSE version).All other information is described in the service manual of the modelCD6000F/N1B/T1B/N1G/T1G(Code number:3120 785 00060).The dispatch ofthe parts for after sales service has to be referred to these service manuals,withthe first priority.For this reason,please use these service manuals with referring to the modelCD6000 OSE service manual without fail.The CD6000 KI is equal to the CD6000 OSE except the following electricalchanges(mechanical changes are not listed):Main PCBPosition No.Service codeDescription2131,21329965000081173300uF25V2115.2116.482212480123220uF 16V Silmic2223.22242225.22262311,2312,482212480958470uF 16V Silmic2316,231751104822 146 10377 230V Transformer3249.3250.Short circuited3251,3252,3711.37123713.3714⑧CD6000 KI255W855020ACT312078522570Printed in The NetherlandsFirst Issue:2001.04
