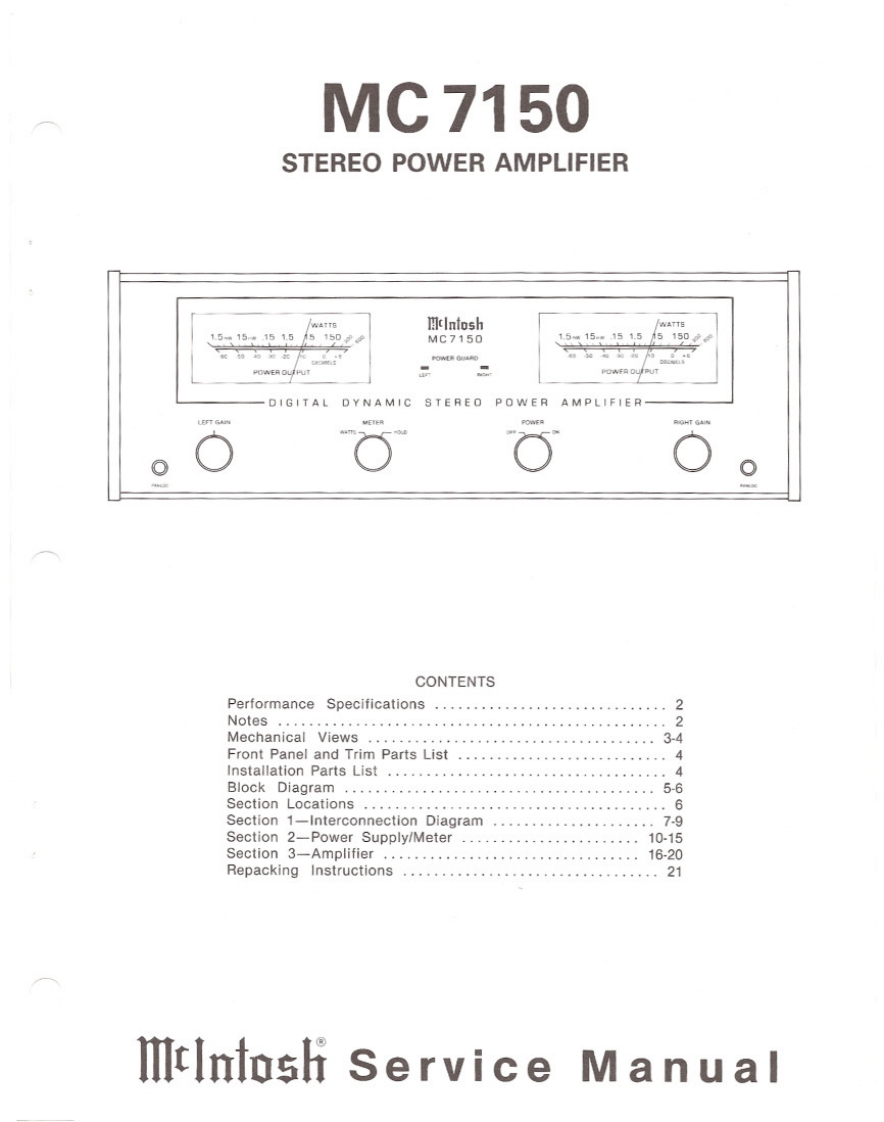

MC7150STEREO POWER AMPLIFIERIcIntoshWATTS1515=151.5151500MC71501.5m15.151.5A5150POWERDIGITAL DYNAMIC STEREO POWER AMPLIFIERLEFT GAINRGHT GAINCONTENTSPerformanceSpecifications..............................2Notes.....Mechanical Views3-4Front Panel and Trim Parts List4Installation Parts List...…Block Diagram....,…5-6Section Locations ......................................Section 1-Interconnection Diagram ....................7-9Section2-Power Supply/Meter....-..·-····10-15Section 3-Amplifier ................................16-20Repacking Instructions.................................21ItInlosh service Manual
