pioneer_ct-339_s310_s609r_service维修电器原理图

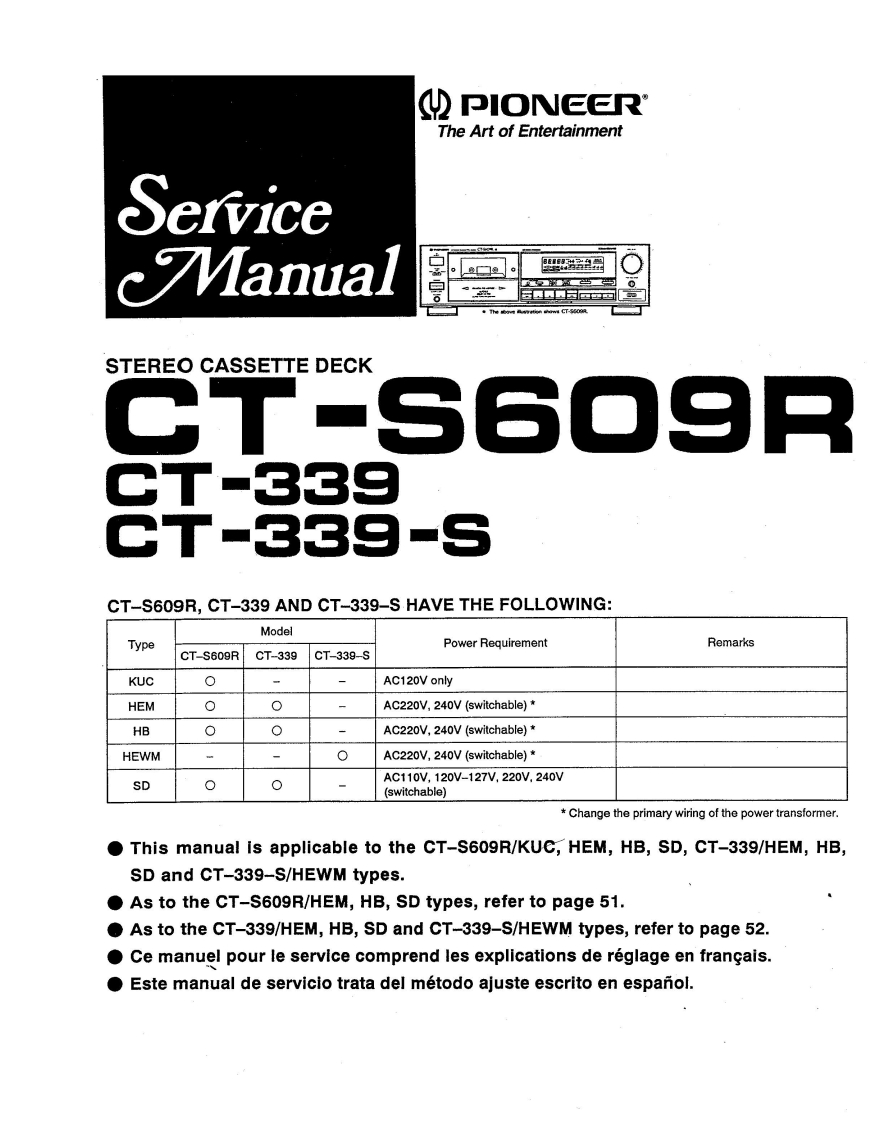

2PIONEERThe Art of EntertainmentServicec Manual皇置当与园四回CT-9600LSTEREO CASSETTE DECKCT-S609RGT-339T-339-SCT-S609R,CT-339 AND CT-339-S HAVE THE FOLLOWING:ModelTypePower RequirementRemarksCT-S609RCT-339CT-339-SKUC0AC120V onlyHEM00AC220V,240V (switchable)*HB00AC220V,240V(switchable)*HEWMOAC220V,240V (switchable)*SD00AC110V,120V-127V,220V,240V(switchable)*Change the primary wiring of the power transformer.O This manual is applicable to the CT-S609R/KUC,HEM,HB,SD,CT-339/HEM,HB,SD and CT-339-S/HEWM types.As to the CT-S609R/HEM,HB,SD types,refer to page 51.As to the CT-339/HEM,HB,SD and CT-339-S/HEWM types,refer to page 52.OCe manuel pour le service comprend les explications de reglage en francais.OEste manual de servicio trata del metodo ajuste escrito en espanol.
